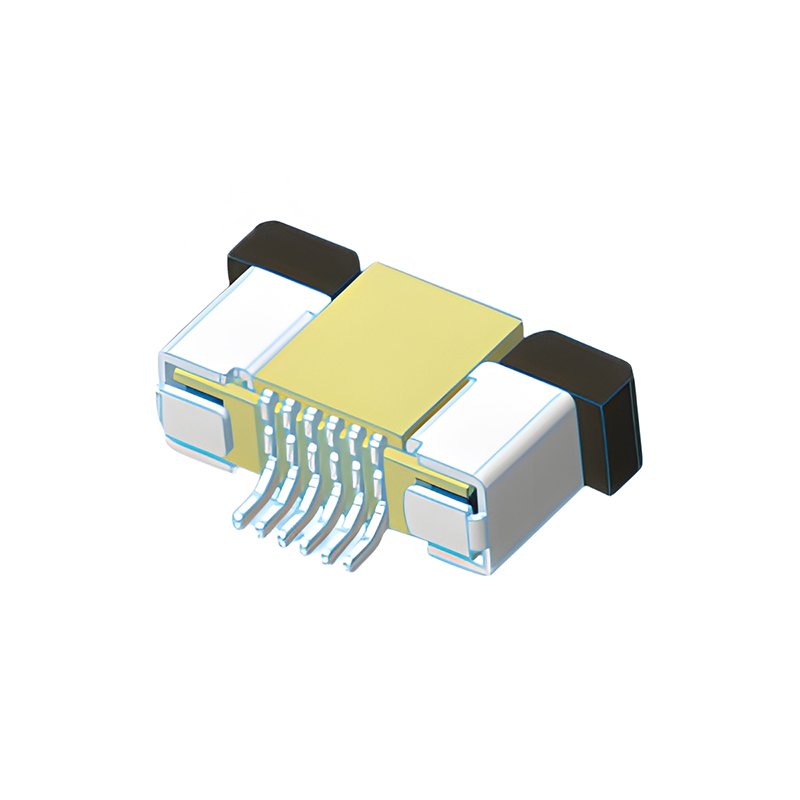

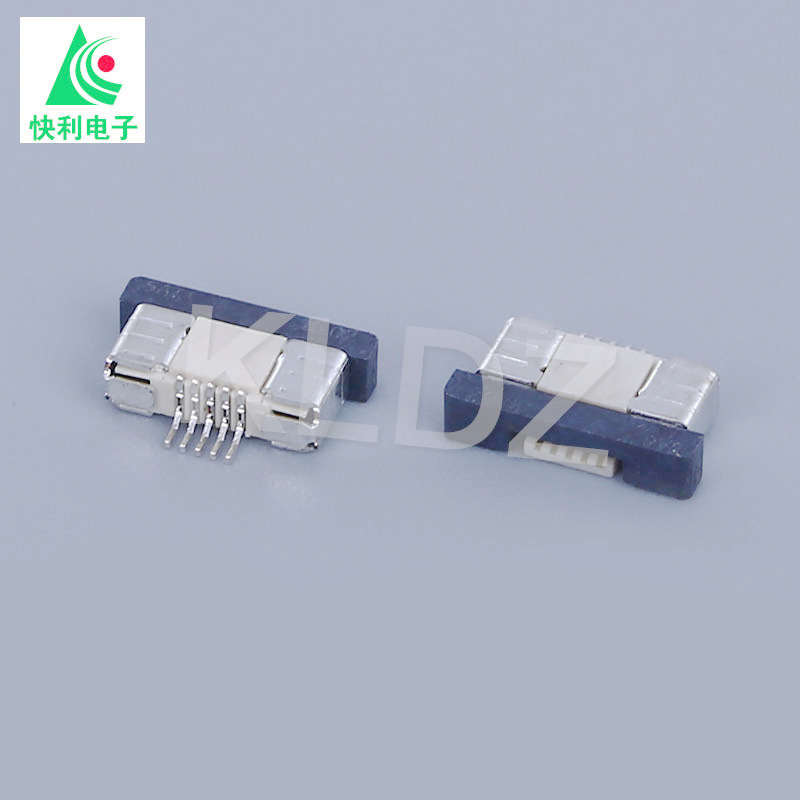

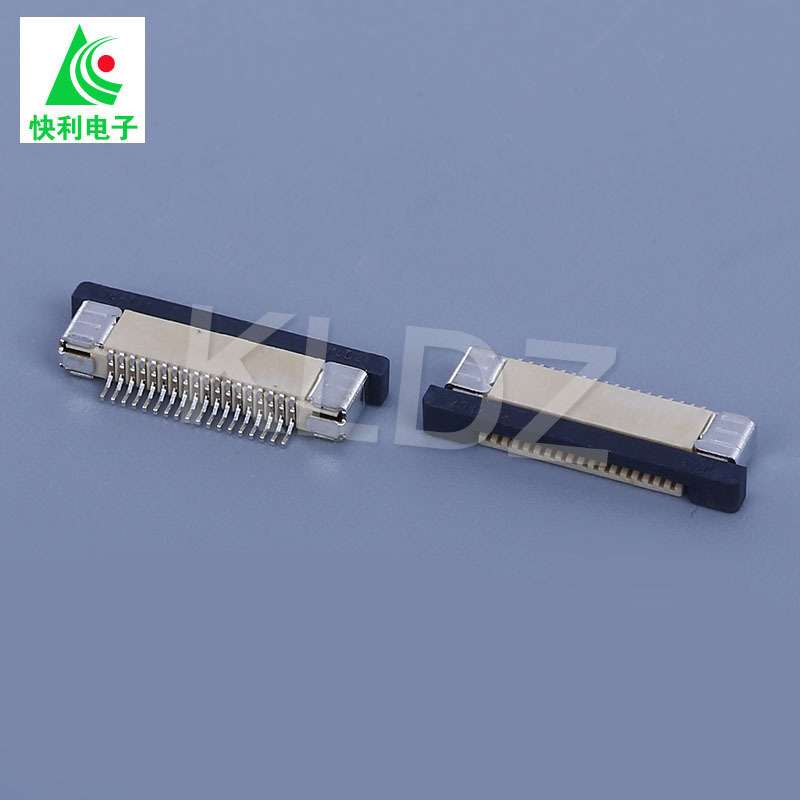

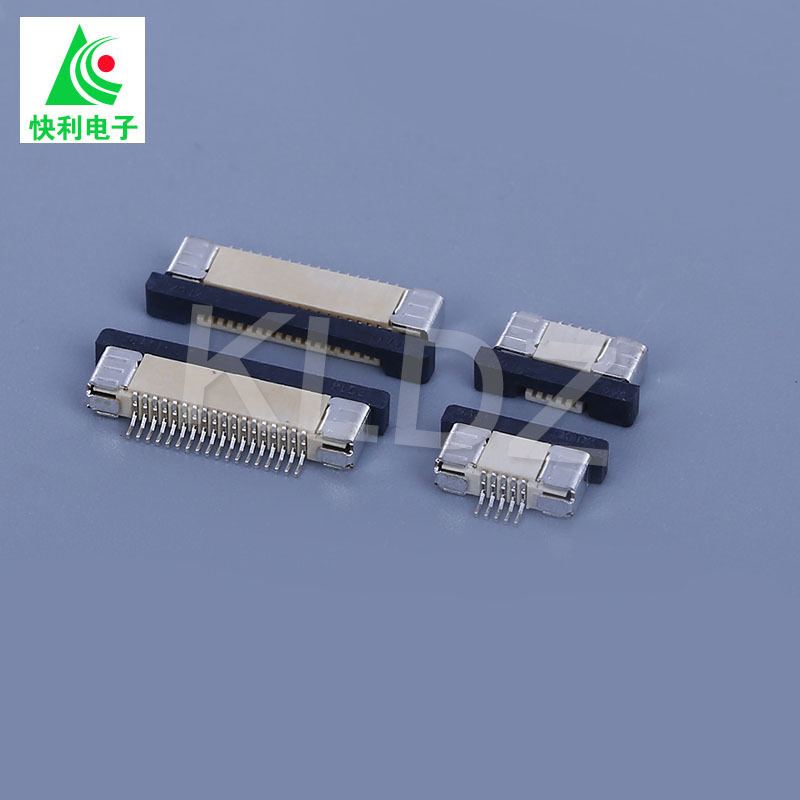

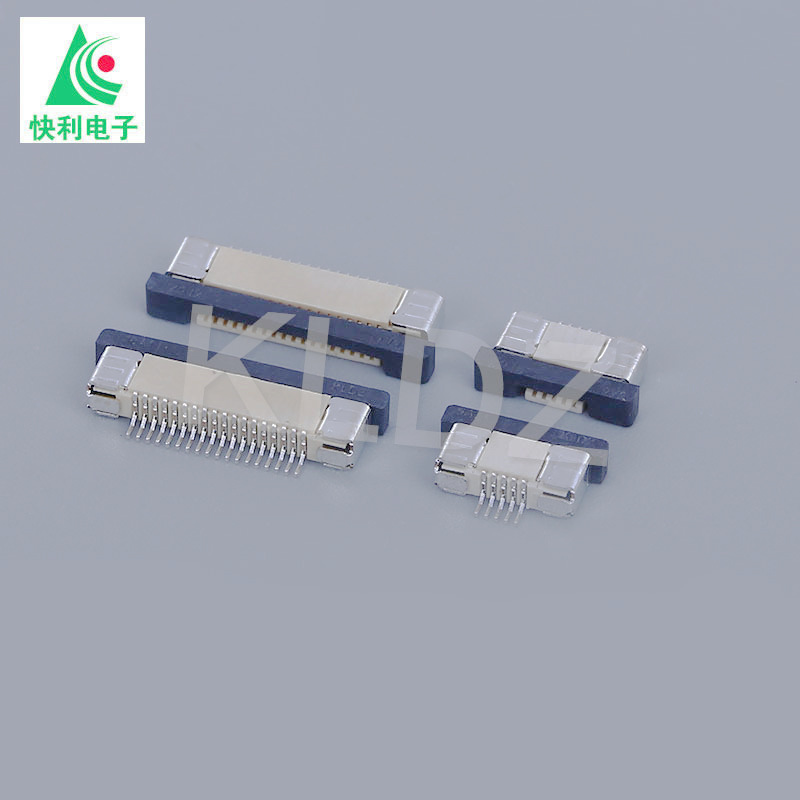

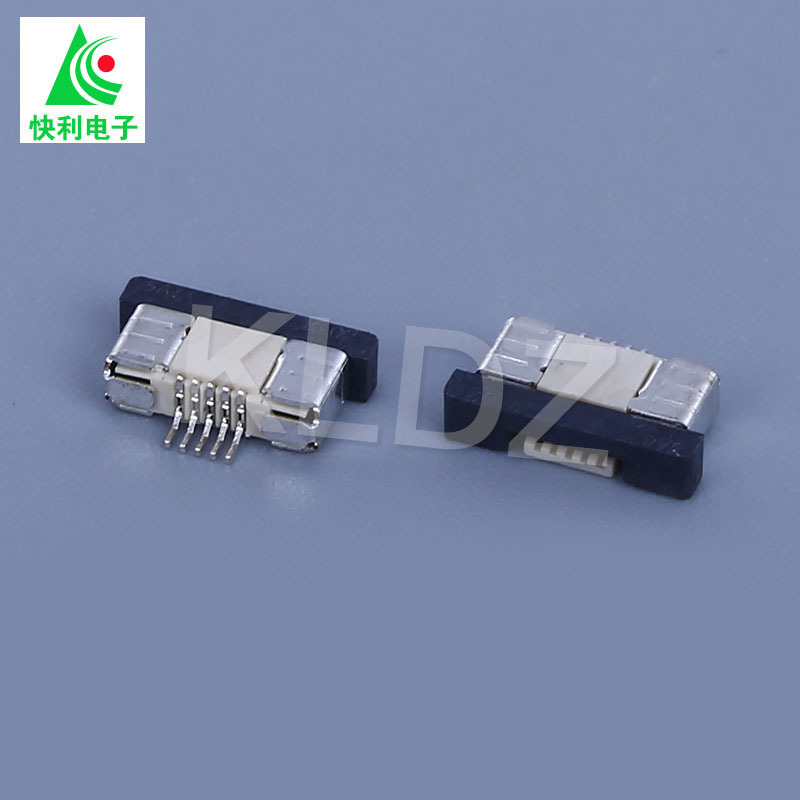

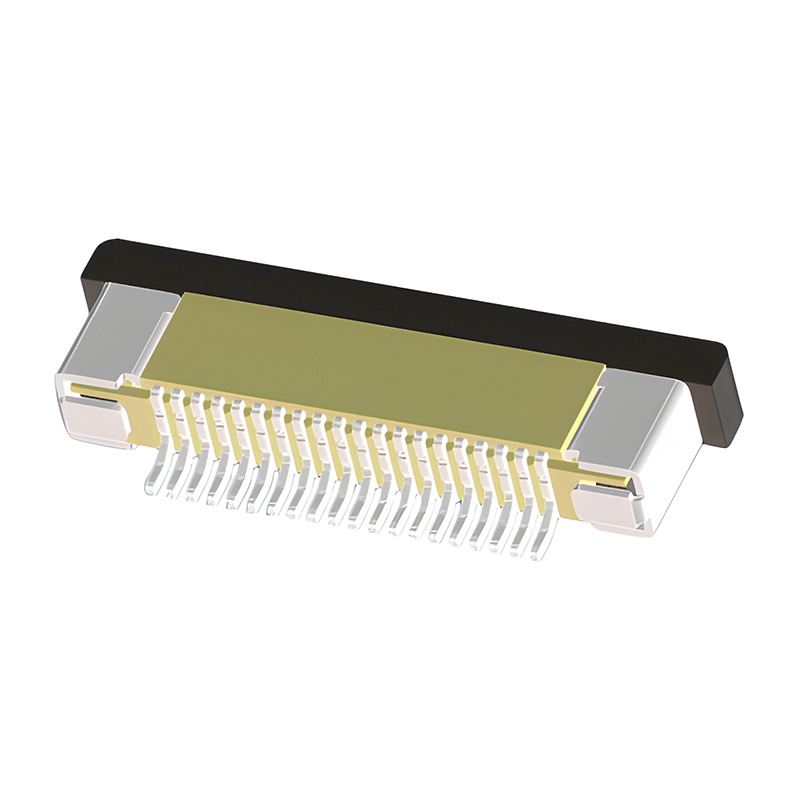

Push-Pull Vertical 4-80Pin H2.0mm Flat Ribbon Cable FPC Connector

The 0.5mm Pitch Push-Pull Vertical FPC Connector is a compact and reliable interconnect solution designed for use with flat ribbon cables in high-density PCB applications. With a height of just 2.0mm, this vertical mount connector offers a space-saving design without compromising on performance. It is fully compatible with Molex 52435 and TE Connectivity 4-1734839-0 series, making it a drop-in replacement for existing designs requiring similar specifications.

Key Features:

The 0.5mm pitch allows for a high pin count within a small footprint, supporting compact device designs where board space is limited. Ideal for connecting FPCs and ribbon cables to vertical board layouts.

A built-in push-pull locking system ensures quick, tool-free cable insertion and removal while maintaining a secure and stable connection during use. This mechanism improves assembly efficiency and reliability.

The vertical configuration is suited for PCBs that require upward-facing cable connections, enabling streamlined internal layouts and improved space management within enclosures.

Available in 4 to 80 pin versions, this connector meets a wide range of design needs, from simple control signals to multi-line high-speed data applications.

Designed to match the specifications of Molex 52435 and TE 4-1734839-0 connectors, this model allows easy integration into existing systems, reducing design time and ensuring consistent performance.

This 0.5mm pitch vertical FPC connector offers a robust, low-profile, and efficient interface solution for engineers working on modern compact electronics, such as tablets, portable instruments, and embedded systems.

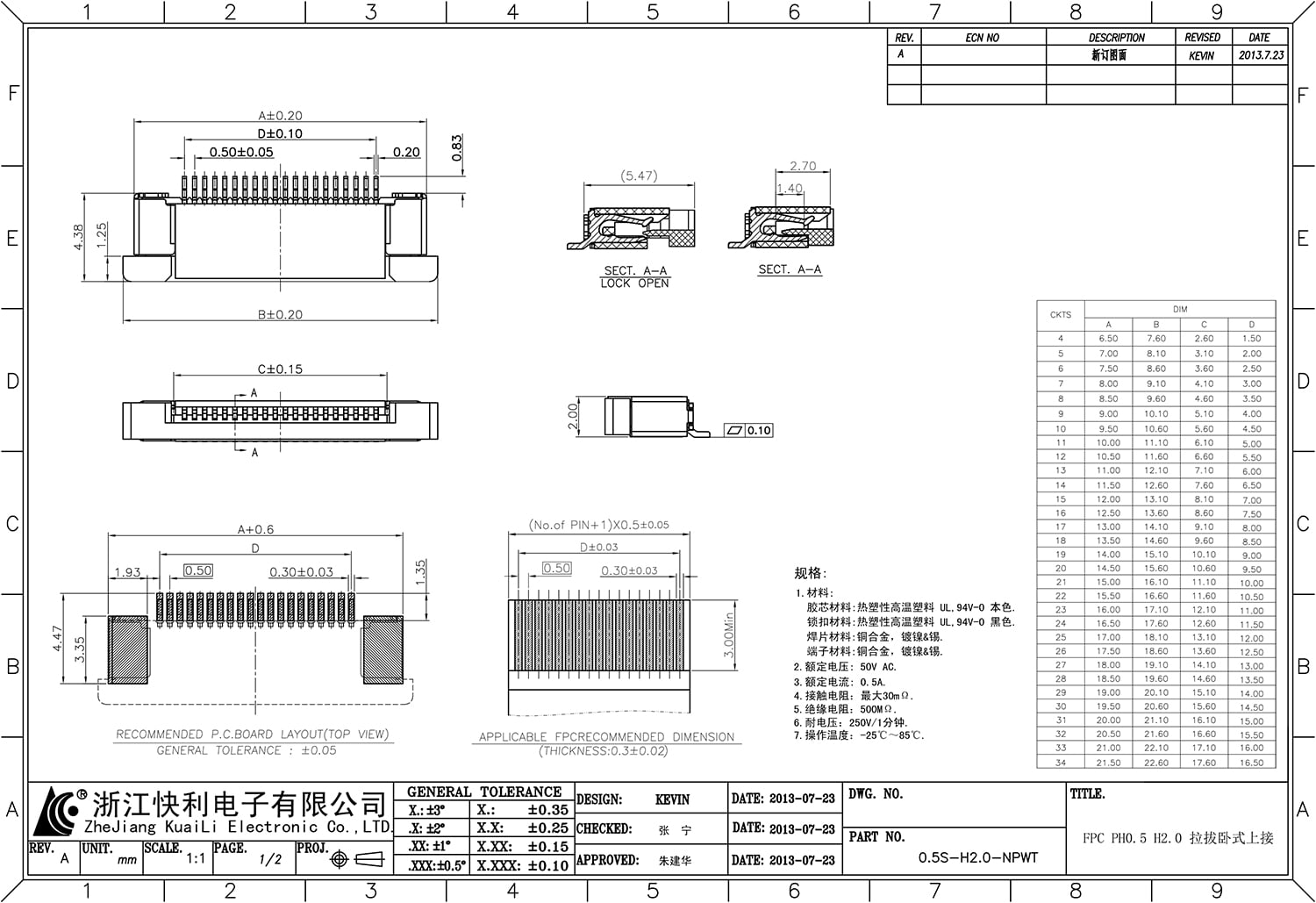

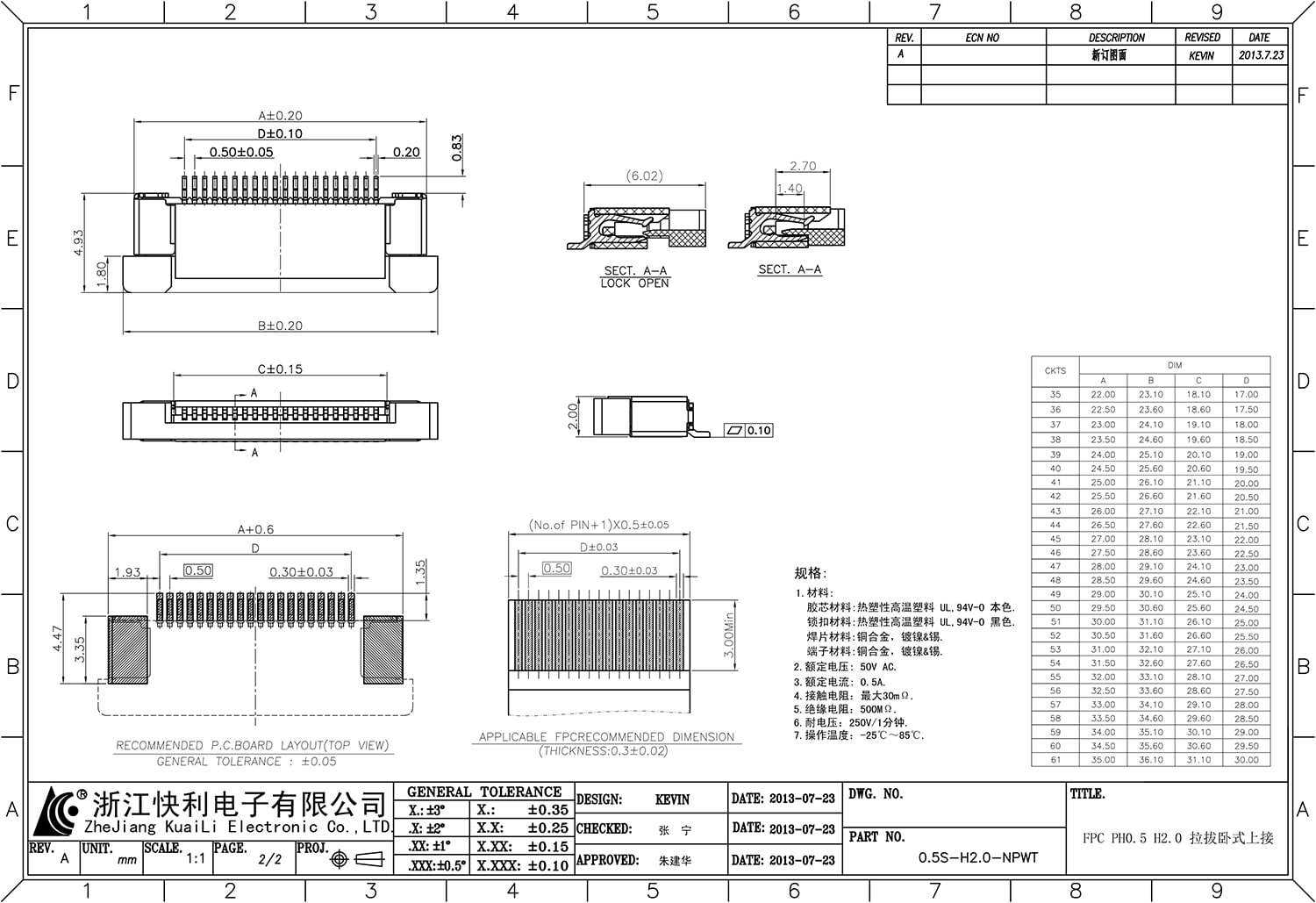

Specifications:

Basic Info.

Production Equipment

Specification:
