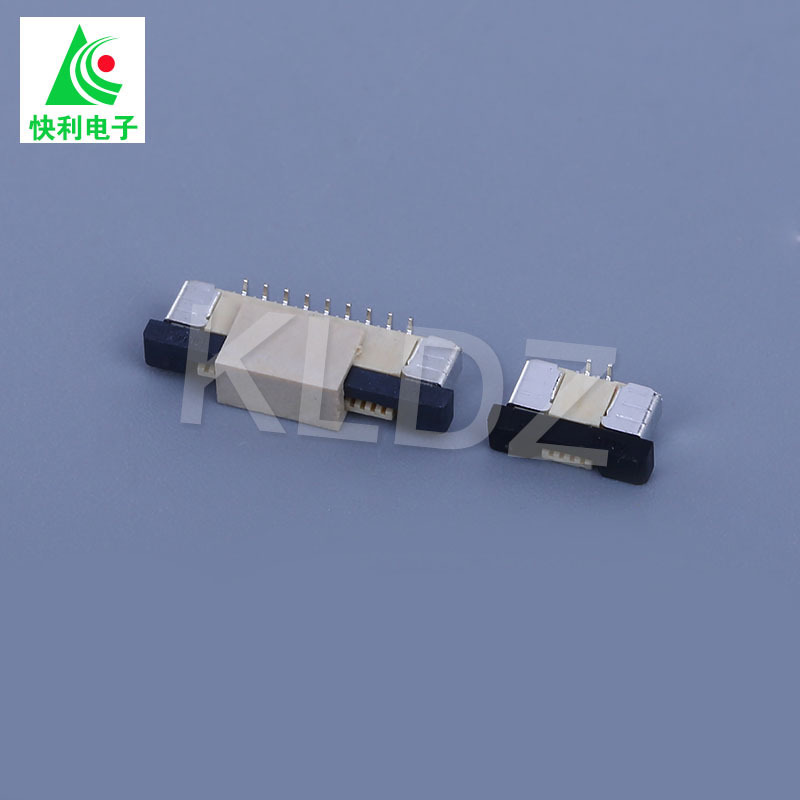

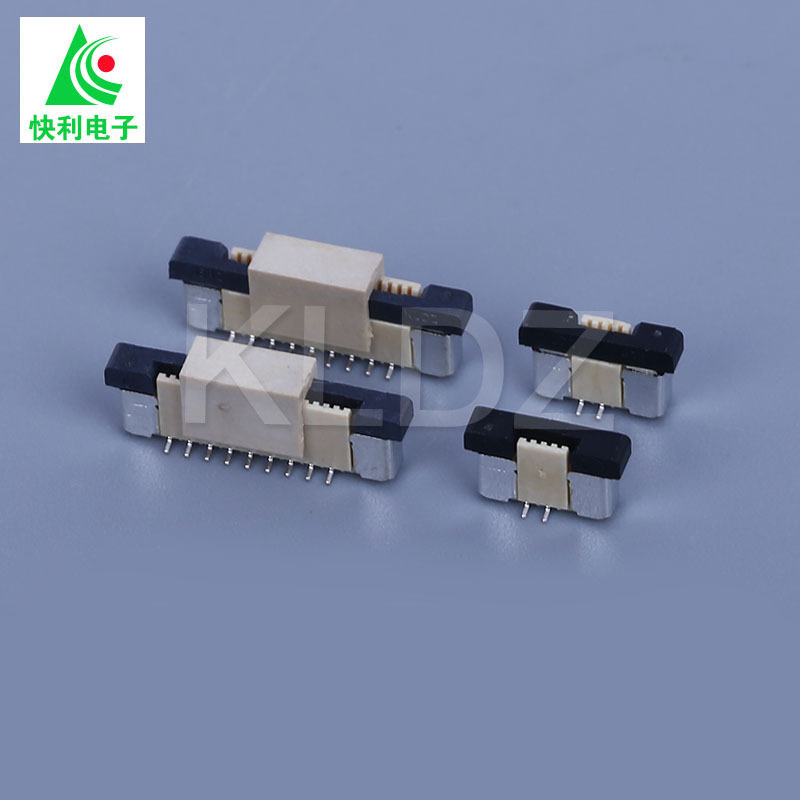

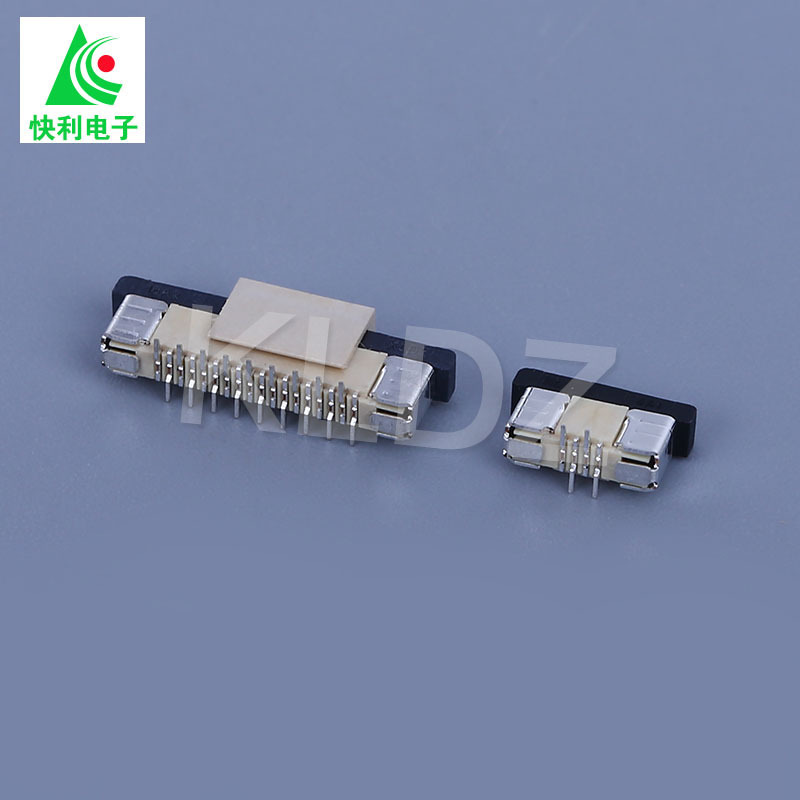

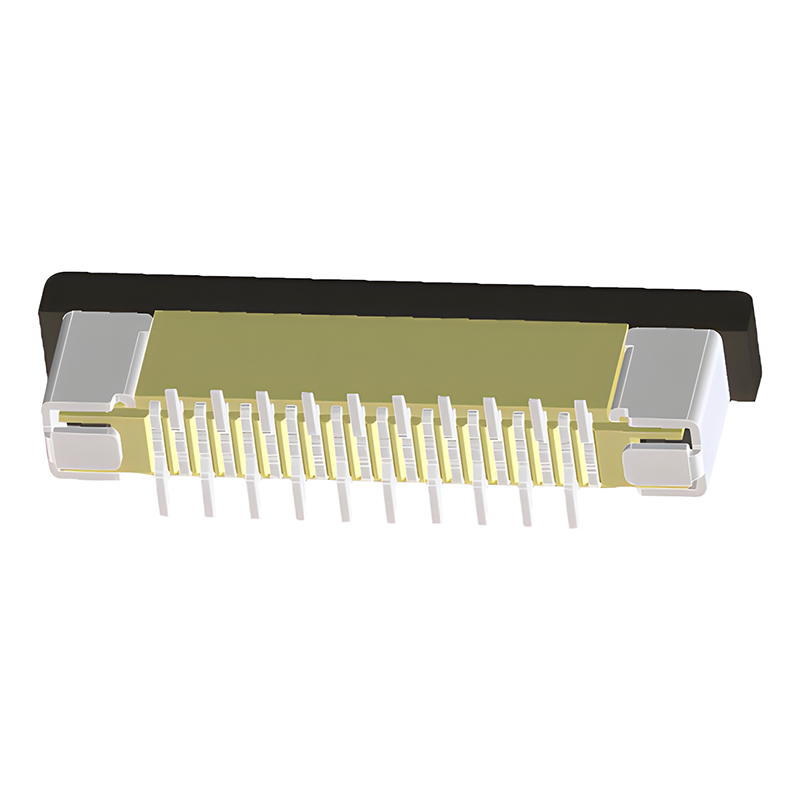

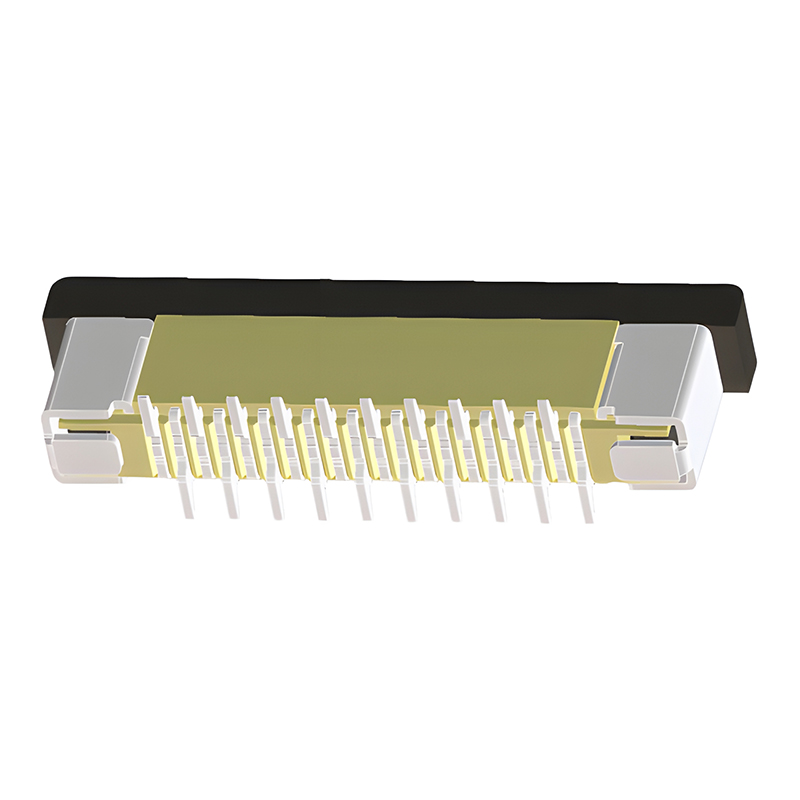

Push-Pull Lock 4-80Pin Flat Cable H2.0mm Height for High-Density PCB

The 0.5mm Pitch FPC Connector with Push-Pull Lock and 4–80 pin configuration is designed for high-density printed circuit boards (PCBs) where compact, reliable connections are essential. With a height of just 2.0mm, this connector supports flat flexible cables (FFC) and flexible printed circuits (FPC), making it an ideal choice for space-constrained and performance-critical electronic devices.

Key Features:

The 0.5mm pitch ensures a dense arrangement of contact points, allowing more signal lines to be connected in a limited space, making it suitable for miniaturized electronic assemblies.

Equipped with a user-friendly push-pull locking system, this connector provides secure mating and easy disconnection without requiring additional tools. This enhances durability and simplifies assembly in production environments.

Available in multiple configurations from 4 to 80 pins, the connector can accommodate a wide range of design requirements, from simple signal transmission to complex data handling.

The H2.0mm low-profile design supports high-density PCB layouts, making it well-suited for portable devices, wearables, embedded systems, and compact industrial equipment.

The connector is built for stable electrical performance, supporting high-speed signals while small crosstalk and signal loss.

This FPC connector offers a space-saving, high-performance solution for modern electronics requiring compact, dependable connections. Its ease of use, versatile configuration, and compatibility with flexible flat cables make it a choice for designers and engineers working with advanced, densely packed PCBs.

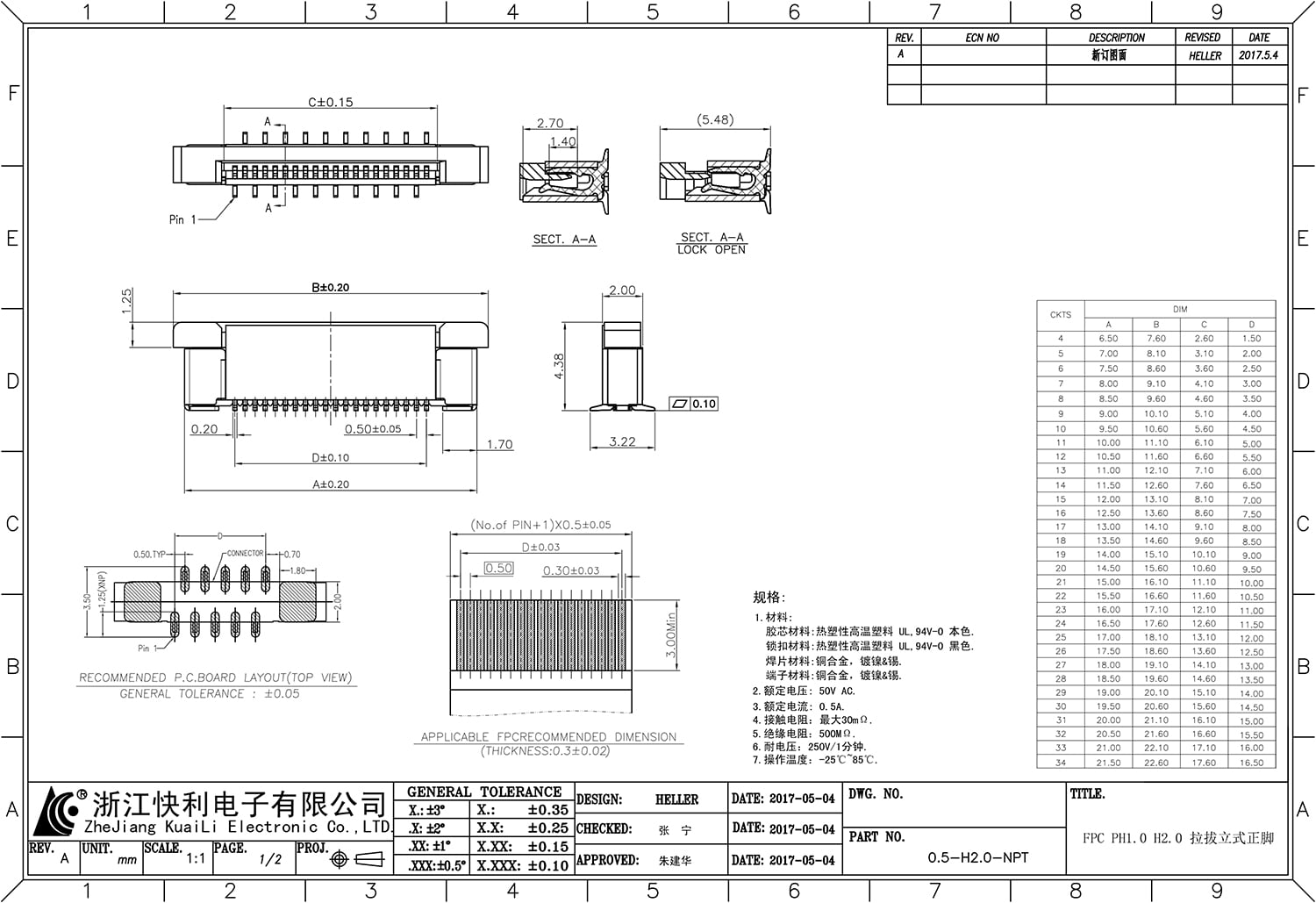

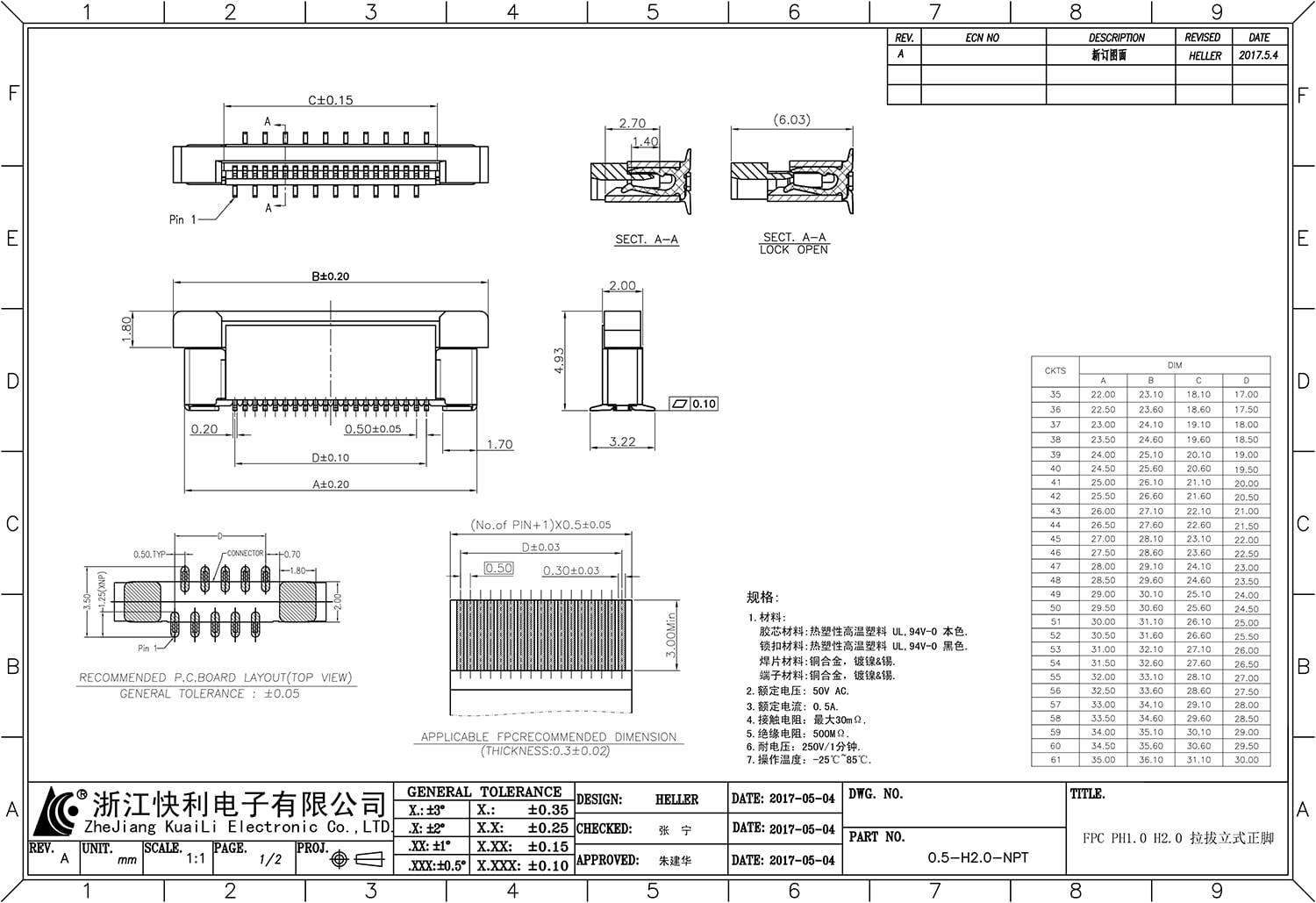

Specifications:

Basic Info.

Production Equipment

Specification:
