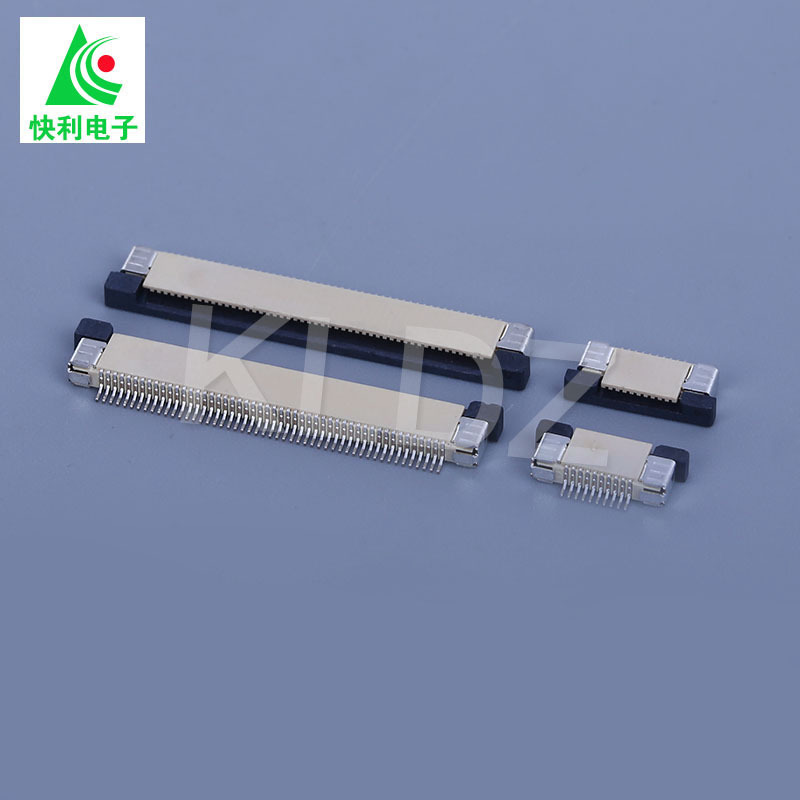

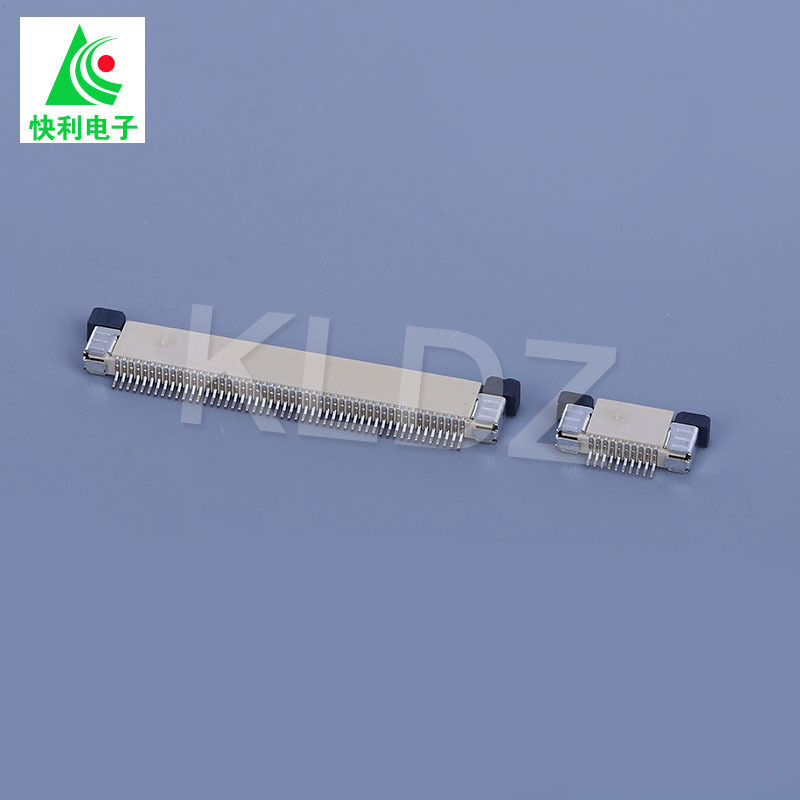

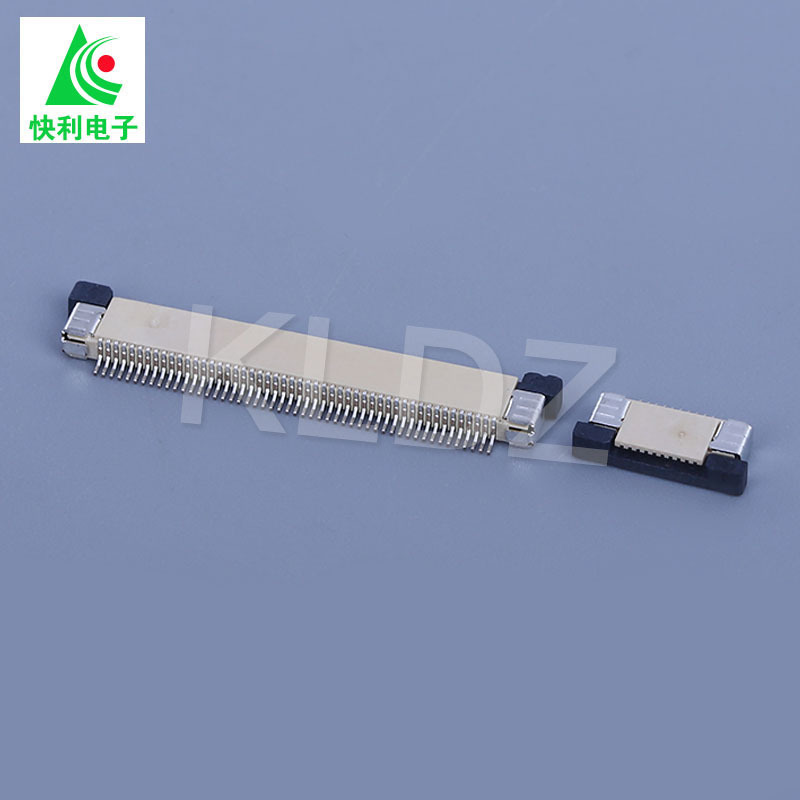

4- 80P H2.0 Pull-Latch High-Speed Wire Connector for Automotive Applications

The 4-80P 0.5mm High-Speed Wire Connector featuring an H2.0 pull-latch design is engineered to meet the demanding requirements of modern automotive applications, offering both reliable performance and ease of assembly. This connector is built to support high-speed signal transmission while maintaining a compact form factor, making it suitable for space-constrained environments found in today's vehicles.

Designed with a 0.5mm pitch, the connector enables efficient routing of multiple signals, supporting up to 80 positions for high-density wire-to-board or wire-to-wire connectivity. This makes it ideal for advanced automotive electronics, including infotainment systems, ADAS (Advanced Driver Assistance Systems), and control units.

One of the key features of this connector is the H2.0 pull-latch mechanism, which ensures a secure locking interface with quick-release capability. The design allows for tool-free mating and unmating, improving installation efficiency and reducing maintenance time. Its robust latch structure also enhances vibration resistance, which is critical in automotive environments.

The housing and contact materials are chosen for good thermal and electrical performance, ensuring durability in harsh operating conditions, including high temperatures and moisture-prone areas. The connector complies with automotive-grade standards, offering reliable signal integrity and mechanical stability over extended service life.

The 4-80P 0.5mm High-Speed Wire Connector with H2.0 Pull-Latch combines compact design, high-density connectivity, and rugged reliability. It is well-suited for next-generation automotive systems requiring high-speed communication and robust mechanical properties.

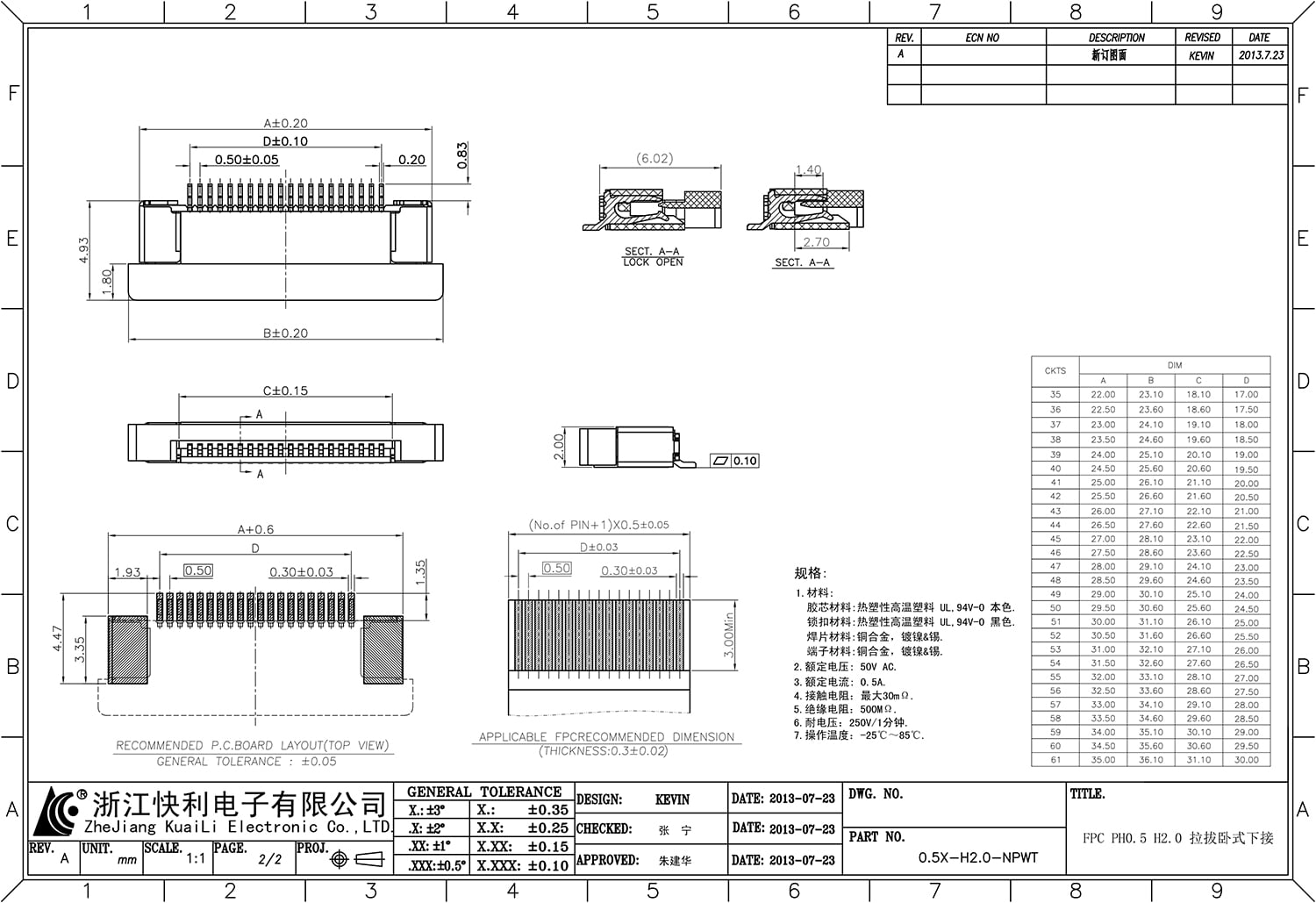

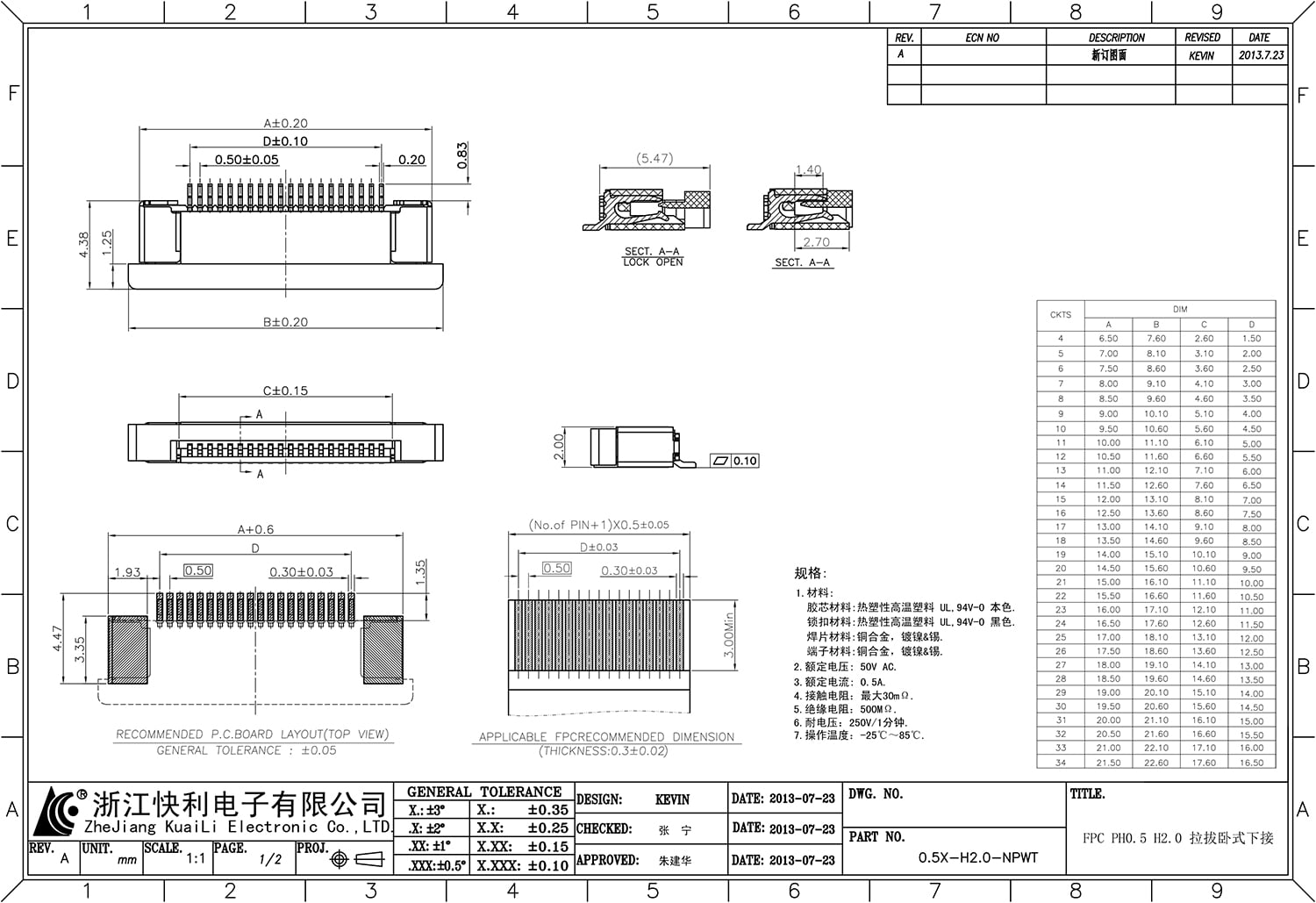

Specifications:

Basic Info.

Production Equipment

Specification:
