Custom PZ2.54 2.5mm Pitch Dual-Row SMT Pin Header 2×6P JST-Style High-Density Connector

View Products PDF Download
  • PZ2.54 2.5mm Pitch Dual-Row SMT Pin Header 2×6P JST-Style High-Density Connector
  • PZ2.54 2.5mm Pitch Dual-Row SMT Pin Header 2×6P JST-Style High-Density Connector
  • PZ2.54 2.5mm Pitch Dual-Row SMT Pin Header 2×6P JST-Style High-Density Connector
  • PZ2.54 2.5mm Pitch Dual-Row SMT Pin Header 2×6P JST-Style High-Density Connector
  • PZ2.54 2.5mm Pitch Dual-Row SMT Pin Header 2×6P JST-Style High-Density Connector
  • PZ2.54 2.5mm Pitch Dual-Row SMT Pin Header 2×6P JST-Style High-Density Connector
  • PZ2.54 2.5mm Pitch Dual-Row SMT Pin Header 2×6P JST-Style High-Density Connector
  • PZ2.54 2.5mm Pitch Dual-Row SMT Pin Header 2×6P JST-Style High-Density Connector
  • PZ2.54 2.5mm Pitch Dual-Row SMT Pin Header 2×6P JST-Style High-Density Connector
  • PZ2.54 2.5mm Pitch Dual-Row SMT Pin Header 2×6P JST-Style High-Density Connector

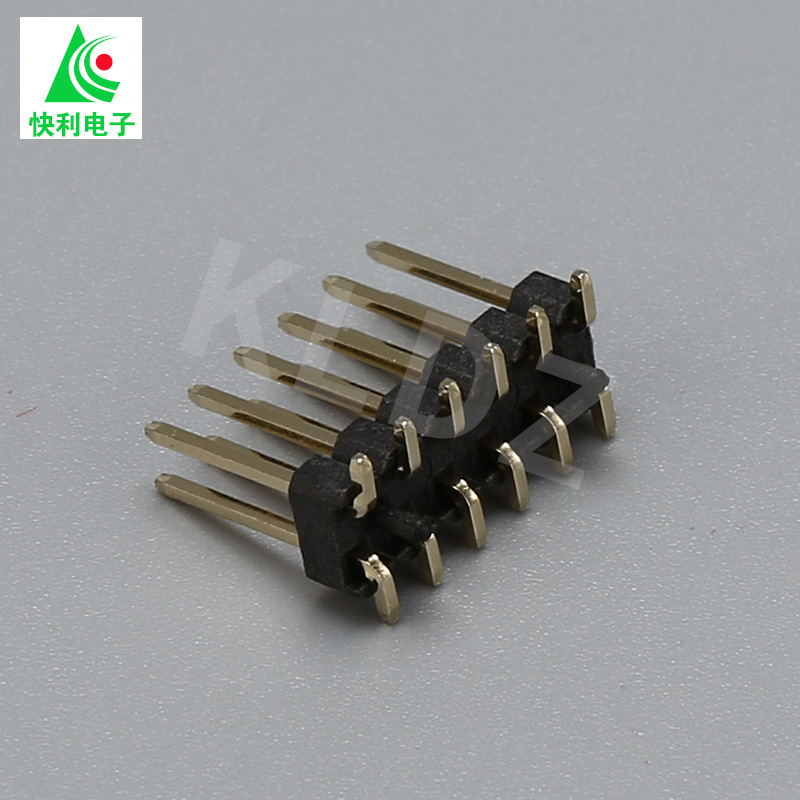

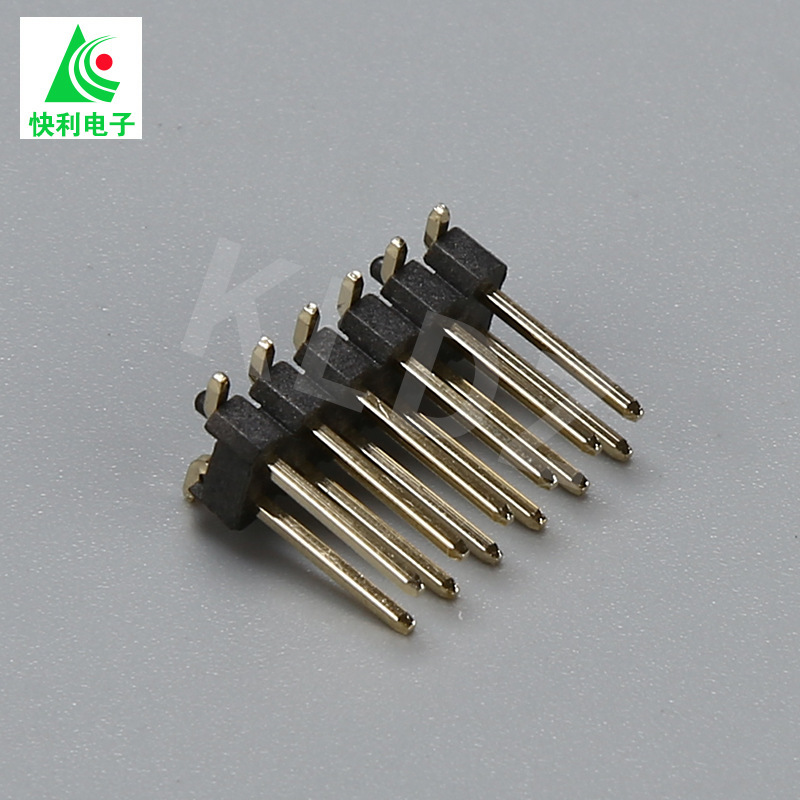

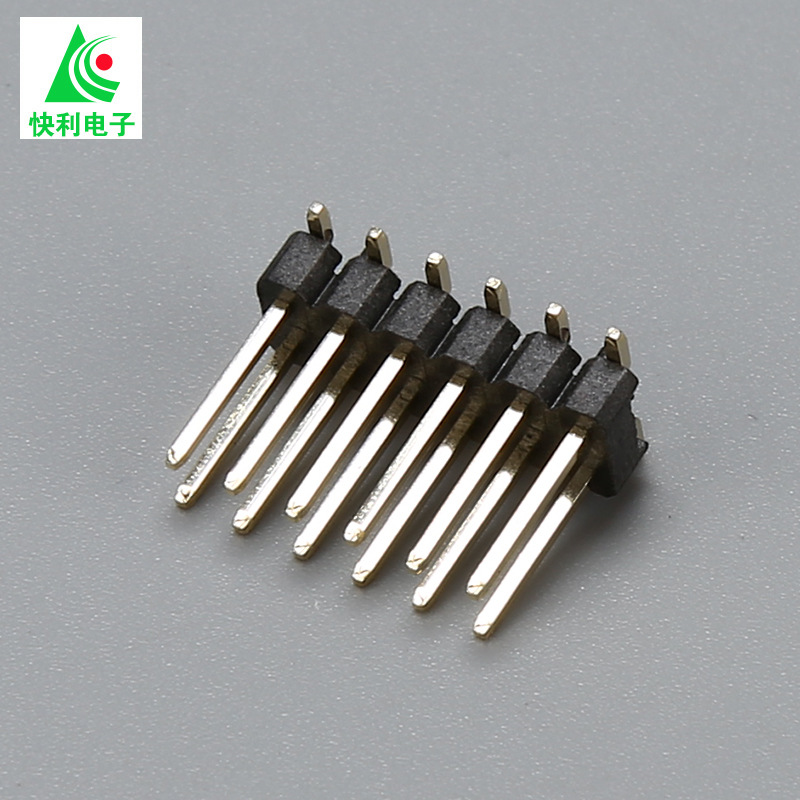

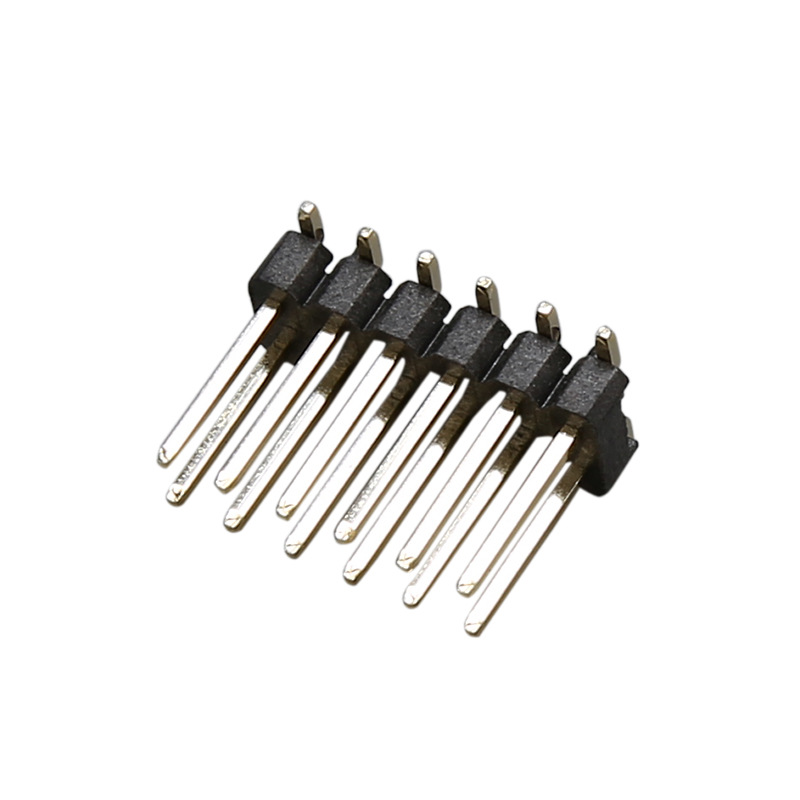

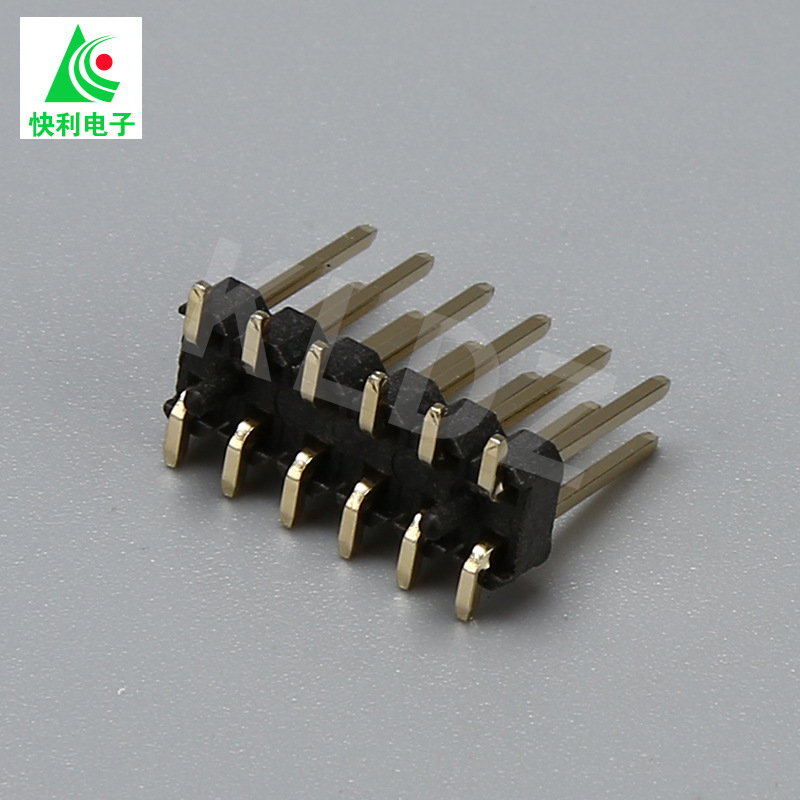

PZ2.54 2.5mm Pitch Dual-Row SMT Pin Header 2×6P JST-Style High-Density Connector

Back List

2×40 Dual Row 2.54mm Pitch PZ2.54 Right-Angle (L-Shaped) & Vertical Pin Headers

2×40 Dual Row 2.54mm Pitch PZ2.54 Right-Angle (L-Shaped) & Vertical Pin Headers
  • Product Description

+86 190 3206 8396

rainy@yqkl.com

The PZ2.54 2.5mm pitch dual-row SMT (Surface Mount Technology) pin header is a high-density connector designed for industrial PCBs (Printed Circuit Boards) and consumer electronics. Featuring a 2×6 position configuration, this JST-style connector offers a compact, reliable for applications that require secure and efficient wire-to-board connections in space-constrained environments.

The 2.5mm pitch ensures a tight yet stable connection, making it suitable for high-density PCB designs where space optimization is critical. The dual-row design allows for up to 12 positions, providing a compact method of connecting multiple circuits in a small footprint. This makes the PZ2.54 connector ideal for a range of applications, including industrial control systems, telecommunications, automotive electronics, and consumer devices.

One of the key benefits of this connector is its SMT design, which facilitates easy and efficient automated assembly for mass production. The SMT pin headers are designed for precise placement on the PCB, ensuring reliable soldering and a strong electrical connection. This design also reduces the overall height profile of the connector, allowing for integration into compact devices where traditional through-hole connectors may not fit.

The JST-style PZ2.54 connector is built to withstand the rigors of industrial environments, offering durability and resistance to mechanical stress and vibrations. This reliability is crucial for ensuring long-term performance, particularly in mission-critical applications such as industrial automation and consumer electronics.

The PZ2.54 2.5mm pitch dual-row SMT pin header is a high-density, versatile connector offering secure, space-efficient connections for industrial PCBs and consumer electronics. Its compact design, high reliability, and ease of use make it a good choice for applications requiring high-density wiring in tight spaces.

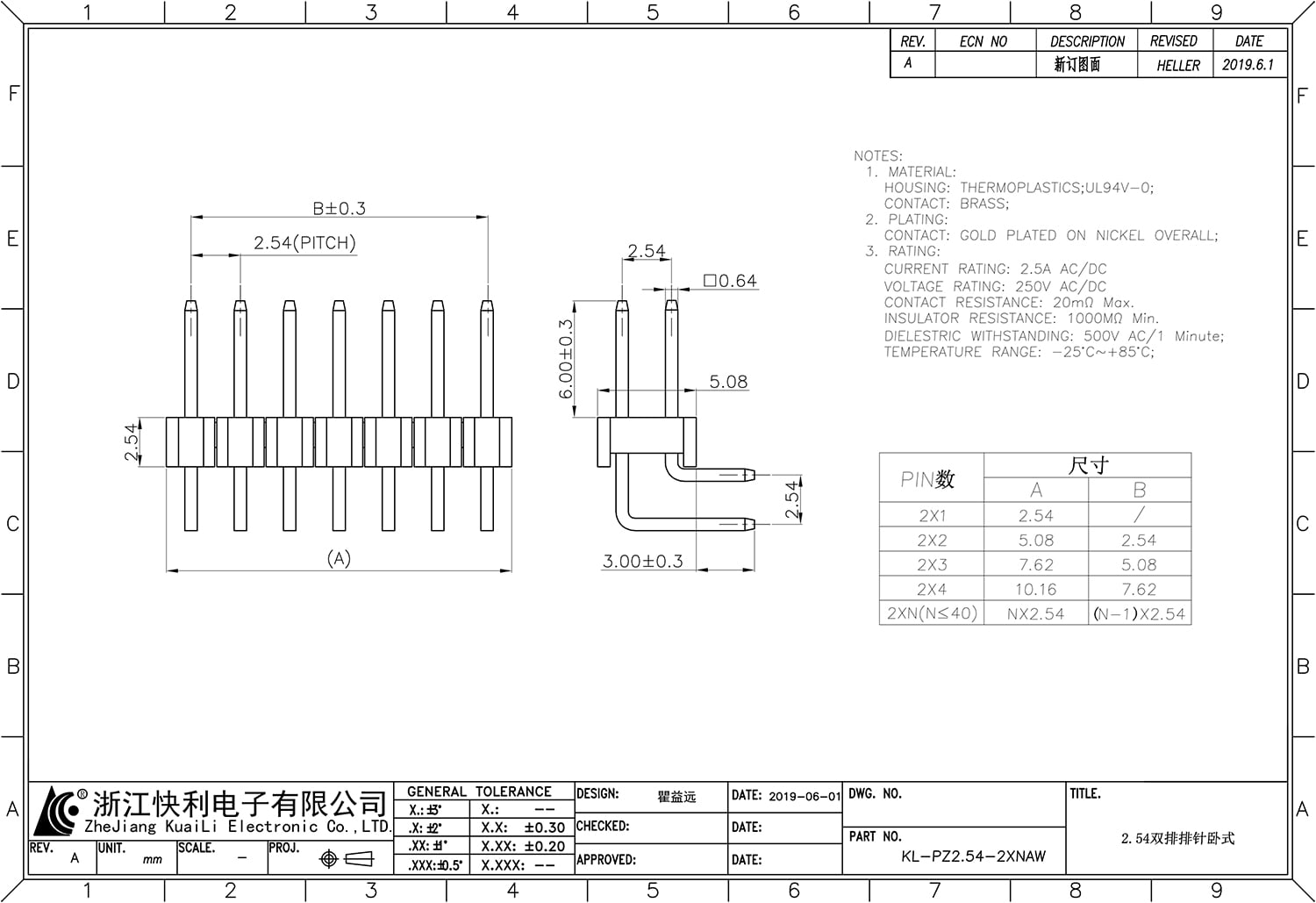

Specifications:



Product Category

PCB

Pitch (mm)

2.54

Pin

1-40P

Current Rating

2.5A

Voltage Rating

250V AC,DC

Withstanding Voltage

500V AC  1 Min

Contact Resistance

20mΩ Max

Operating Temperature

- 25°C  ~  85 °C

Pin Material

Phospor Bronze (Gold Plating)

Housing Material

PA 46 UL94V-0 Black



Basic Info.



Model NO.

PZ2.54-2XNAW

Application

PCB

Certification

CE,ISO9001 ,ROHS Reach,CQC, PAHS,TSCA,PAES

Terminal Material

Phosphor Bronze with Tin Plating

Services

ODM/OEM

Color

Black

Market

Asia, America, Europe, Mid-East, Africa

Main Products

Connector, Terminal, PCB Connector

Package

Tape Reel

Sample

Free

Delivery Time

Stock goods within 1 day, Customized 7 days

Terms of Trade

EXW, FOB, CIF, CPT

Specification

Electrical terminal Connector

Trademark

KUAILI

Origin

Zhejiang, China (Mainland)

HS Code

8736909000



Production Equipment



Equipment Name

QTY

Origin

Injection Molding Machine

64

China

High-speed Stamping Press Machine

37

Taiwan &Japan

Automated Press-Fit Production Line

103

China

SMT Patch Packing Inspection Machine

128

China

Automated Tape-and-Reel Packaging

20

China

Fully Automatic Optical Counting Packing machine

1

China

Y-axis Inspection Machine

8

Germany

Sodick EDM Machine

3

China

Sodick Wire EDM Machine

3

China
