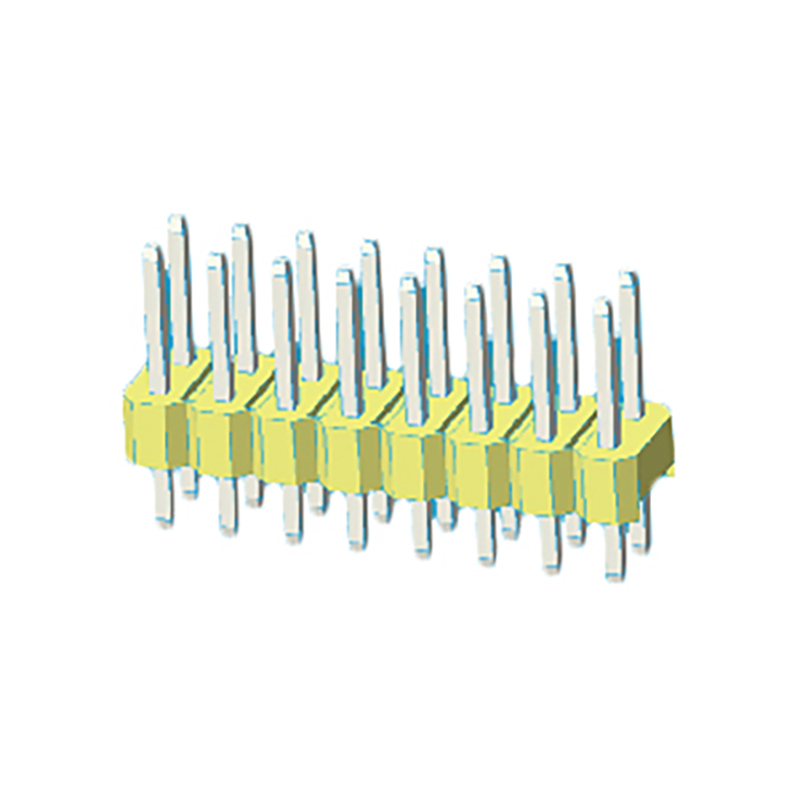

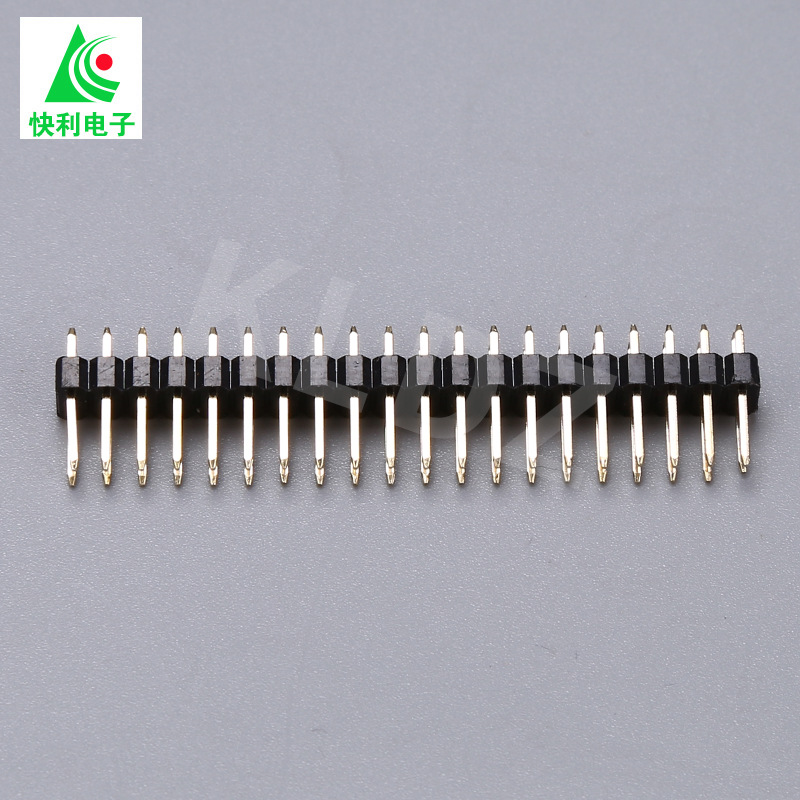

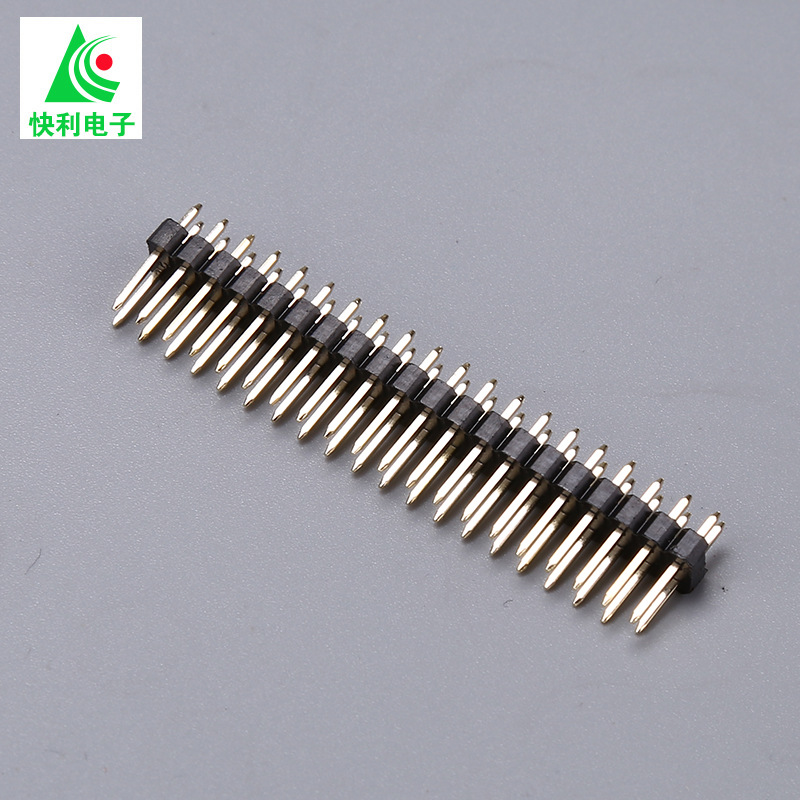

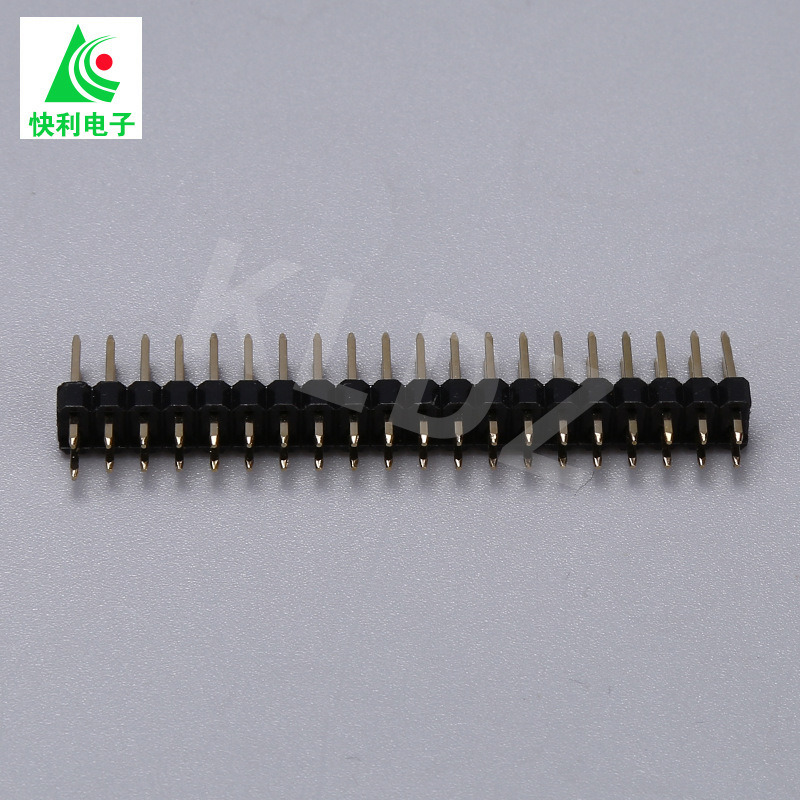

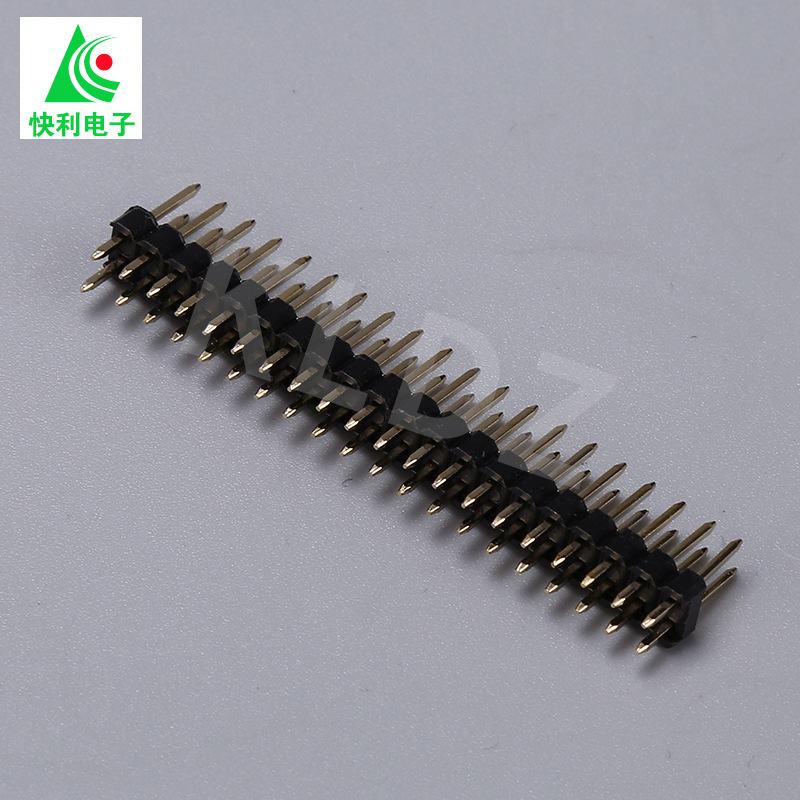

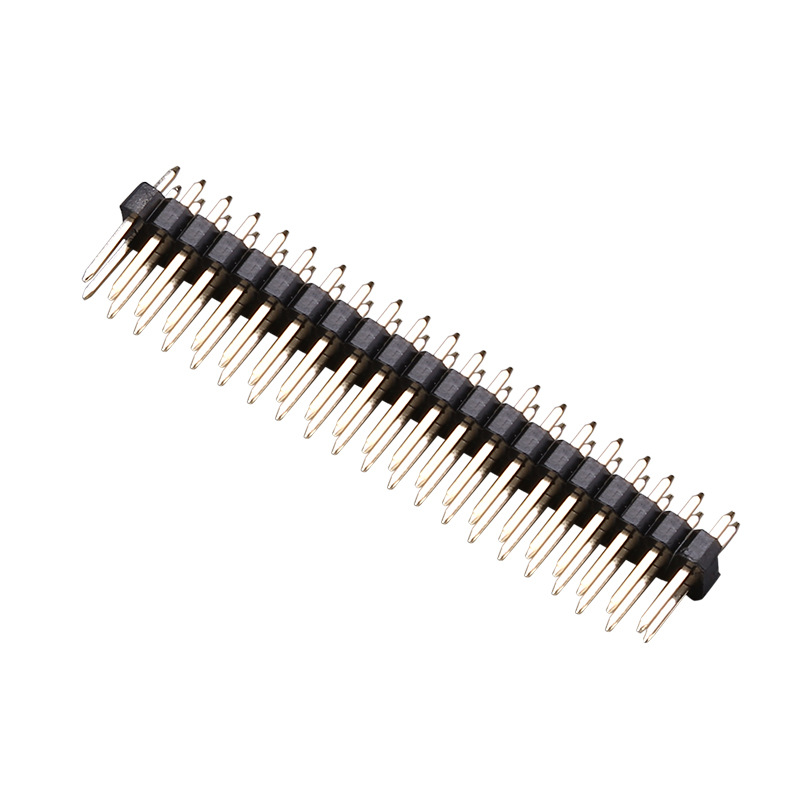

2×40 Dual Row 2.54mm Pitch PZ2.54 Right-Angle (L-Shaped) & Vertical Pin Headers

The Molex 901310124 equivalent is a versatile 2×40 dual-row, 2.54mm pitch connector, featuring both right-angle (L-shaped) and vertical pin headers. This connector provides an efficient solution for applications requiring secure and compact wire-to-board connections. With its dual-row configuration and 2.54mm pitch, it is ideal for a variety of electronic devices, offering both reliability and ease of use in demanding environments.

The right-angle (L-shaped) pin header design enables space-saving configurations, making it good for applications where the connector needs to be positioned at a 90-degree angle to the board. This orientation is particularly useful in systems where vertical space is limited but horizontal space is more abundant. Meanwhile, the vertical pin header option allows for traditional straight connections, ensuring flexibility in PCB design.

With a total of 40 positions in a dual-row arrangement, the connector supports high-density wiring, allowing multiple connections in a compact space. This is ideal for industrial automation, telecommunications, automotive, and consumer electronics, where efficient use of space without compromising performance is critical.

The 2.54mm pitch ensures compatibility with a wide range of components and is a standard used in many electronic systems. The connector is designed to provide secure, stable connections even in environments subject to vibration or mechanical stress. It is also built for ease of assembly, with the pin headers designed to ensure precise alignment and secure mating with female connectors.

The Molex 901310124 equivalent 2×40 dual-row, 2.54mm pitch connector with right-angle and vertical pin headers offers a durable, space-efficient, and versatile solution for wire-to-board applications, making it a reliable choice for a broad range of electronic and industrial systems.

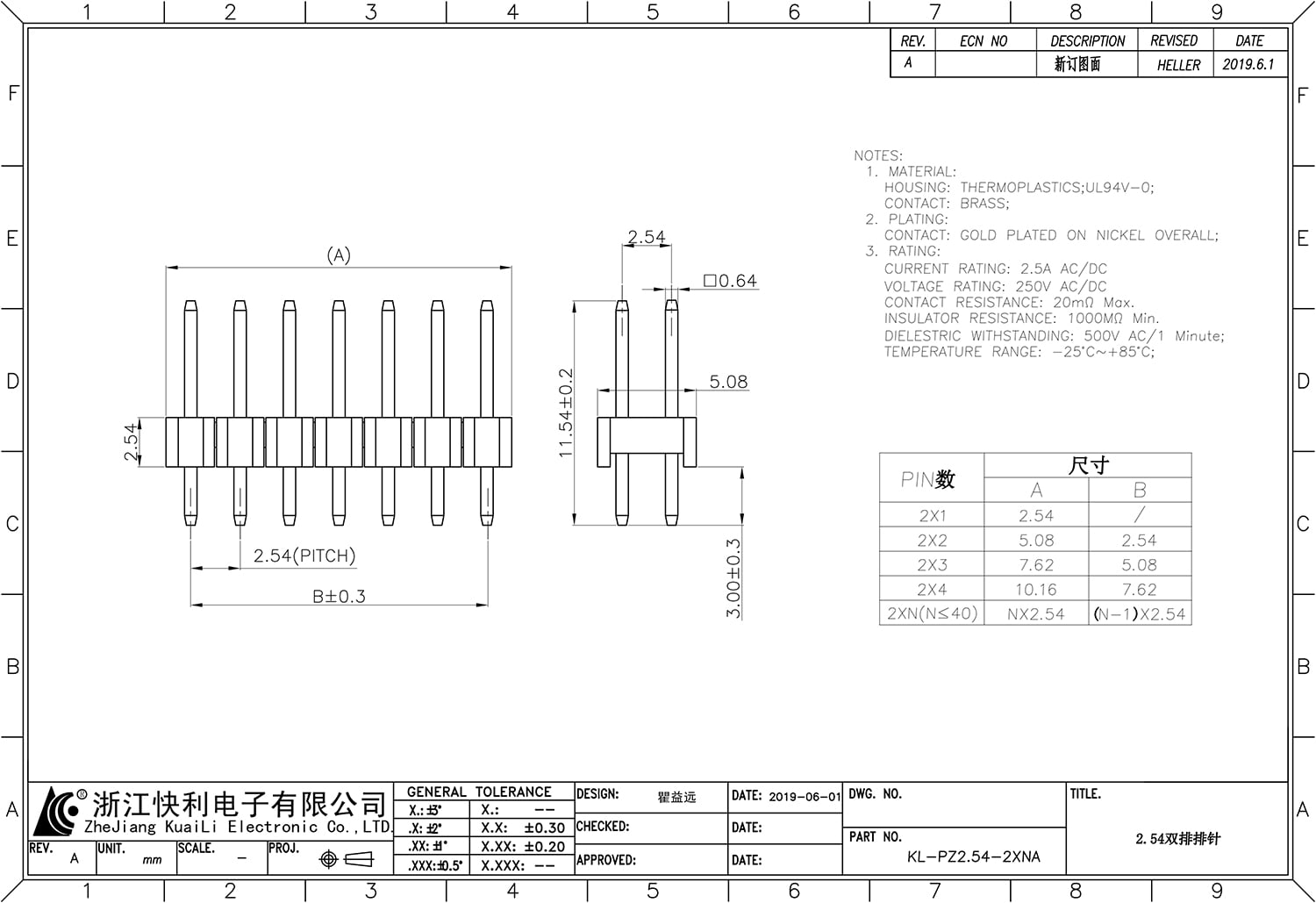

Specifications:

Basic Info.

Production Equipment

Specification:
