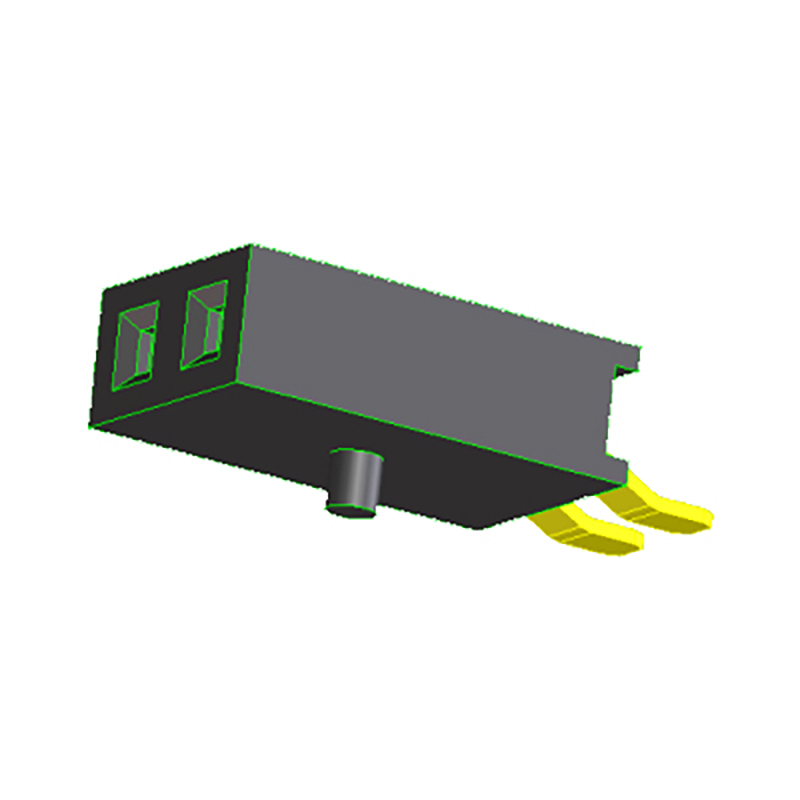

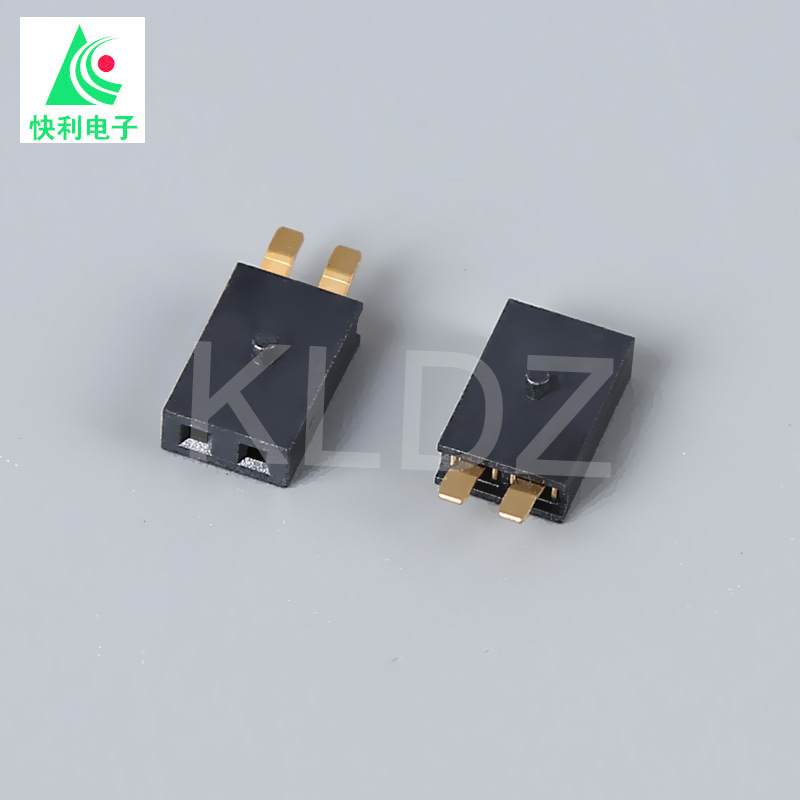

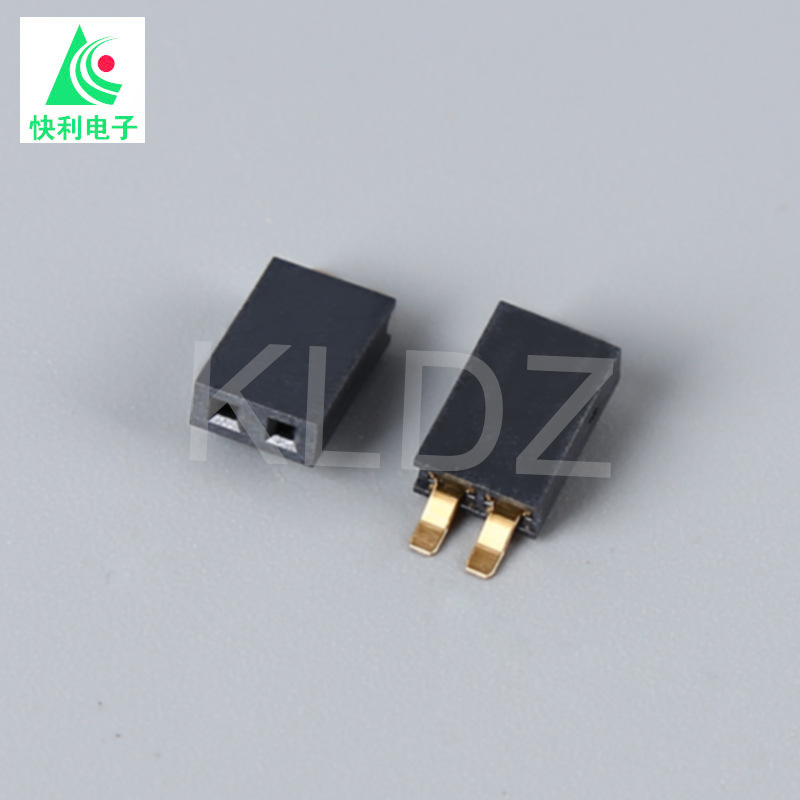

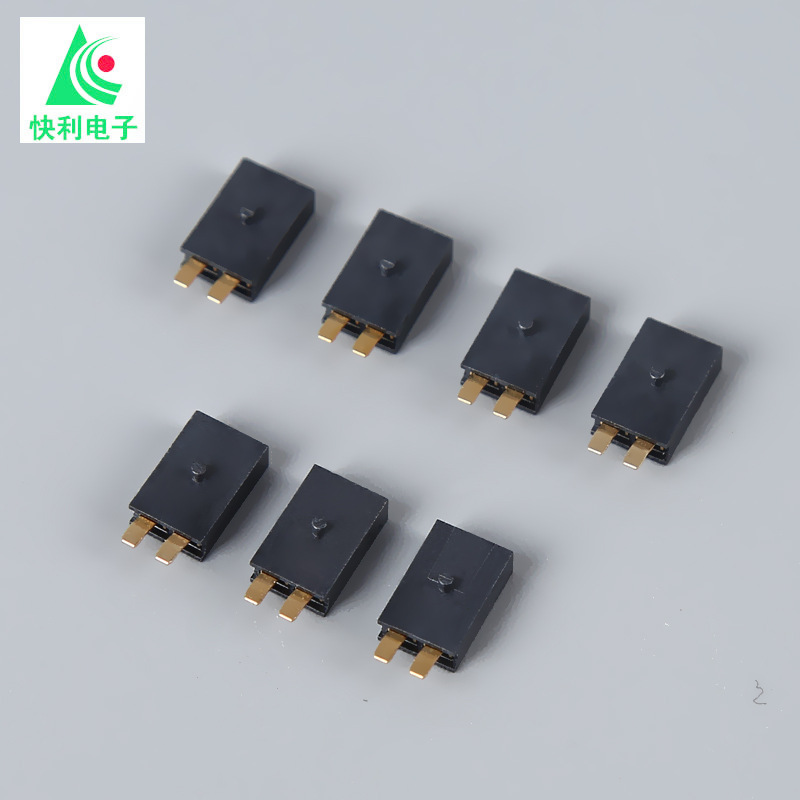

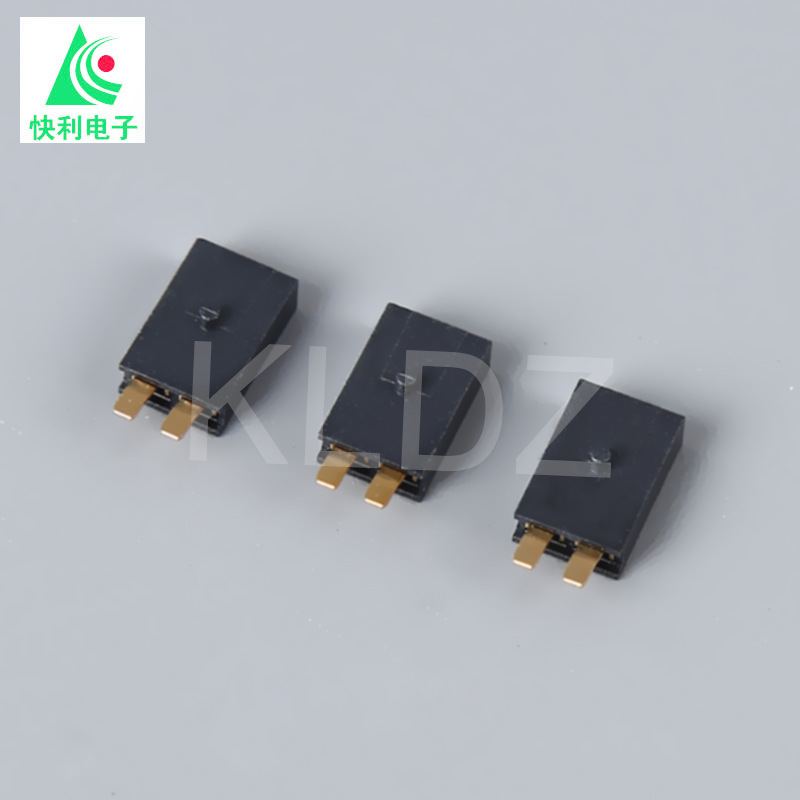

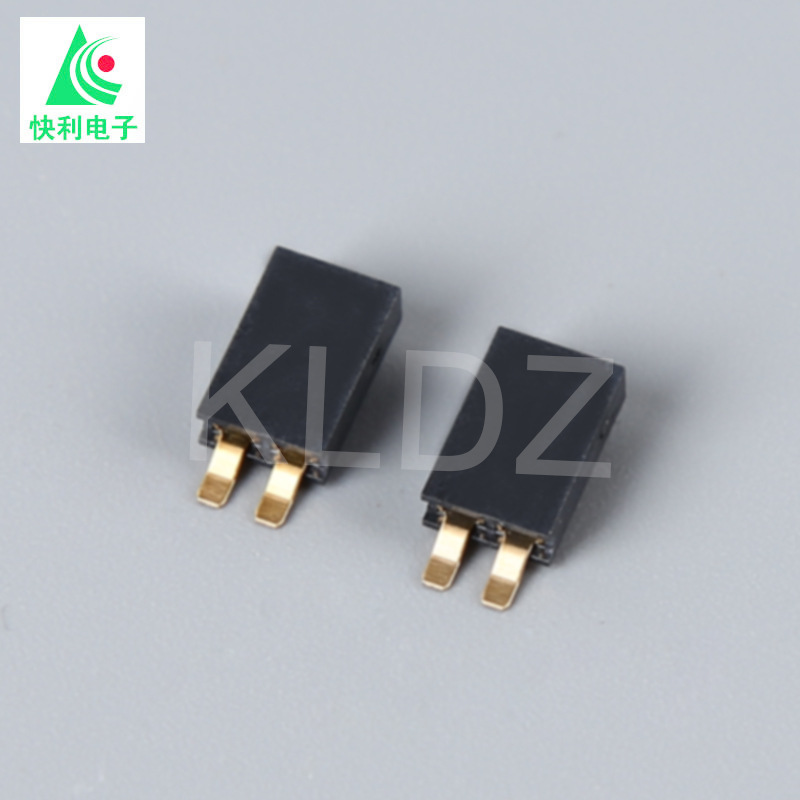

2.54mm Right-Angle SMT Female Header Guided Alignment JST-Style Durable Socket

The 2.54mm right-angle SMT (Surface Mount Technology) female header is a high-performance JST-style durable socket designed for efficient and secure connections in PCB (Printed Circuit Board) and industrial automation applications.

One of the standout features of this right-angle female header is its guided alignment mechanism. This feature ensures that the connector can be easily and accurately inserted into its corresponding male terminal, small the risk of misalignment during the assembly process. The guided alignment helps to prevent connection issues, improving the overall reliability and durability of the electrical system.

The 2.54mm pitch is widely used in a variety of industries, including industrial automation, telecommunications, automotive, and consumer electronics. Its compact size makes it ideal for applications where space is limited, yet it still offers strong mechanical and electrical performance. The right-angle design of the header allows for space-saving connections on PCBs, especially in applications where the connector must be positioned at a 90-degree angle to the board.

Built for durability, this JST-style socket is designed to withstand the stresses of industrial environments. It is resistant to vibrations, temperature variations, and mechanical impacts, making it suitable for use in demanding applications. The high-quality materials used in its construction ensure that the socket maintains a secure and stable connection over time, reducing the need for frequent replacements or maintenance.

The 2.54mm right-angle SMT female header with guided alignment is a good choice for a variety of PCB and industrial automation applications. It provides a reliable, durable, and space-efficient solution for wire-to-board connections, ensuring good performance in a wide range of systems.

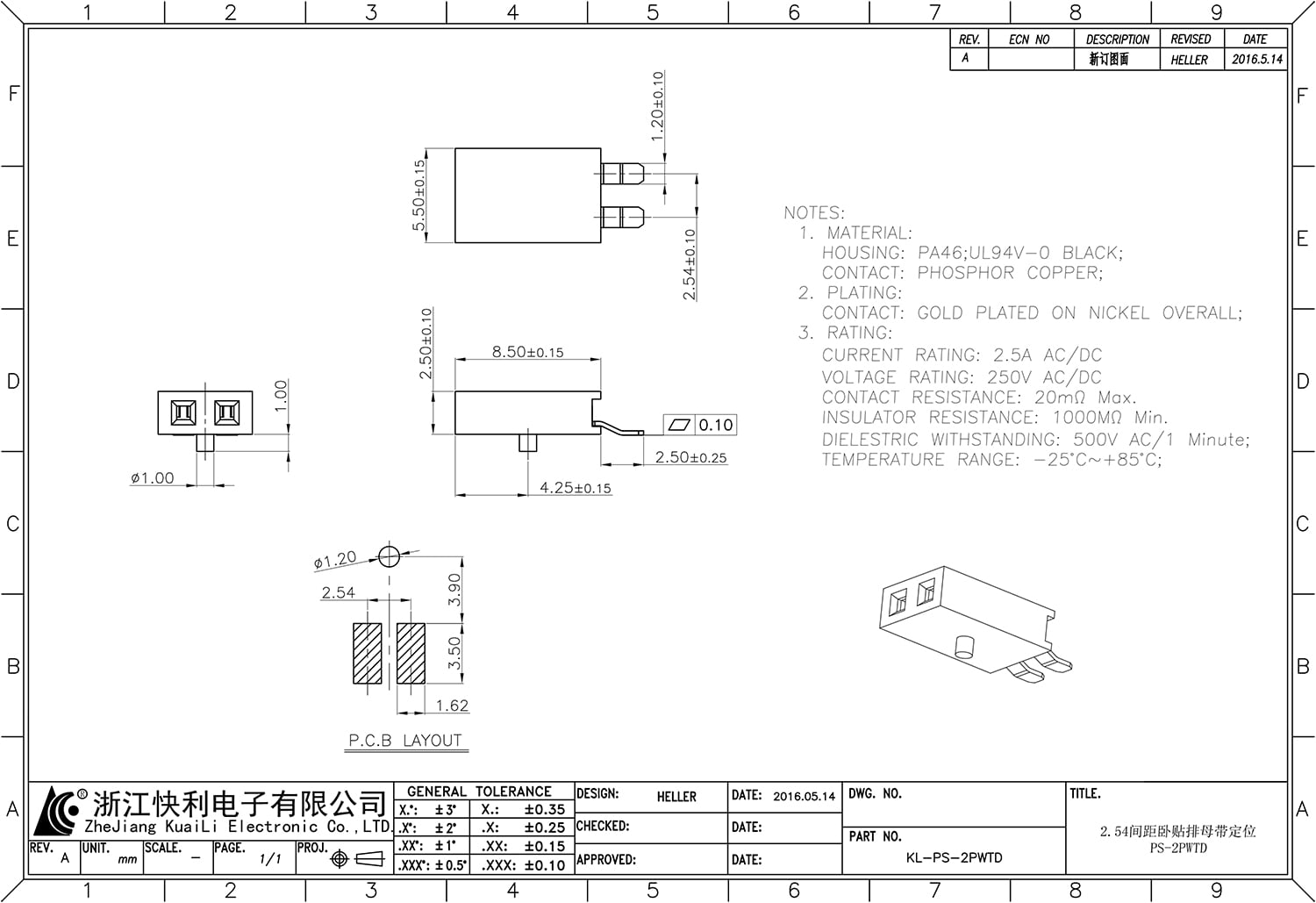

Specifications:

Basic Info.

Production Equipment

Specification:
