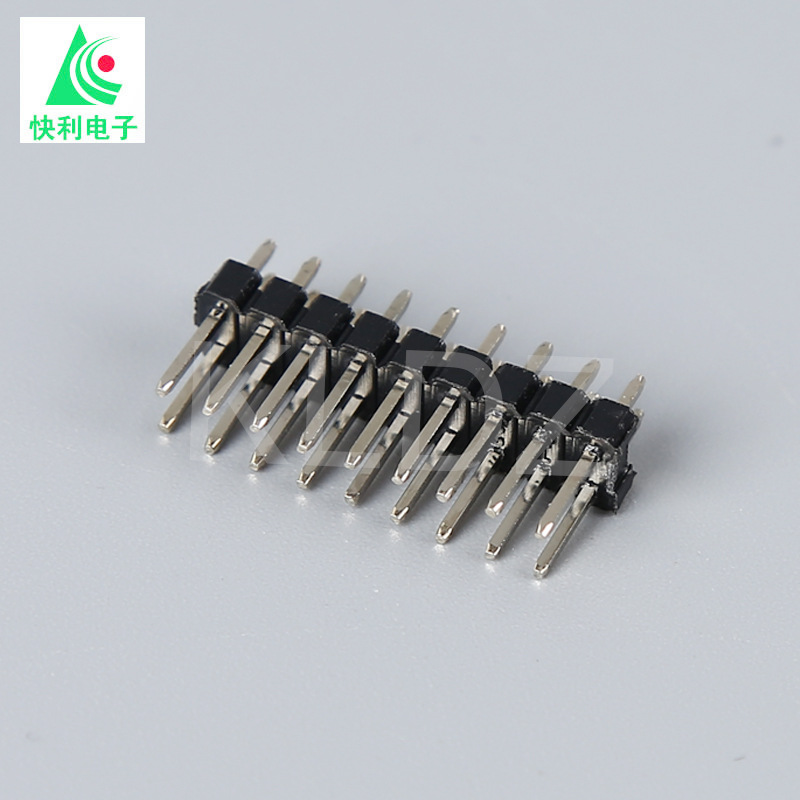

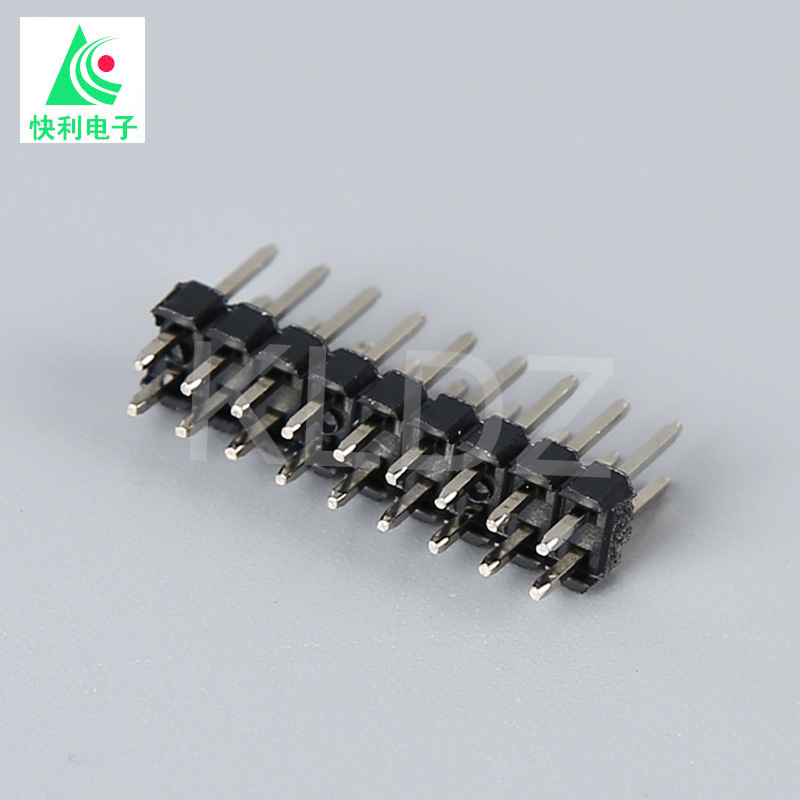

2×40 Dual Row 2.54mm Pitch PZ2.54 Right-Angle (L-Shaped) & Vertical Pin Headers

Introducing the Molex 901200125 Equivalent, a 2×40 Dual Row, 2.54mm Pitch PZ2.54 Right-Angle (L-Shaped) connector. This high-density connector is an essential component for dense circuit board designs, providing a reliable and efficient means of establishing electrical connections between boards and components in a compact space.

Designed with a robust L-shaped profile, this connector facilitates a right-angle mating that saves valuable PCB real estate while maintaining a secure and stable connection. The 2.54mm pitch offers a balance between compactness and ease of use, making it suitable for a wide range of applications, from consumer electronics to industrial control systems.

The 2×40 Dual Row configuration allows for a total of 80 contacts, enabling high-density interconnections without sacrificing usability. The Molex 901200125 Equivalent's compatibility ensures a seamless replacement for existing systems that utilize the original Molex design, providing a cost-effective solution for maintaining or upgrading legacy equipment.

This connector is built to last, featuring a durable housing that protects the contacts from damage and environmental factors. Its gold-plated contacts ensure low resistance and good signal integrity, while the precision manufacturing process guarantees consistent performance and mating characteristics.

The Molex 901200125 Equivalent is a reliable and choice for applications requiring a high-density, dual-row, right-angle connector with a 2.54mm pitch. It offers the same functionality and performance as the original part, making it an ideal solution for maintaining system integrity and reliability.

Specifications:

Basic Info.

Production Equipment

Specification:
