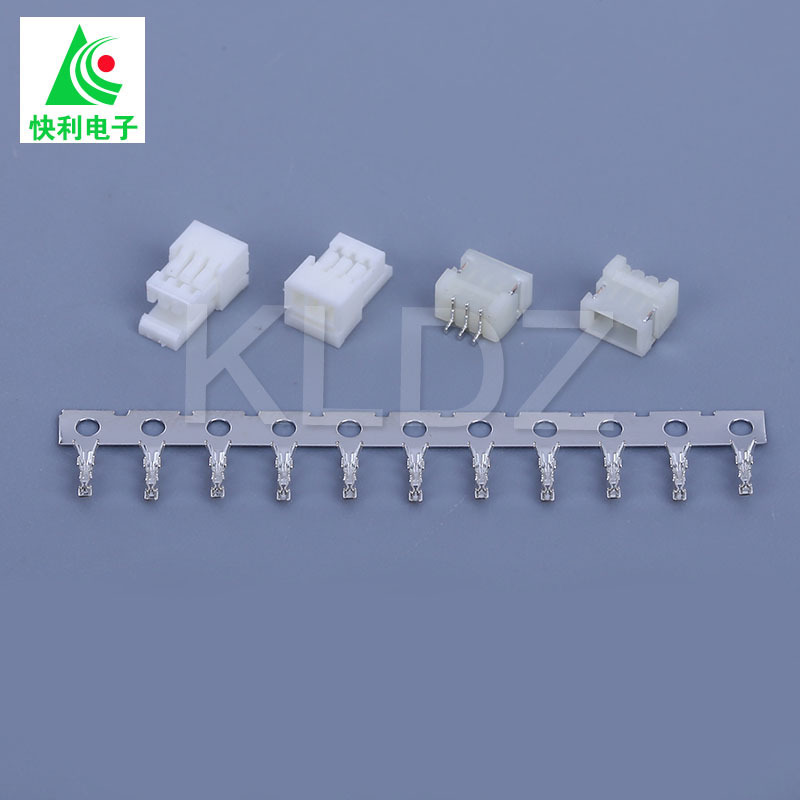

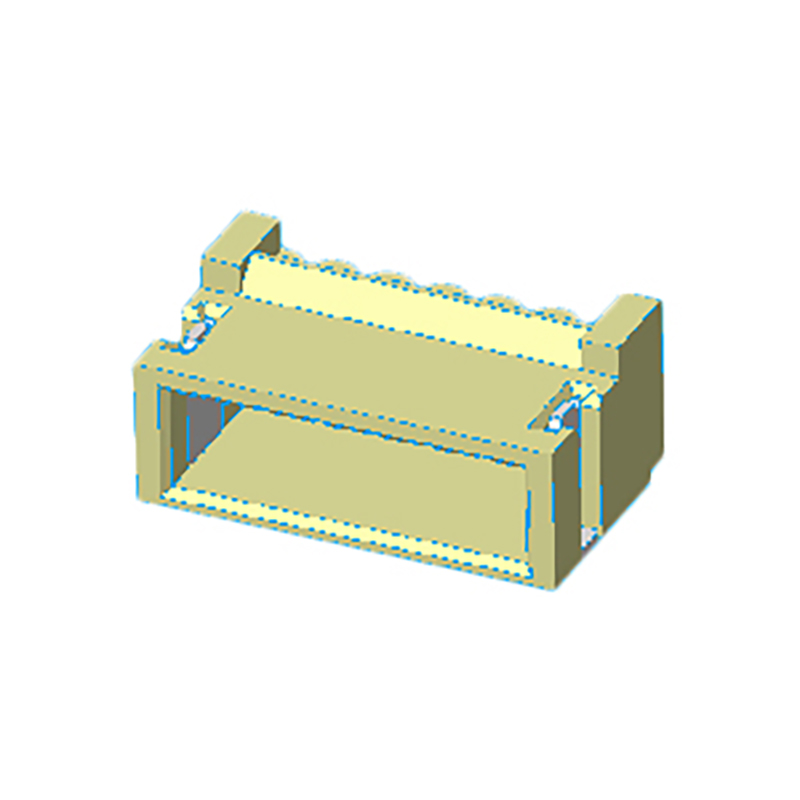

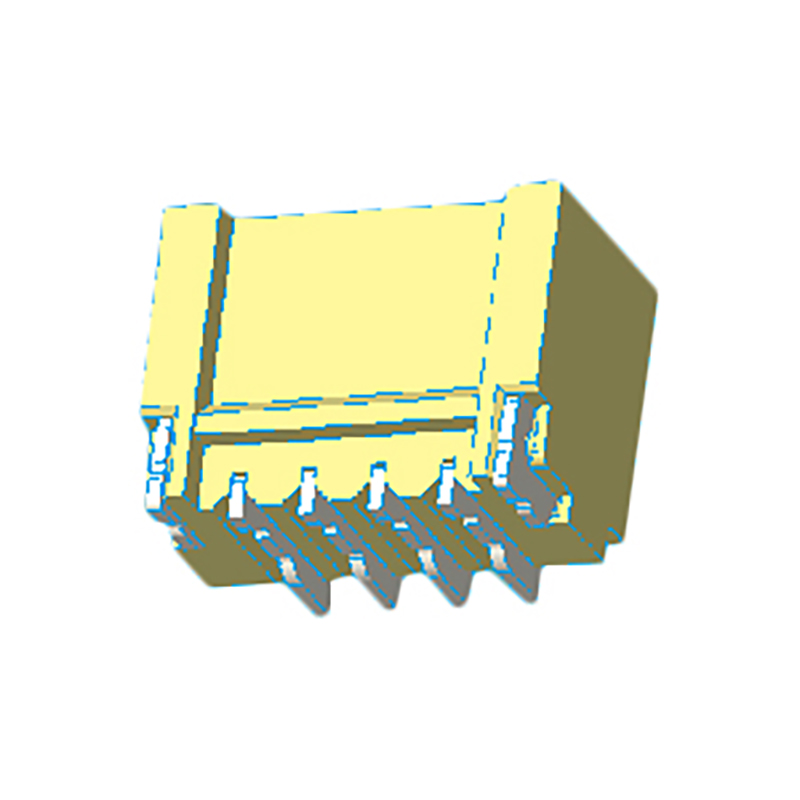

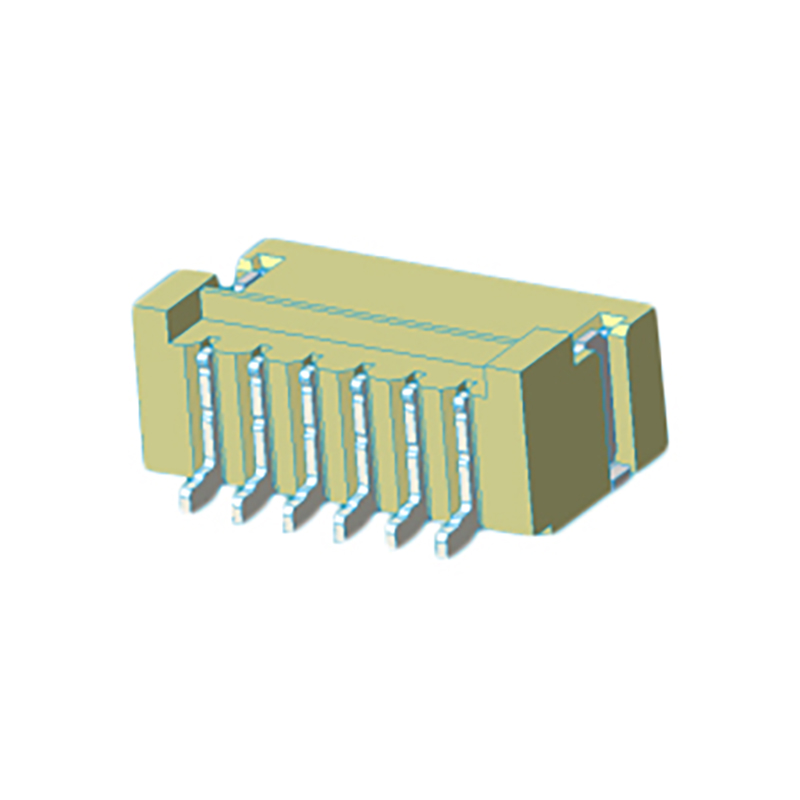

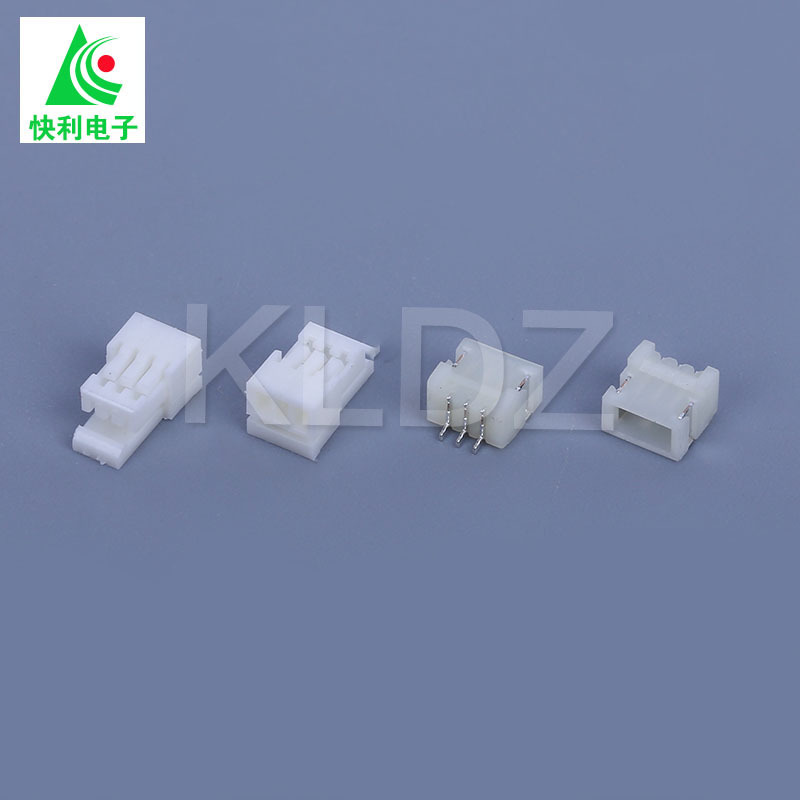

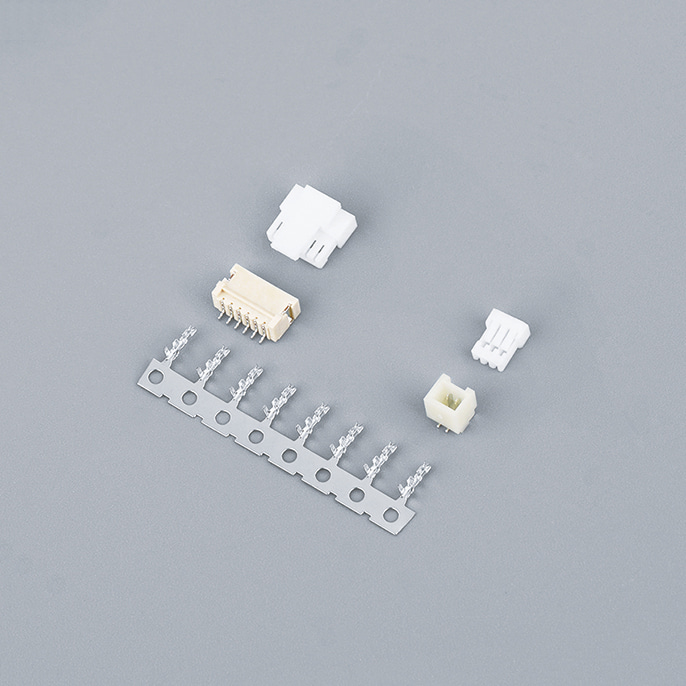

NH Series 2-16P Crimp Assembly 3A 1.0mm Pitch Connector

The NH Series 2-16P Crimp Assembly 1.0mm Pitch Connector is a versatile and reliable interconnect solution designed to serve as an ODM alternative to the JST NH series. With support for 2 to 16 positions, this connector is ideal for applications requiring compact design, strong current capacity, and secure wire-to-board connectivity in a wide range of electronic systems.

Featuring a 1.0mm pitch, the NH series connector provides a high-density layout that bigs board space efficiency while maintaining good signal integrity. It supports a rated current of 3A, making it suitable for both power and signal transmission in consumer electronics, LED lighting, medical devices, and industrial control systems.

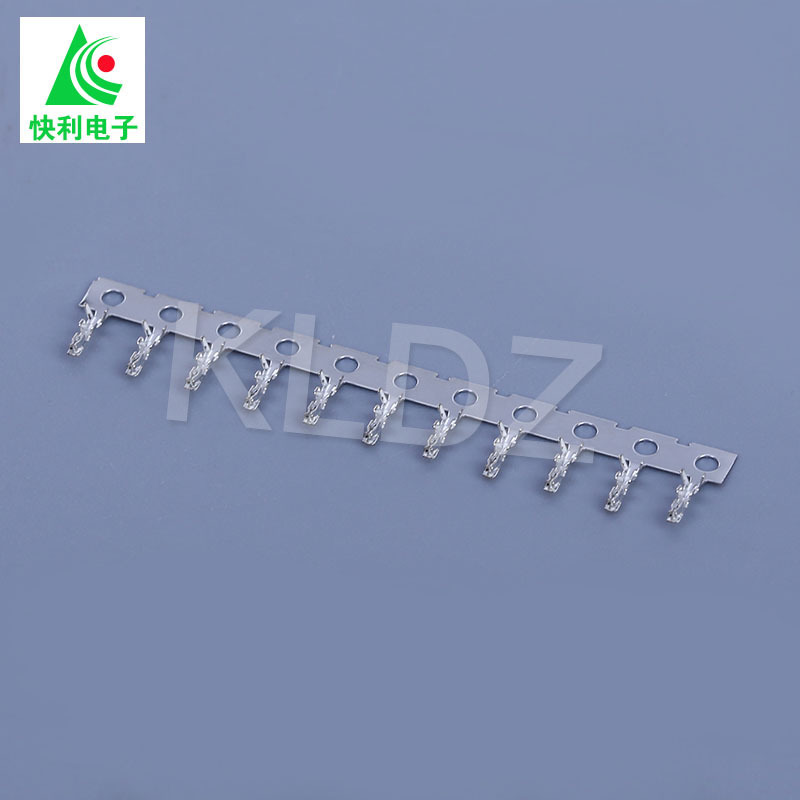

The crimp-style assembly ensures a secure and stable electrical connection, designed for ease of assembly and durability during long-term use. The housing is built with polarization features to prevent misalignment during mating, enhancing connection accuracy and safety. Additionally, the locking mechanism provides a firm retention force, protecting against accidental disconnection due to vibration or movement.

As an ODM solution equivalent to JST NH, this connector offers compatible dimensions and performance at a cost-effective value, allowing for smooth integration into existing designs or as a direct replacement in current manufacturing processes. It is also adaptable for automated crimping and insertion equipment, improving assembly efficiency and reducing labor costs.

The NH Series 2-16P 1.0mm Pitch Crimp Connector delivers a compact, robust, and customizable interconnect solution. Its 3A current rating, JST NH compatibility, and reliable construction make it a strong choice for manufacturers seeking dependable and cost-effective alternatives in a variety of electronic and industrial applications.

Specifications:

Basic Info.

Production Equipment

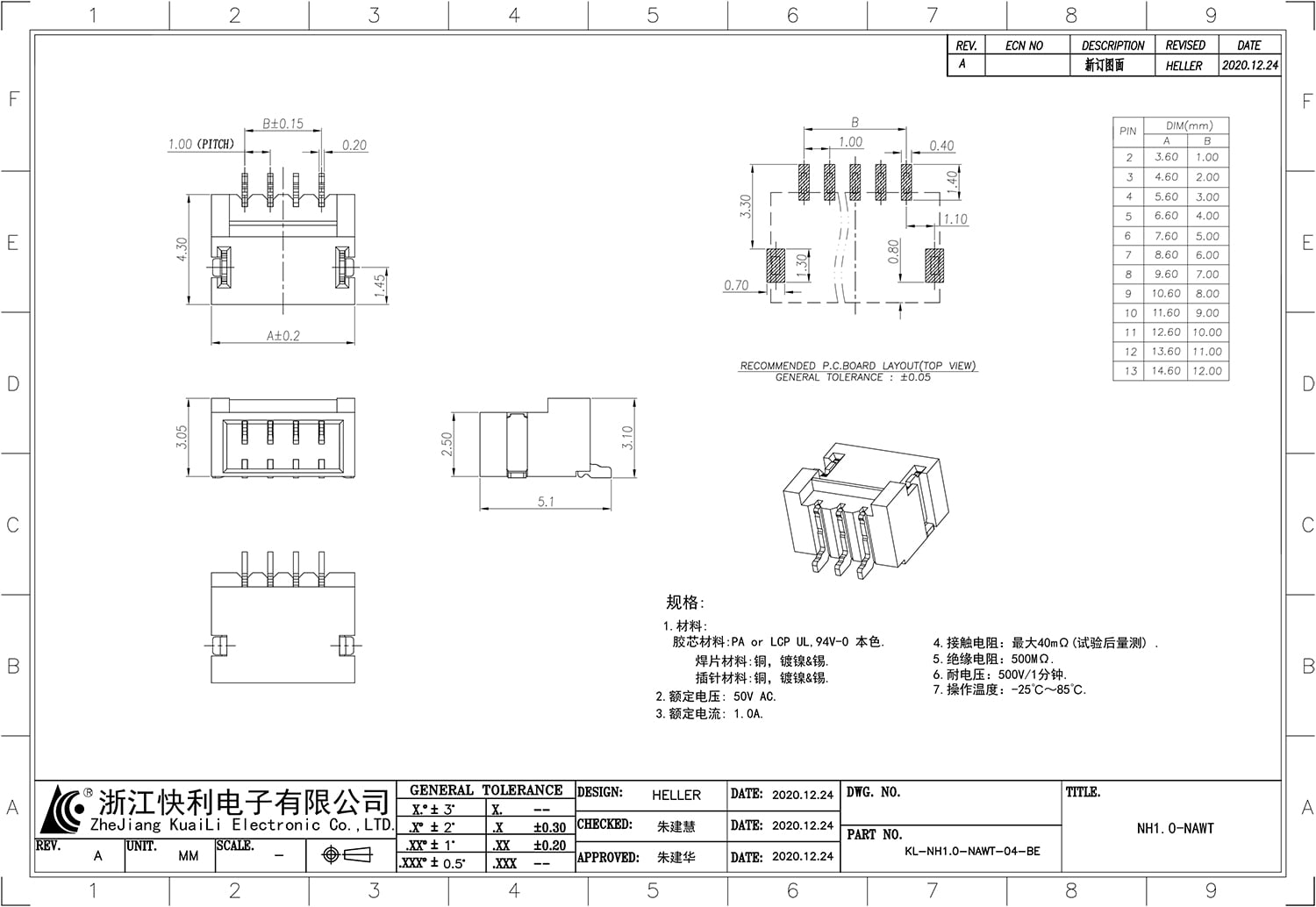

Specification:
