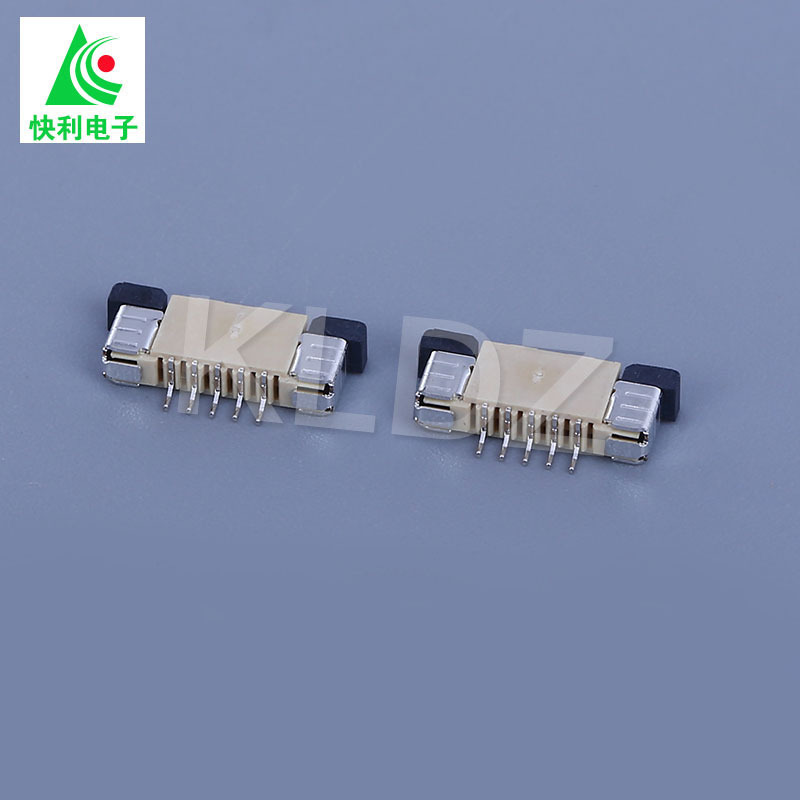

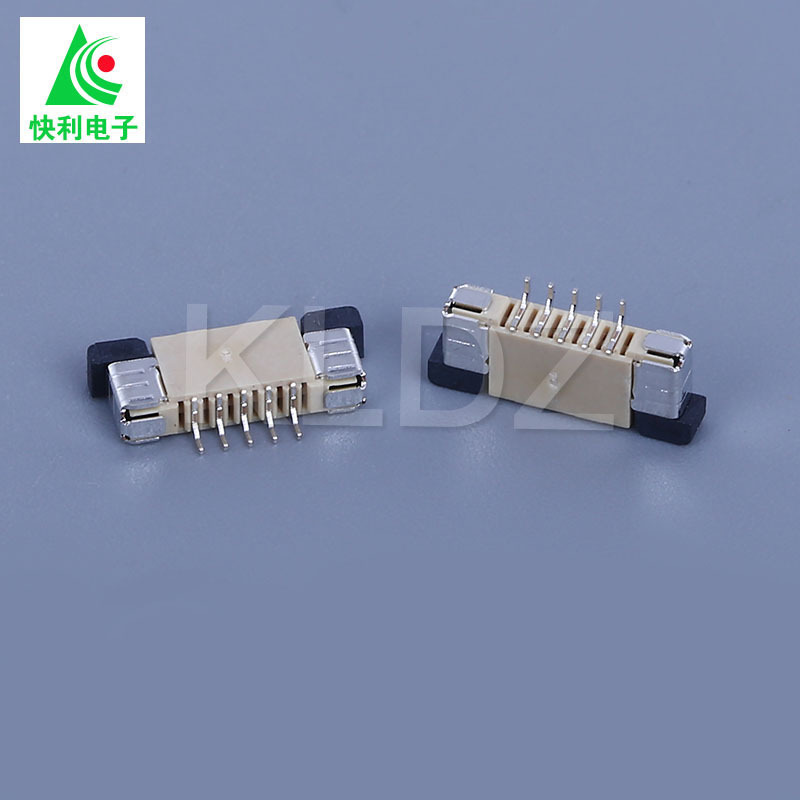

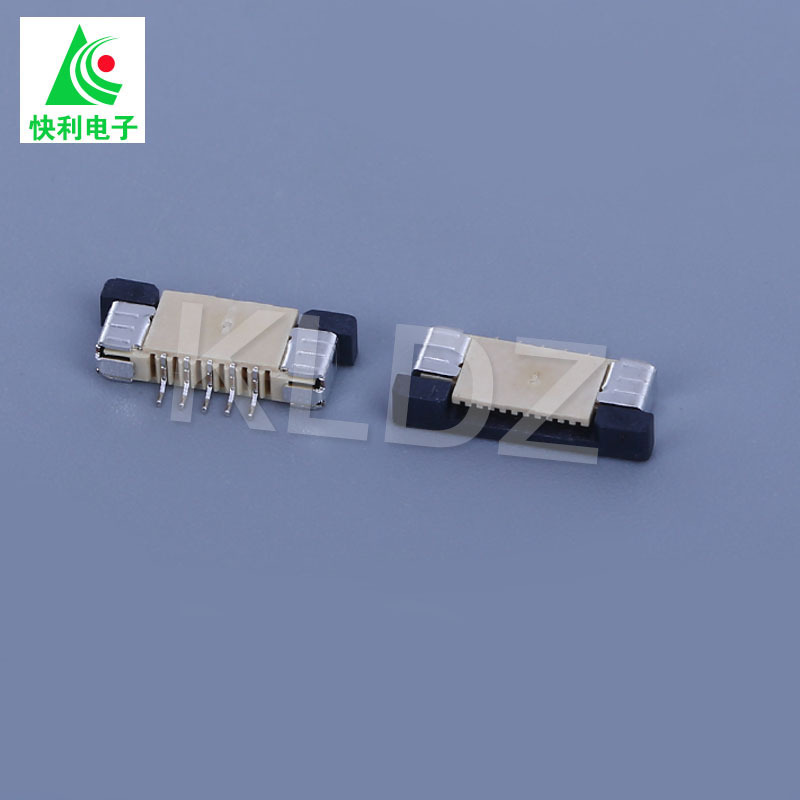

H2.0 2-16P 1.0mm Pitch Pull-Up Tab Cable-to-Board Connector

The H2.0 2-16P 1.0mm Pitch Cable-to-Board Connector with a pull-up tab design is a compact and high-precision interconnect solution specifically developed for medical imaging equipment. Engineered for signal reliability and ease of operation, this connector supports 2 to 16 positions, offering flexible options for connecting multiple circuits in a tight space while ensuring stable performance under demanding conditions.

With a 1.0mm pitch, this connector enables high-density signal transmission, essential for the complex circuitry found in medical imaging devices such as ultrasound systems, CT scanners, and diagnostic monitors. The pull-up tab design allows for quick and safe disconnection, providing a user-friendly experience during equipment servicing or modular replacements. This design reduces the risk of cable damage and improves ergonomics for technicians, especially in sensitive healthcare environments.

The connector is manufactured from high-performance insulating materials and plated contacts, ensuring dependable electrical conductivity and resistance to environmental stress. Its construction supports low-contact resistance and strong mating retention, which are critical for maintaining signal clarity in high-resolution imaging applications.

In addition to its mechanical and electrical reliability, the H2.0 1.0mm connector meets industry standards for safety, durability, and biocompatibility, making it suitable for use in clinical settings. Its compact form factor helps small PCB footprint, enabling the development of lighter and more portable medical devices.

The H2.0 2-16P 1.0mm Pitch Cable-to-Board Connector with Pull-Up Tab is a reliable, compact, and service-friendly interconnect option ideal for modern medical imaging systems. It supports precise signal transmission, ease of use, and long-term performance—key requirements in healthcare electronics.
