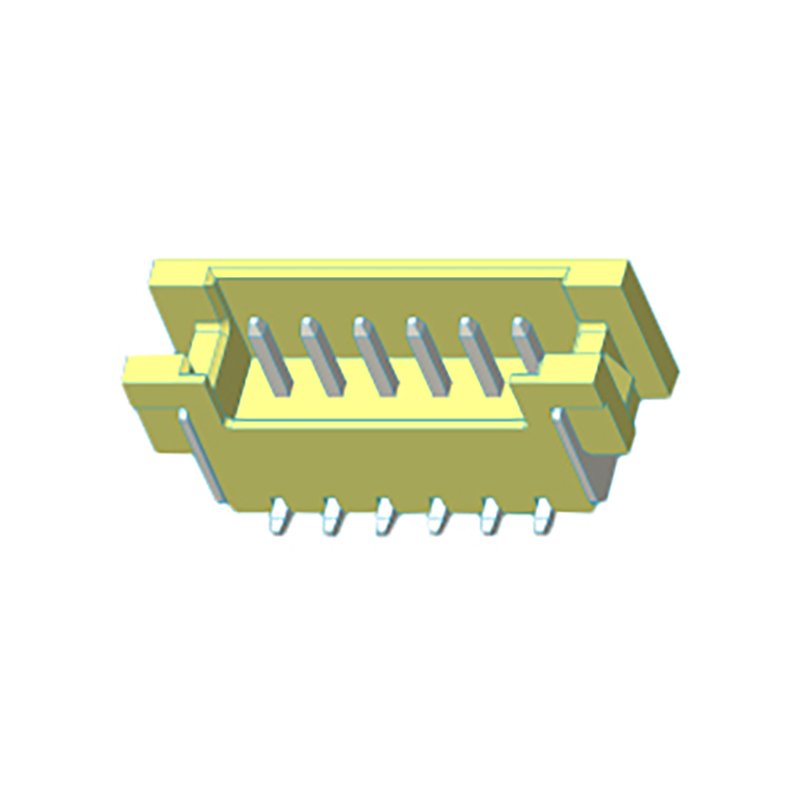

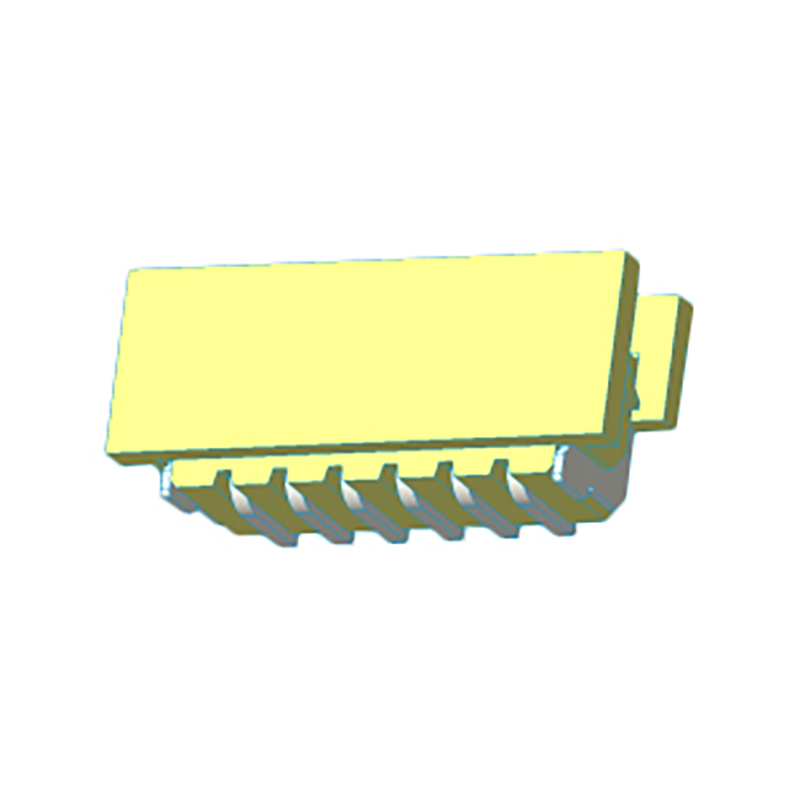

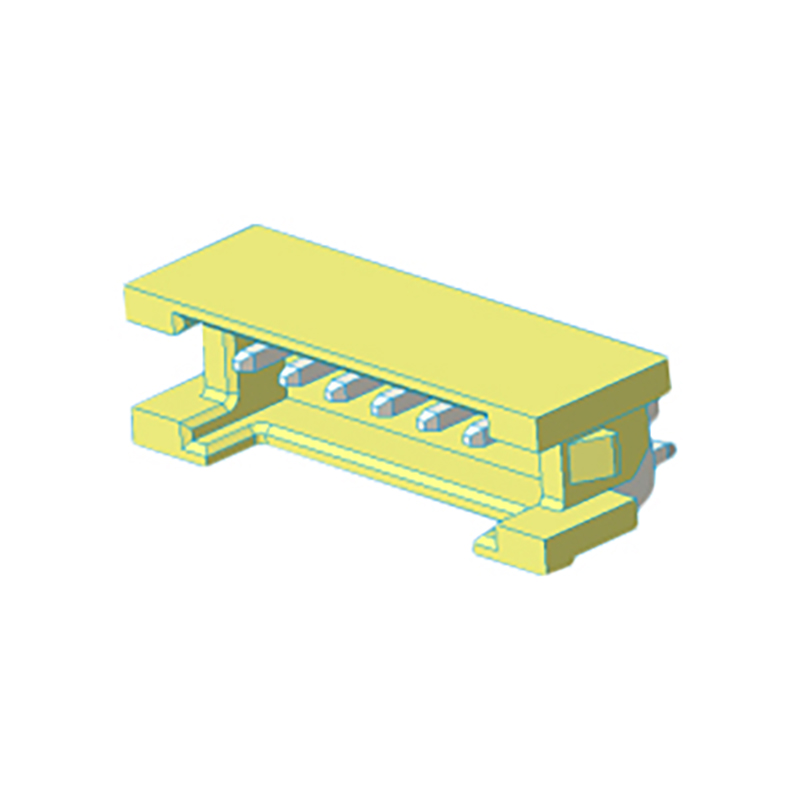

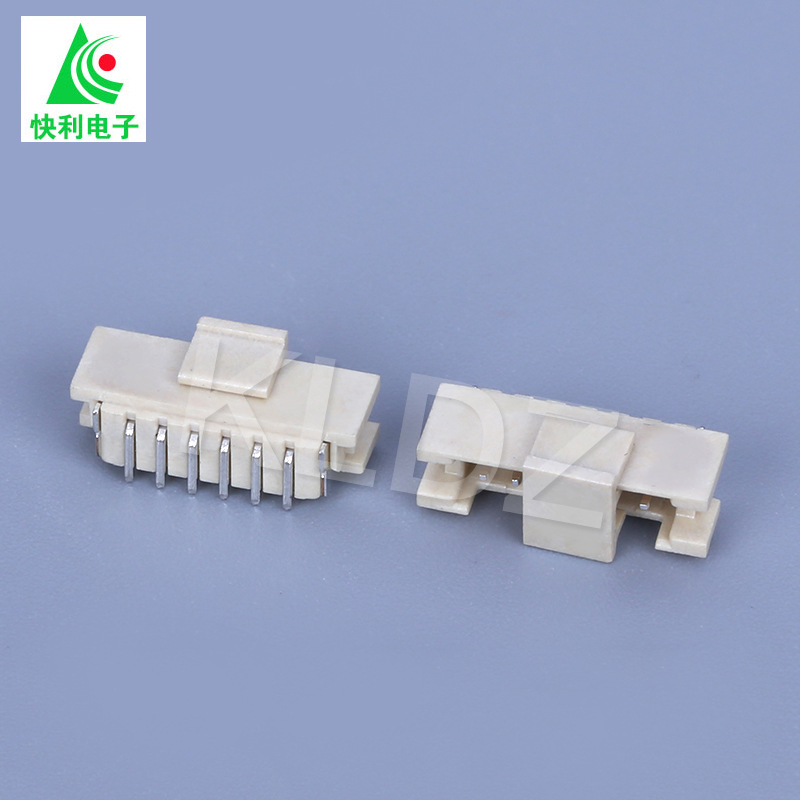

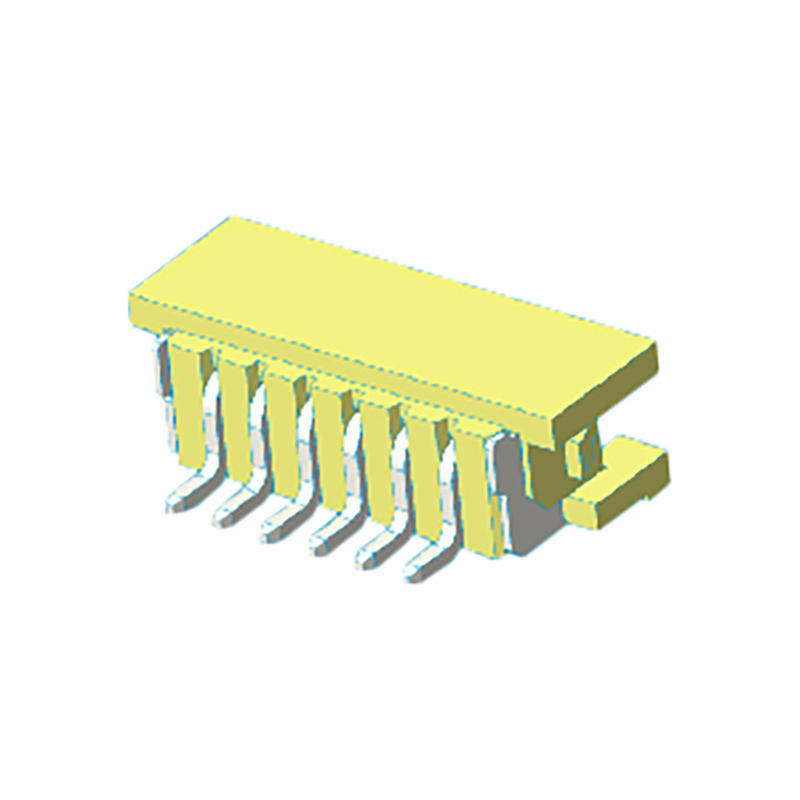

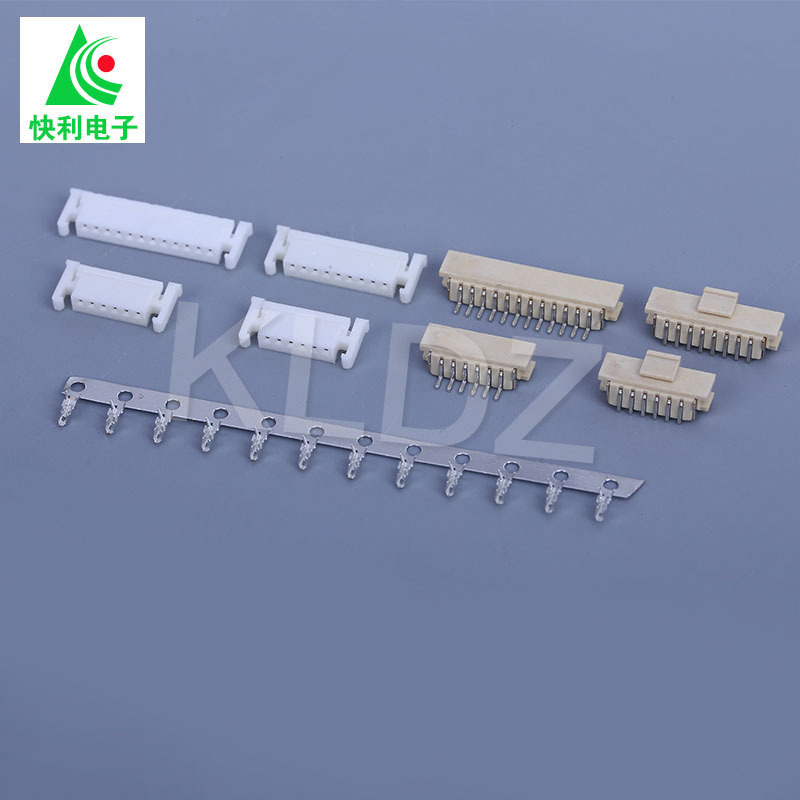

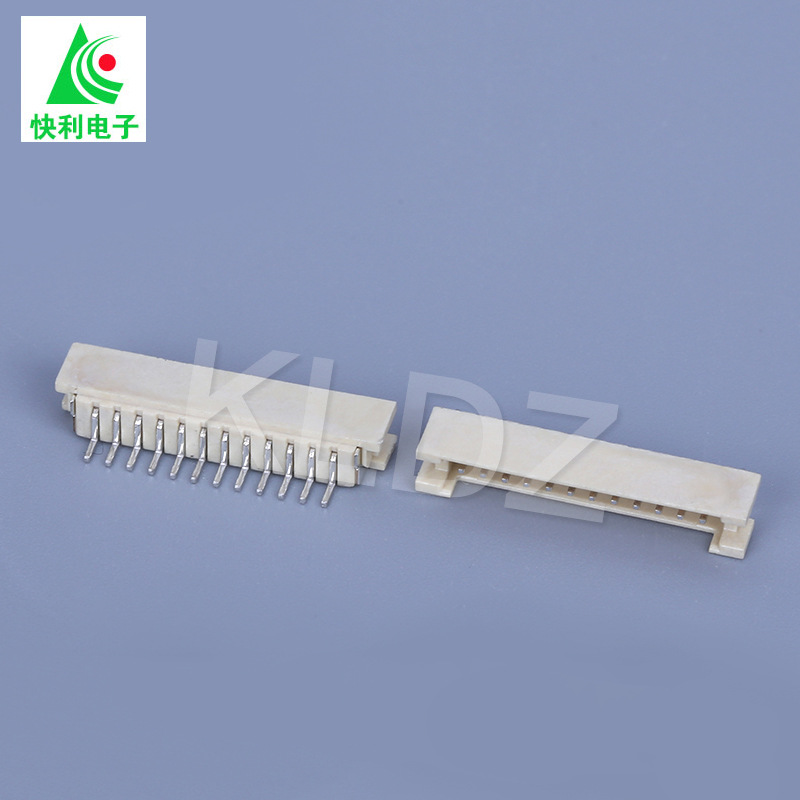

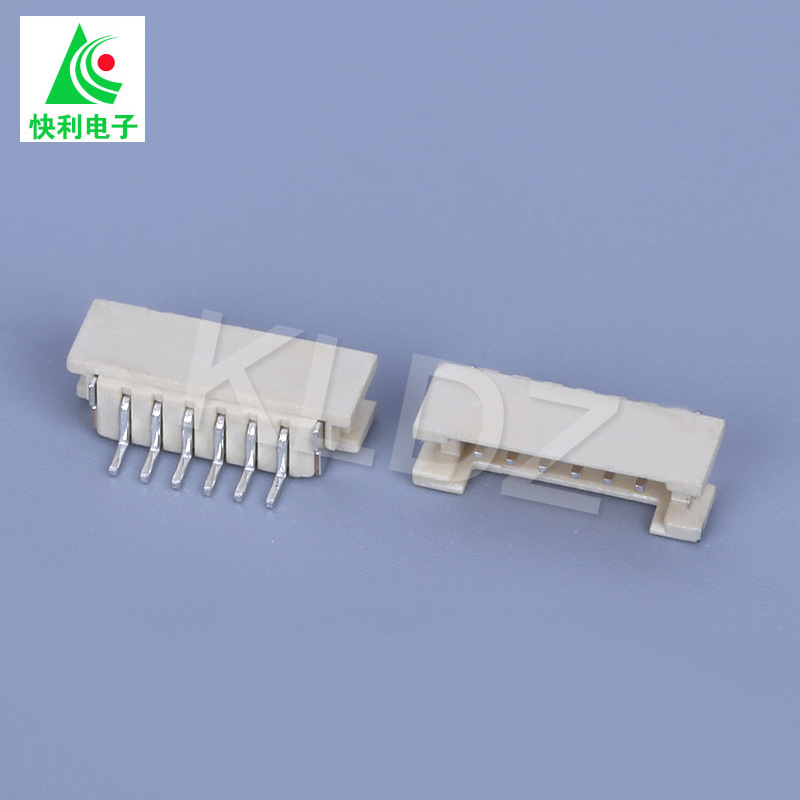

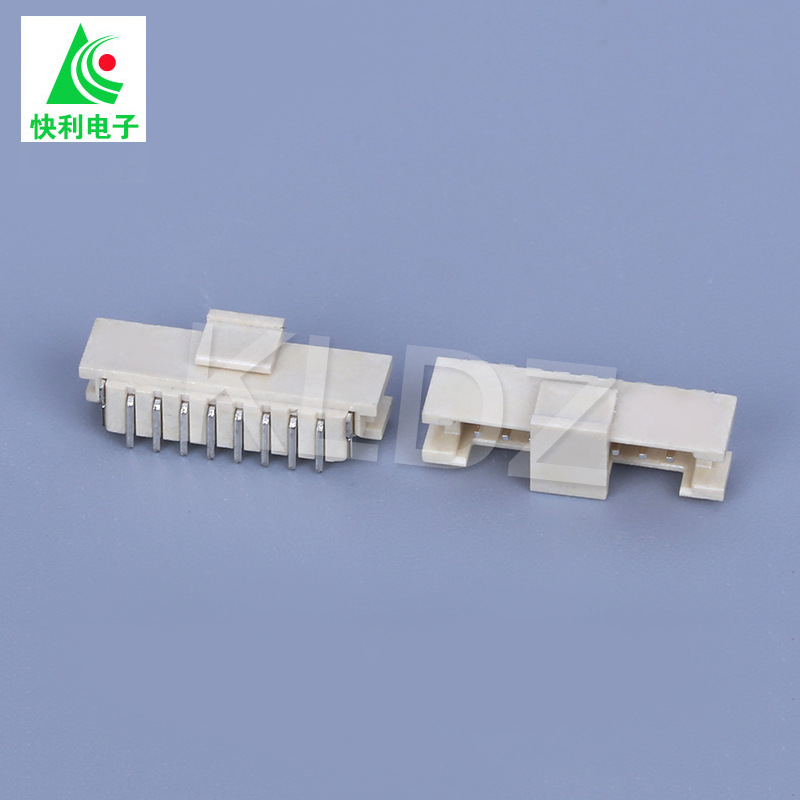

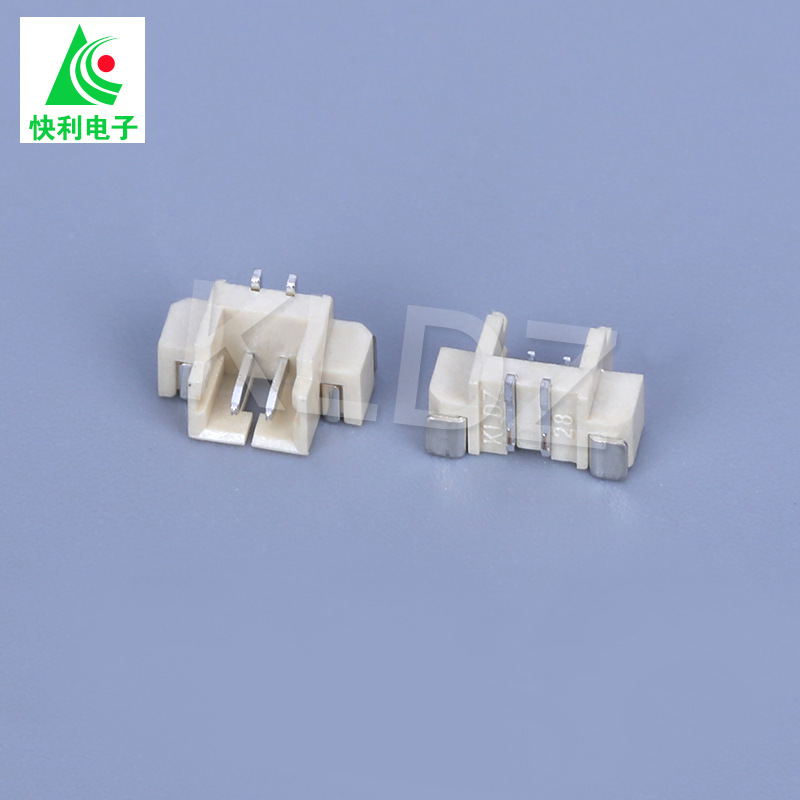

5196-04 PBT GF30 Wiring Harness DF13 2-16P Barrier Strip Housing Vertical Crimp Connector

The 5196-04 PBT GF30 Wiring Harness DF13 1.25mm Vertical Crimp Connector is an advanced interconnect solution designed for high-density wiring applications in medical devices, UAVs, and other electronic systems that require compact and reliable connections. This connector, with its Hirose-style design, is built to meet the demands of high-performance, space-constrained environments while offering good durability and electrical performance.

Featuring a 1.25mm pitch, the DF13 series connector supports up to 2-16 positions, allowing for a highly dense configuration that smalls space usage on the PCB. The vertical crimp connection ensures a secure and stable connection, with a strong mechanical retention force that resists vibrations and mechanical stresses commonly encountered in mobile or high-performance equipment like UAVs and medical imaging devices.

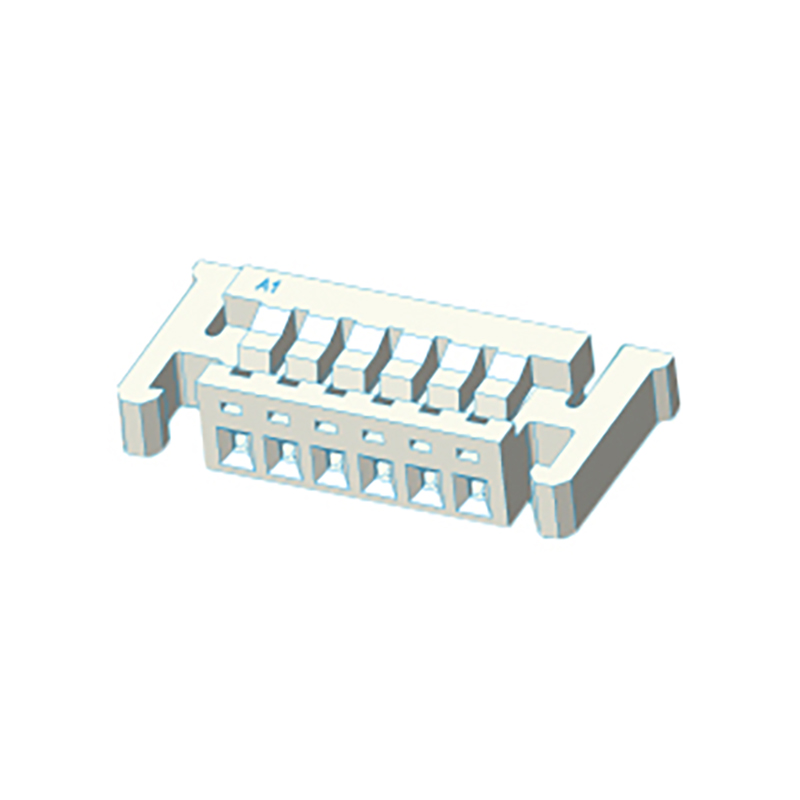

Constructed from PBT GF30 (Glass-Filled Polybutylene Terephthalate), the connector housing provides exceptional mechanical strength and resistance to high temperatures, making it suitable for demanding industrial and medical applications. The barrier strip housing design offers a clear separation between individual pins, reducing the risk of short circuits and ensuring consistent, safe electrical connections even in high-vibration environments.

This connector is particularly well-suited for automated assembly processes, supporting efficient crimping and easy insertion. Its polarized housing also aids in proper alignment during mating, small installation errors and increasing the overall reliability of the system.

The 5196-04 PBT GF30 Wiring Harness DF13 1.25mm Vertical Crimp Connector with Hirose-style barrier strip housing is an good choice for high-density wiring in medical and UAV applications. Its compact, durable design electrical performance make it a reliable solution for ensuring secure, long-lasting connections in demanding environments.

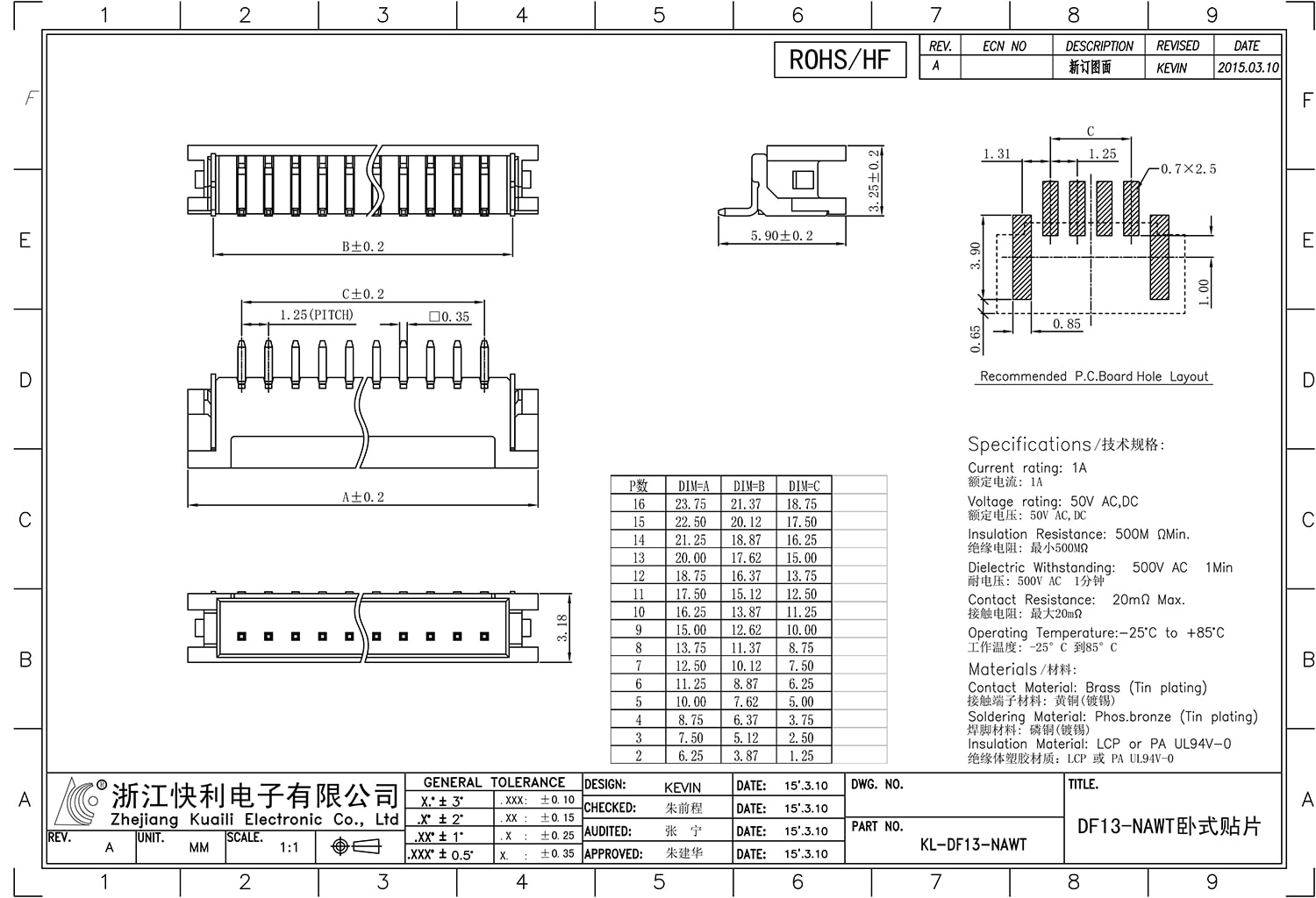

Specifications:

Basic Info.

Production Equipment

Specification:
