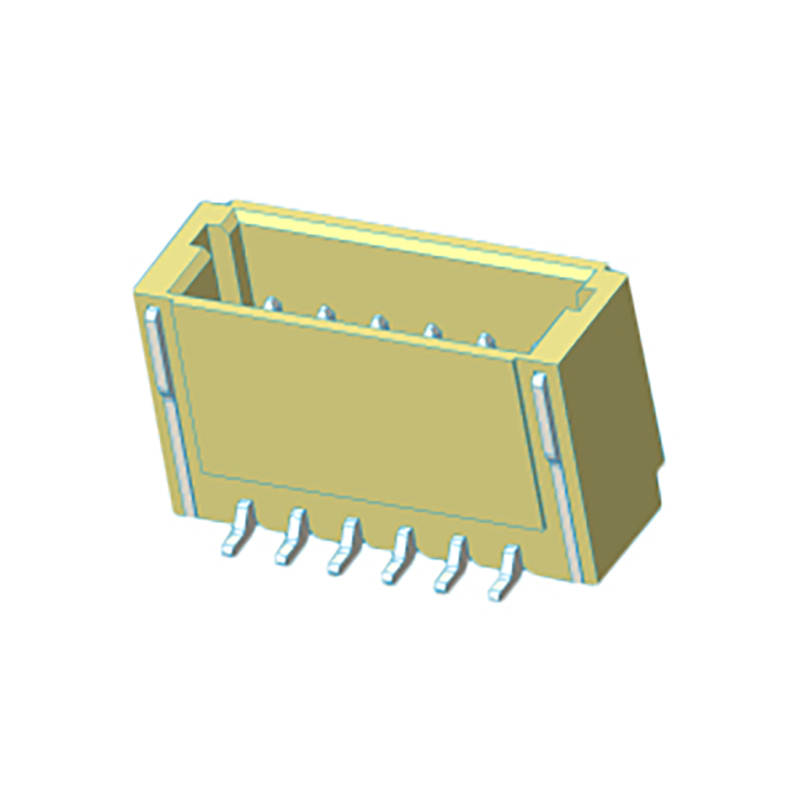

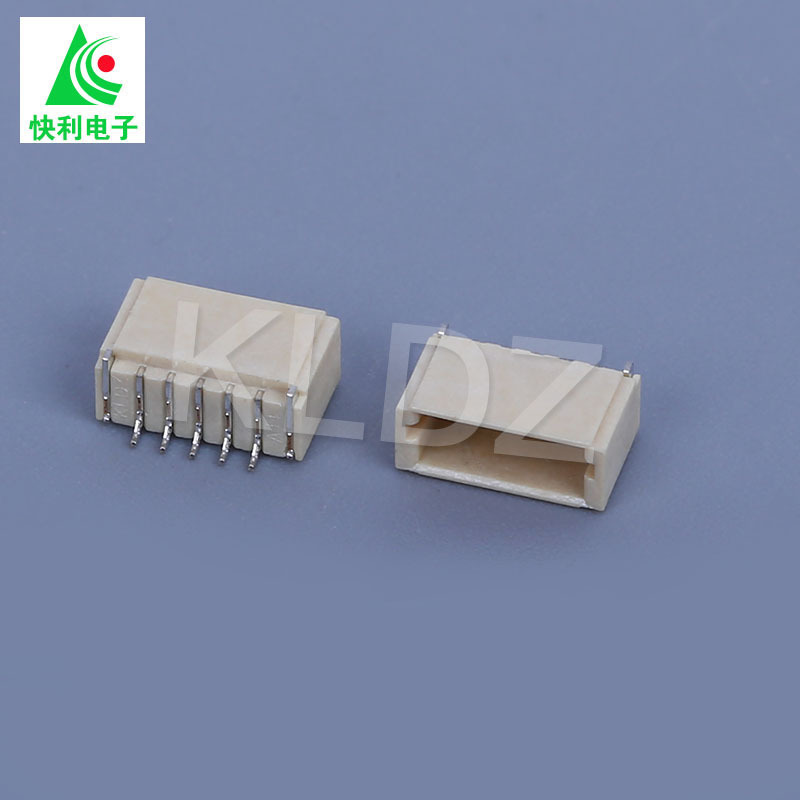

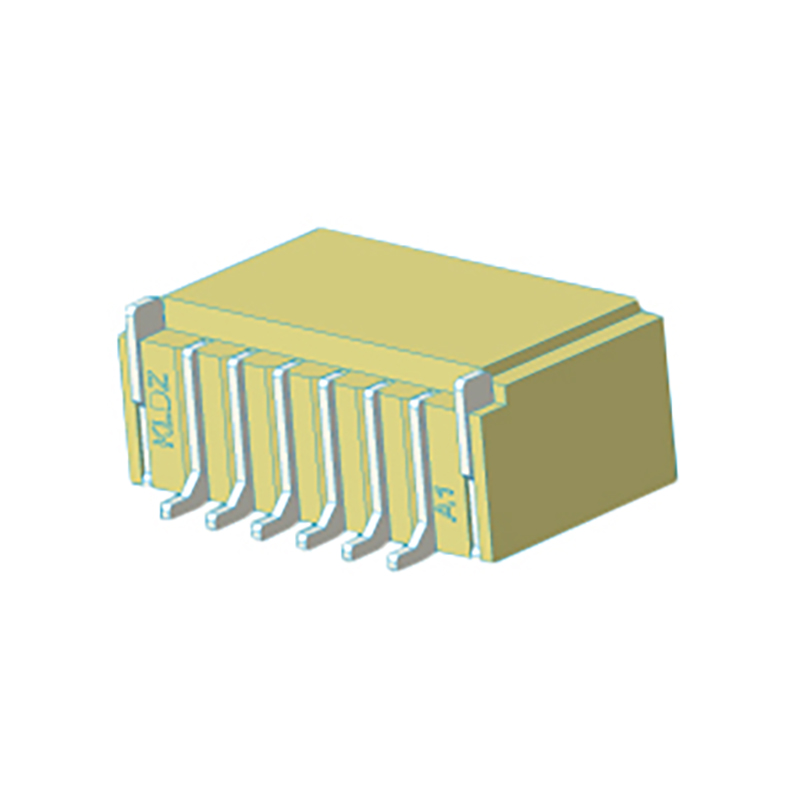

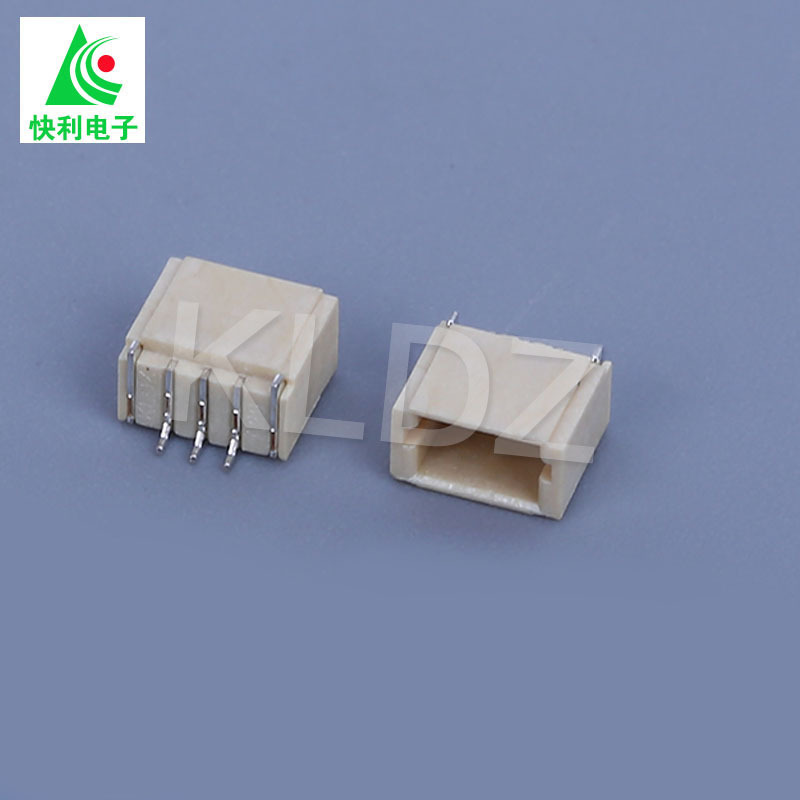

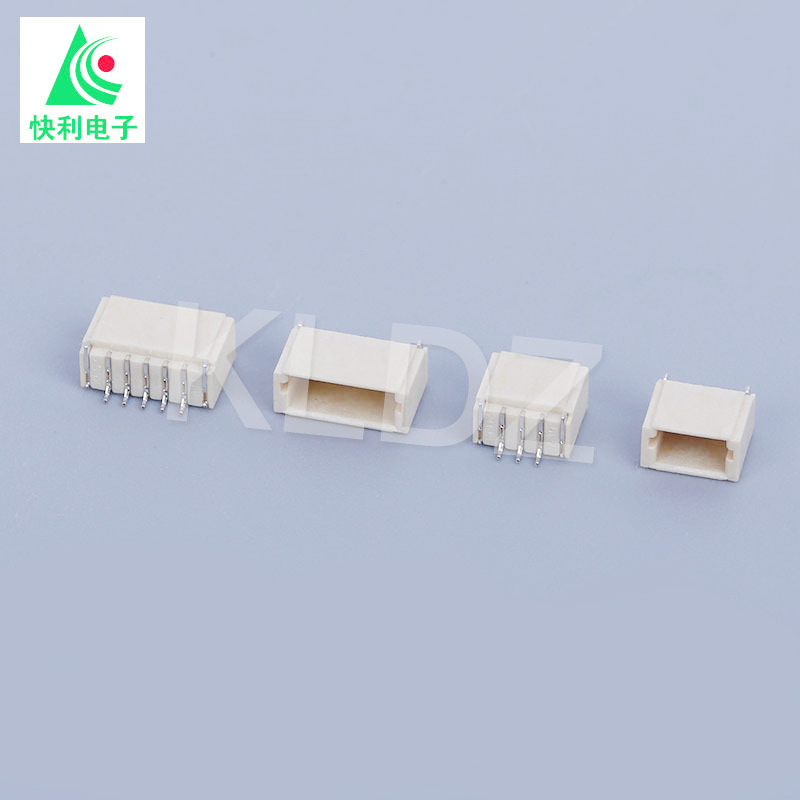

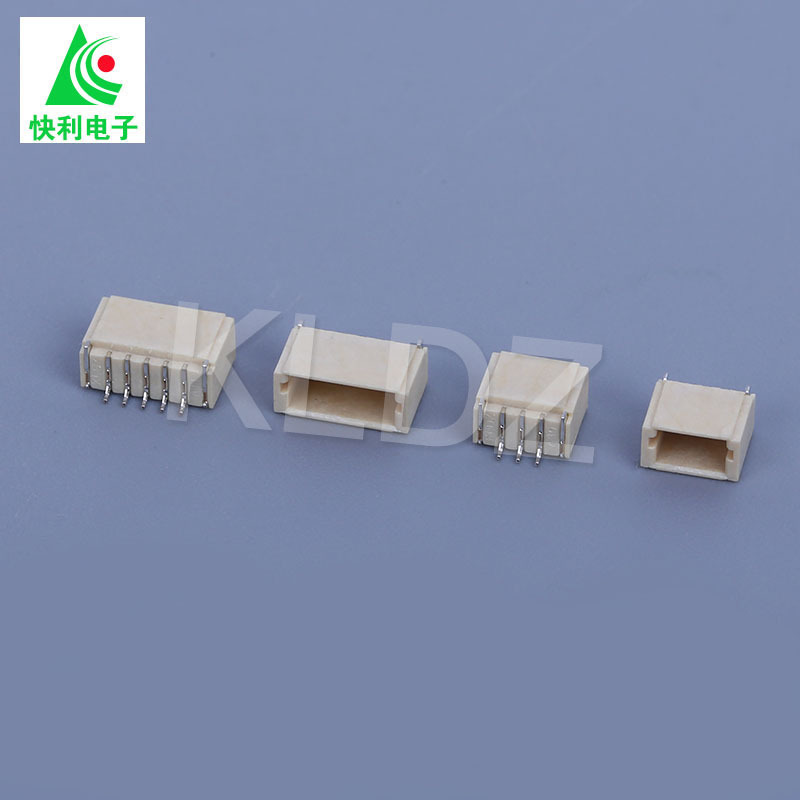

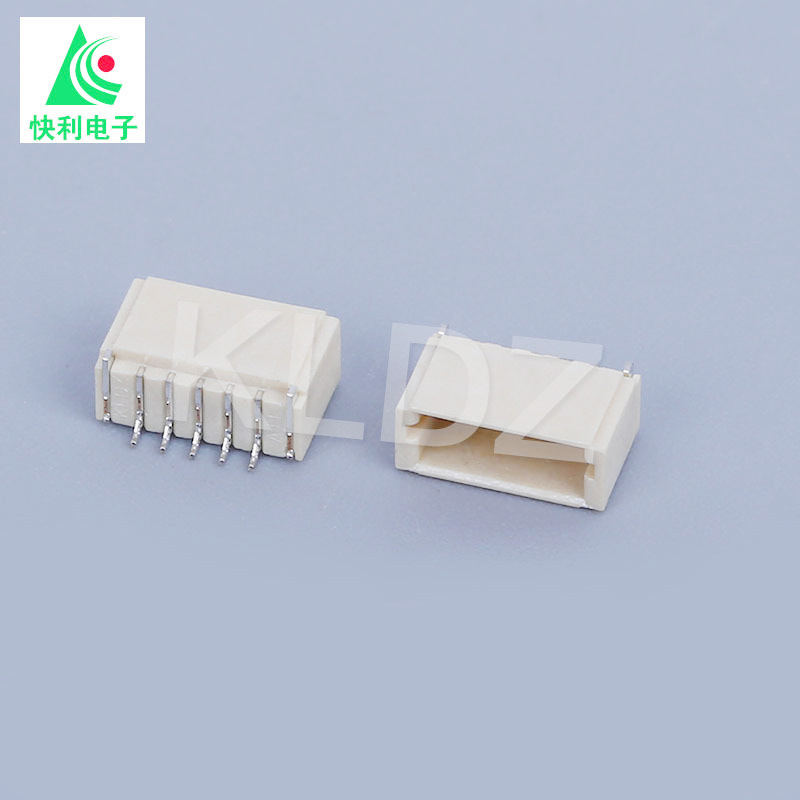

SH Series 2-16 Pin Horizontal Surface Mount Crimp-Type Bar Connectors

The SH Series 1.0mm Horizontal Surface Mount Crimp-Type Bar Connectors are compact and efficient interconnect solutions designed for high-density PCB layouts. Available in 2 to 16 pin positions, these connectors are ideal for applications that require reliable wire-to-board connections in limited-space environments, such as consumer electronics, handheld devices, industrial controls, and medical equipment.

With a 1.0mm pitch, the SH Series supports a dense signal routing configuration while maintaining electrical and mechanical integrity. The horizontal surface mount (SMT) design allows for easy integration into automated assembly lines, contributing to high production efficiency and reduced labor costs. The low-profile form factor also helps in small the overall height of electronic assemblies.

The crimp-type bar connector structure ensures secure and vibration-resistant wire retention, making it well-suited for devices exposed to mechanical stress or movement. The housing is equipped with polarization features and locking mechanisms, which aid in correct mating alignment and stable engagement, preventing misconnection and enhancing long-term reliability.

Manufactured using high-quality insulating materials and precision-plated contacts, these connectors provide good conductivity, corrosion resistance, and insulation properties. The design is compatible with standard crimp tooling, making it convenient for a wide range of production environments.

The SH Series 1.0mm Horizontal Surface Mount Crimp-Type Bar Connectors offer a reliable and compact solution for high-density wire-to-board applications. With a wide pin range, secure crimp retention, and SMT compatibility, they support both design flexibility and production efficiency in various electronic systems.

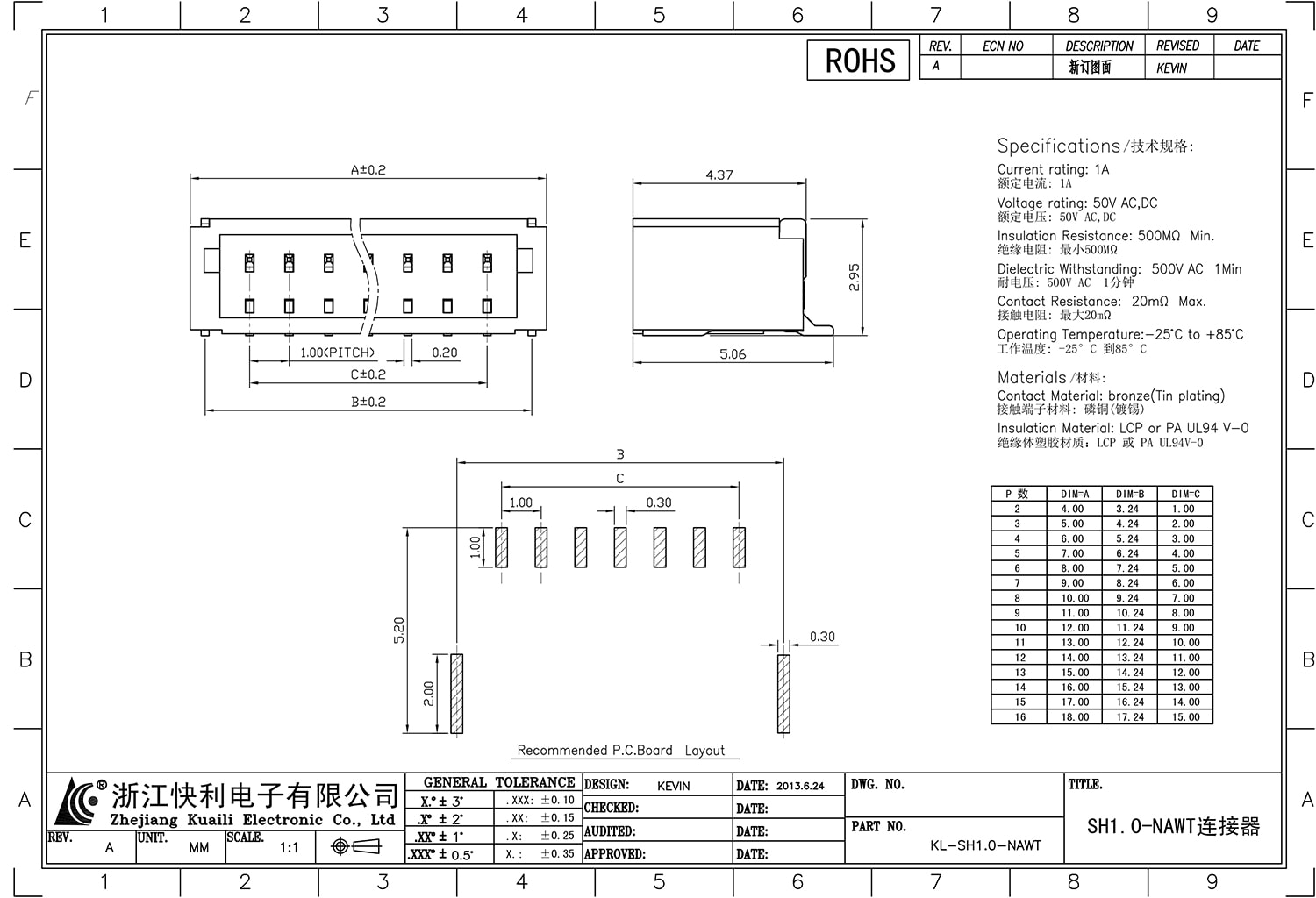

Specifications:

Basic Info.

Production Equipment

Specification:
