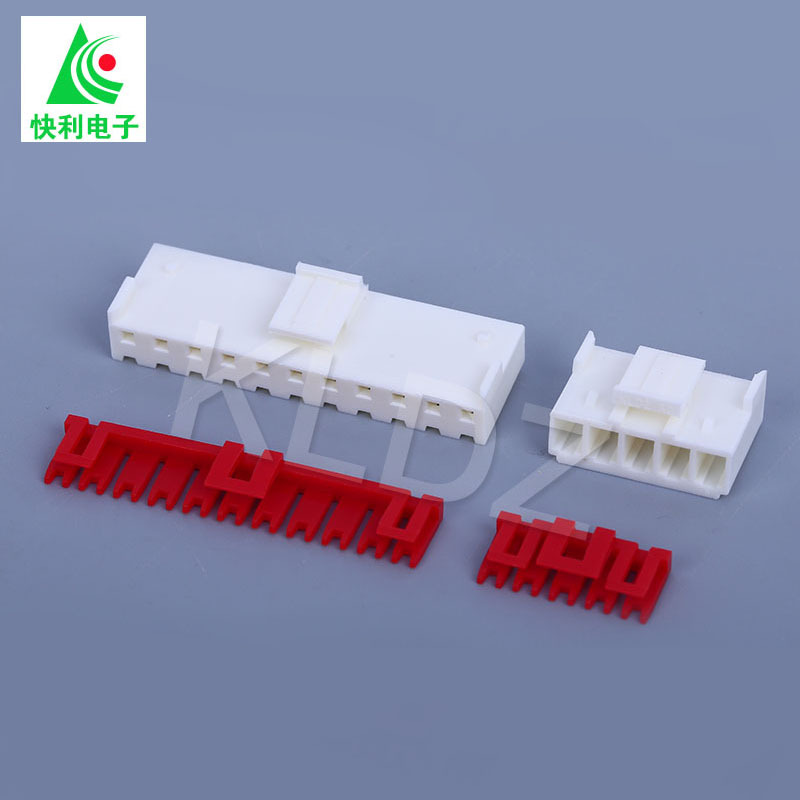

HOME / PRODUCT / Wire-to-Board Connector / 3.96mm Pitch Wire-to-Board / VHR 3.96mm 5- 15P High-Current Crimp Terminal Strip JST-Style Barrier Strip

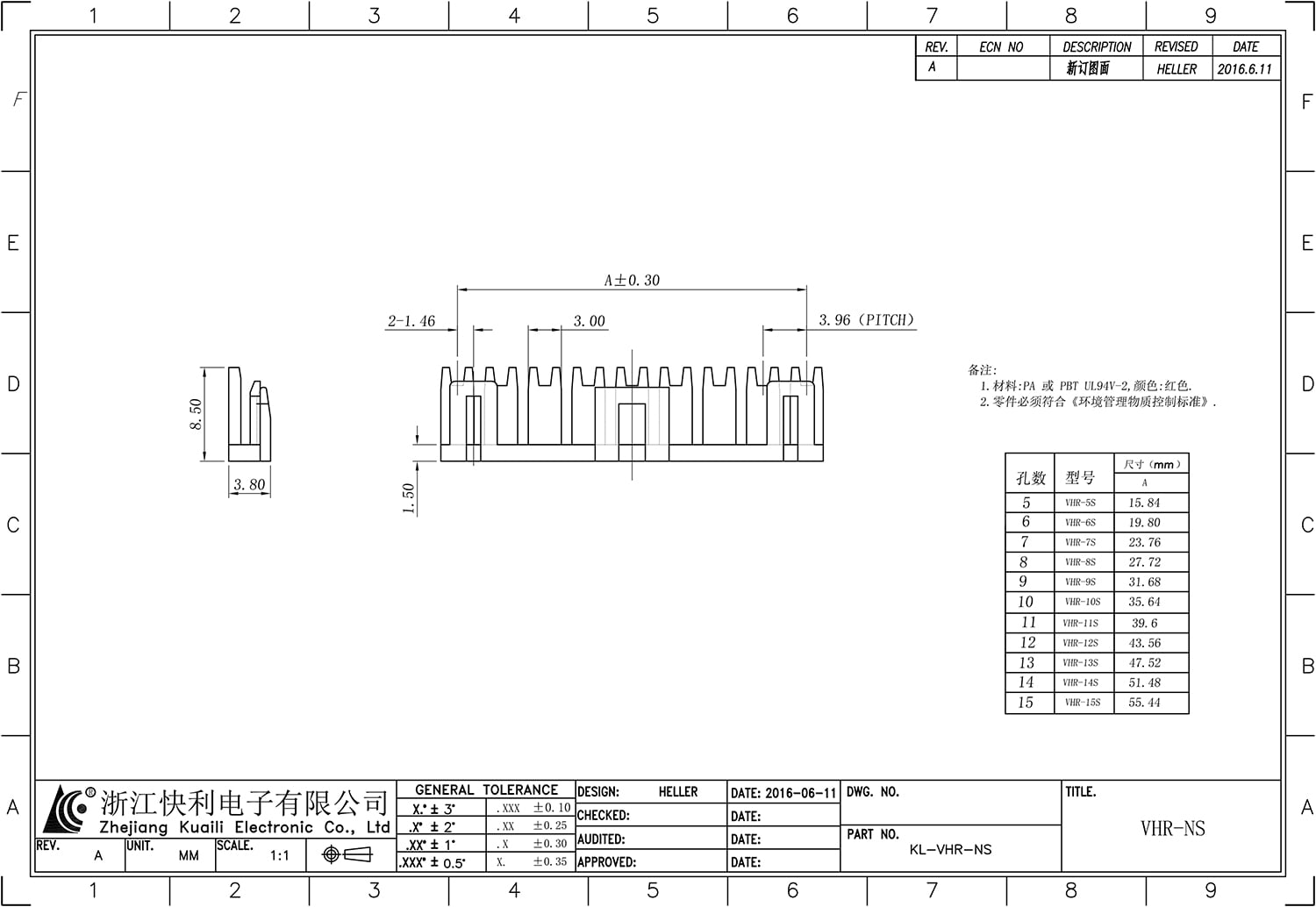

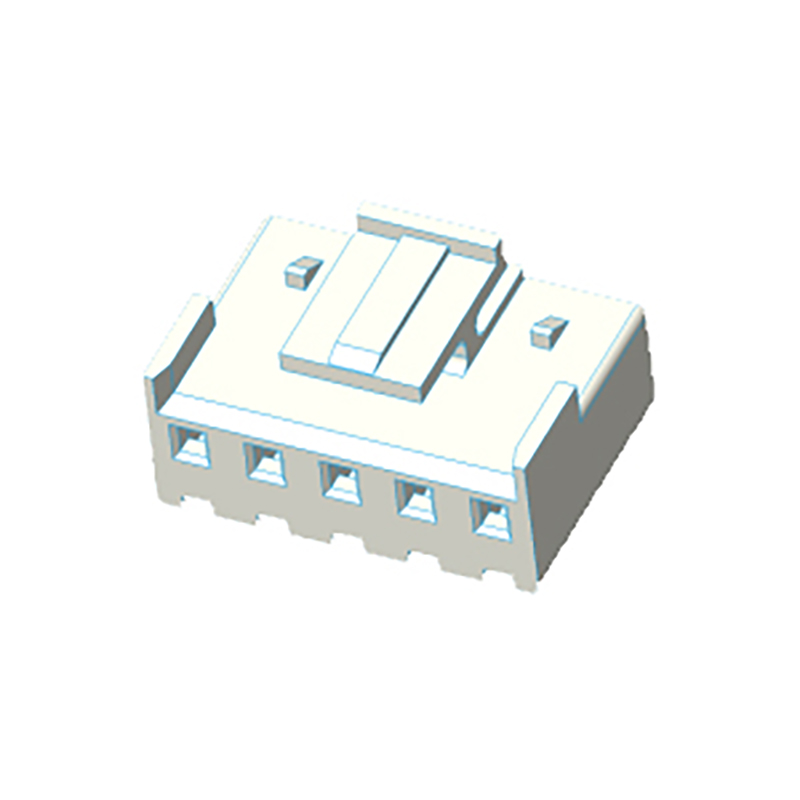

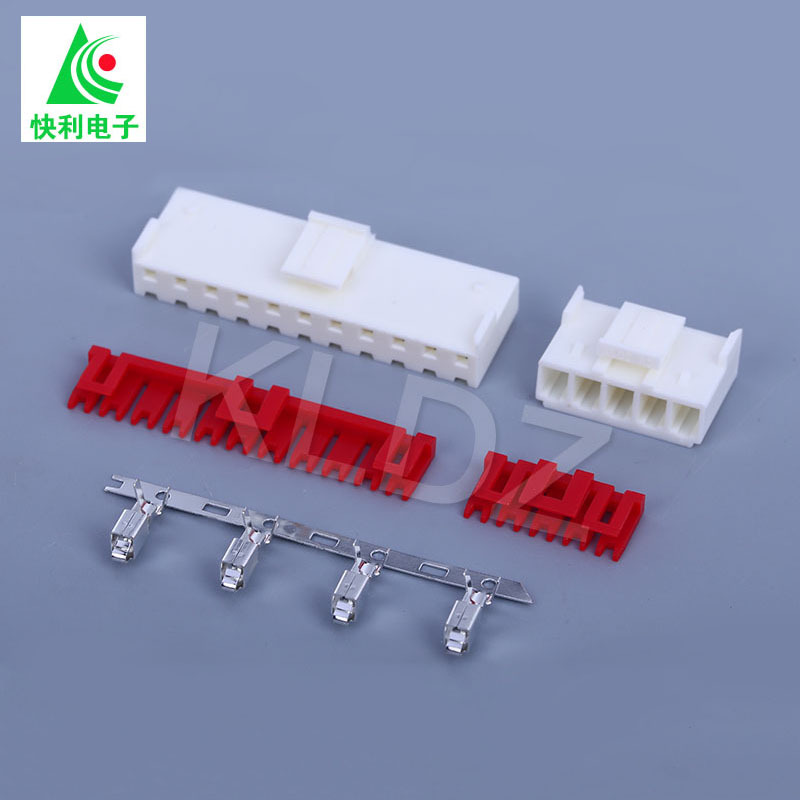

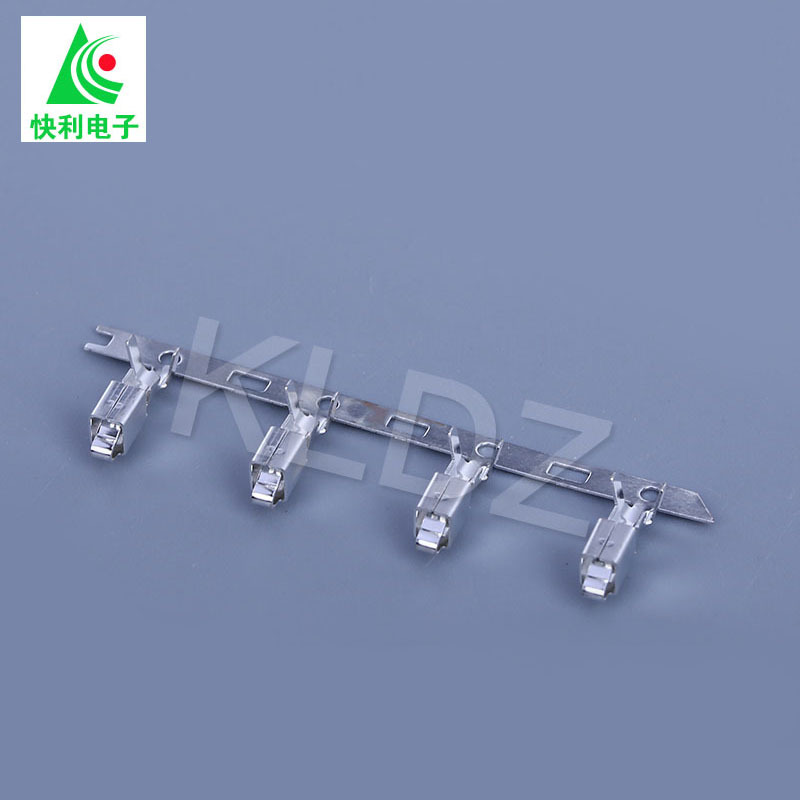

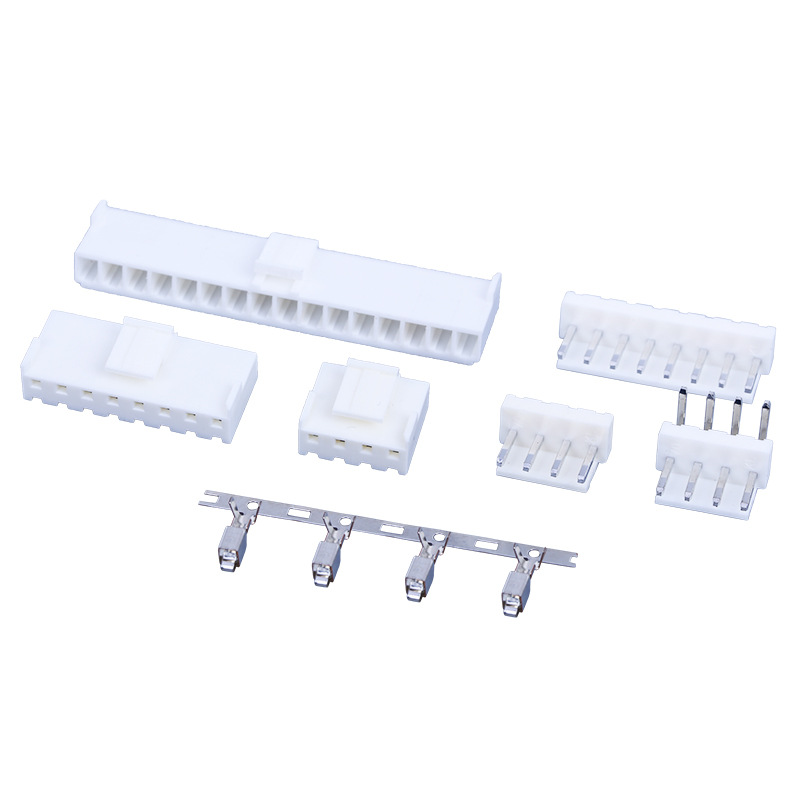

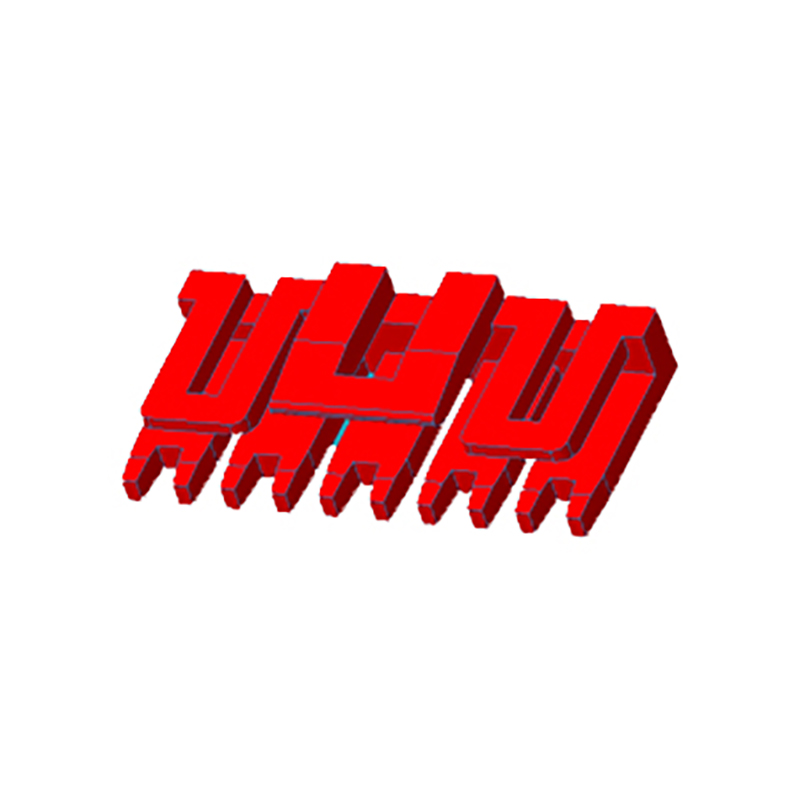

The VHR Series 3.96mm pitch, 5-15P (5 to 15 positions) Crimp Terminal Strip is a JST-style barrier strip designed for high-current applications, particularly suited for automotive use. This terminal strip offers a robust solution for electrical connections that demand both durability and high performance.
With a 3.96mm pitch, the VHR Series provides ample space for secure and efficient crimping, ensuring a reliable connection. The barrier strip design helps prevent mismating and short circuits, enhancing safety and reliability in the electrical system. The terminal strip's high-current capability makes it ideal for applications where power demands are significant, such as in automotive electronics, batteries, and power distribution systems.
The VHR Series terminal strip is built to withstand the rigors of automotive environments, withstanding temperature fluctuations, vibrations, and potential exposure to harsh chemicals. Its compact design and JST compatibility make it a versatile choice for a wide range of applications within the automotive industry. The terminal strip is easy to install and maintain, contributing to the overall efficiency of the manufacturing process.
The VHR Series 3.96mm pitch terminal strip is a reliable, high-quality option for automotive electrical systems that require secure, high-current connections.

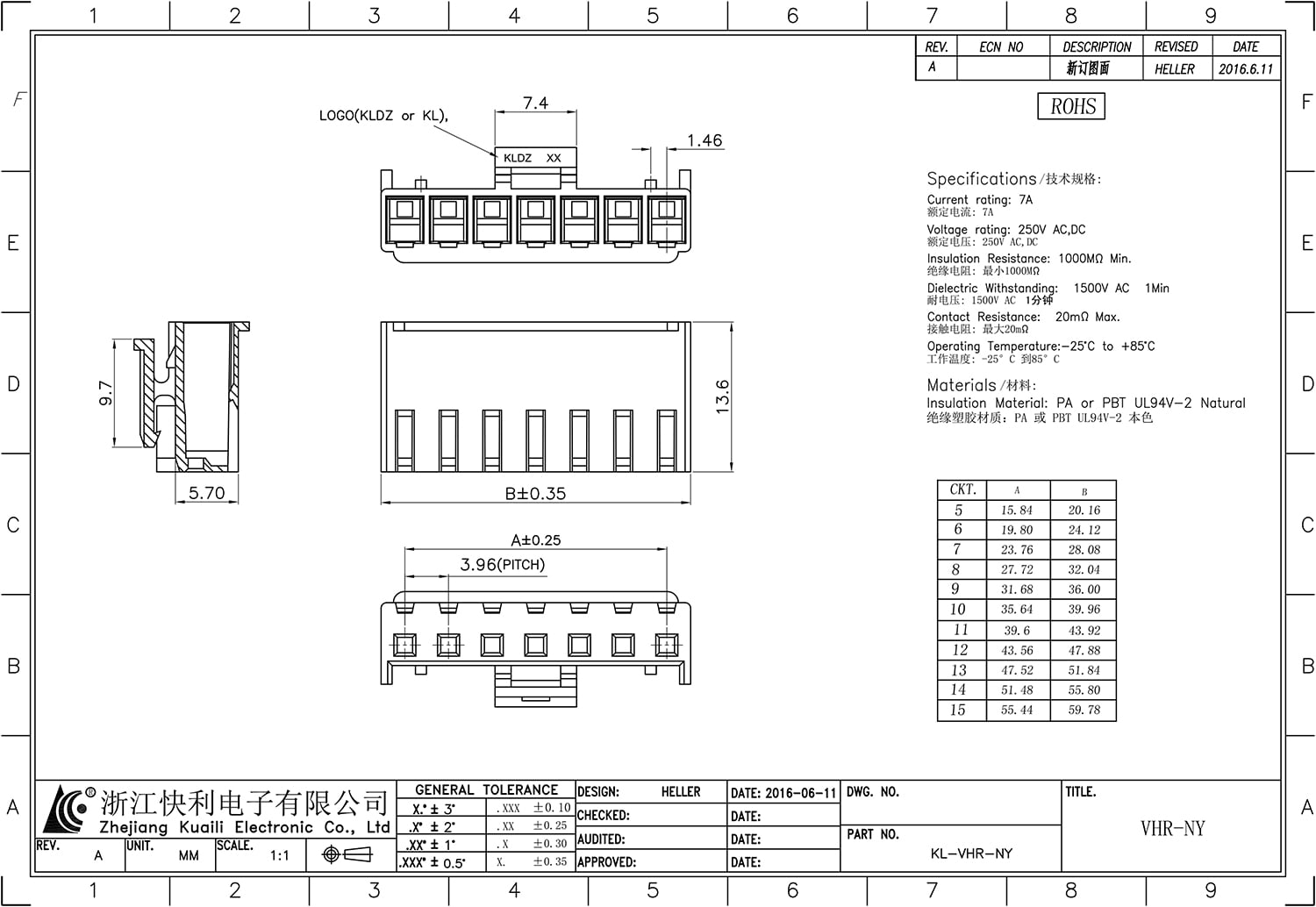

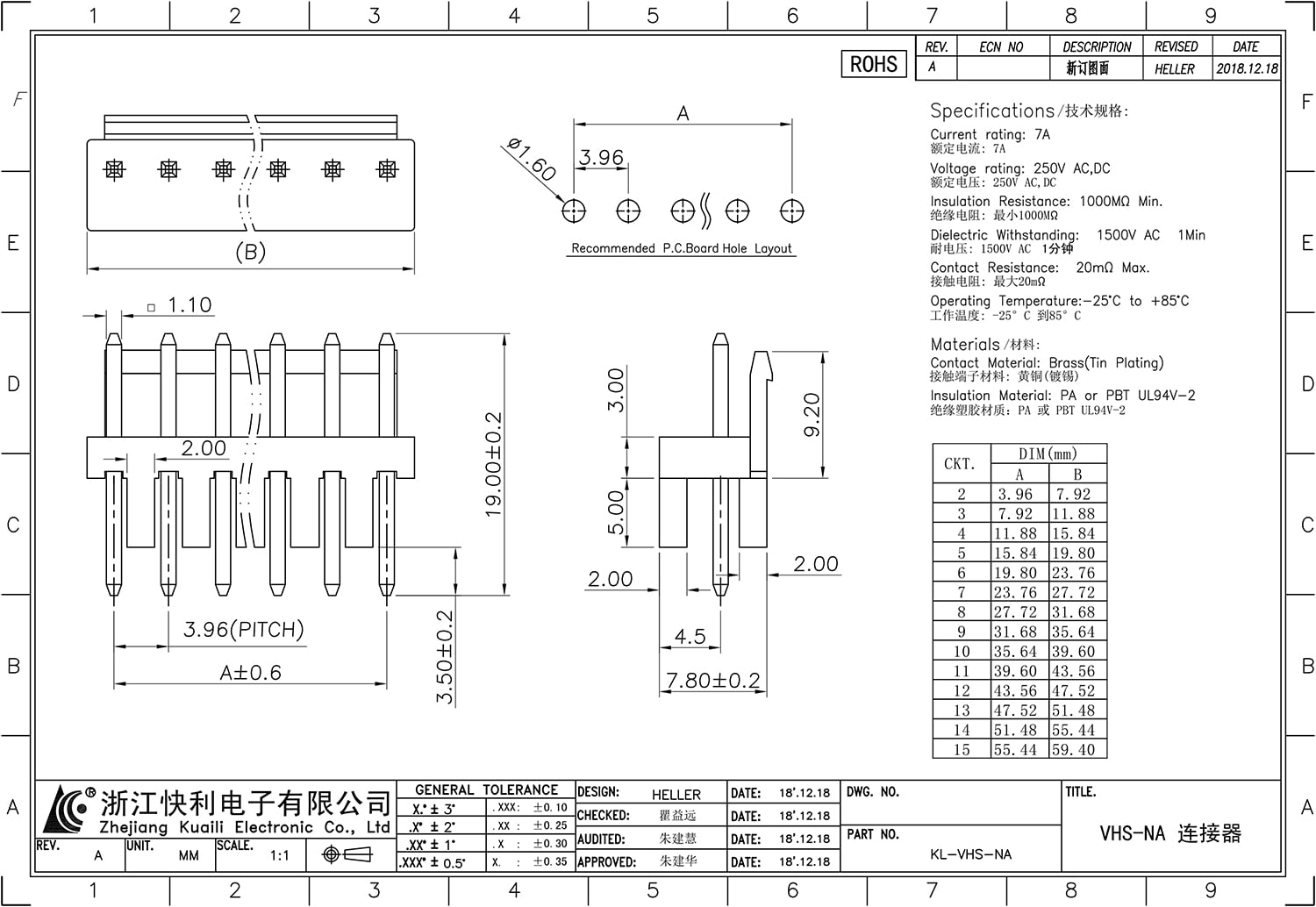

Specifications:
|
Product Category |
PCB |
|
Pitch (mm) |
3.96 |
|
Pin |
5-15P |
|
Current Rating |
7A |
|
Voltage Rating |
250V AC,DC |
|
Withstanding Voltage |
1500V AC 1 Min |
|
Contact Resistance |
20mΩ Max |
|
Operating Temperature |
- 25°C ~ 85 °C |
|
Pin Material |
Brass (Tin Plating) |
|
Housing Material |
PA or PBT UL94V-0 |
Basic Info.
|
Model NO. |
VHR-NY/NS/NA |
Application |
PCB |
|
Certification |
CE,ISO9001 ,ROHS Reach,CQC, PAHS,TSCA,PAES |
Terminal Material |
Phosphor Bronze with Tin Plating |
|
Services |
ODM/OEM |
Color |
White/Red |
|
Market |
Asia, America, Europe, Mid-East, Africa |
Main Products |
Connector, Terminal, PCB Connector |
|
Package |
Tape Reel |
Sample |
Free |
|
Delivery Time |
Stock goods within 1 day, Customized 7 days |
Terms of Trade |
EXW, FOB, CIF, CPT |
|
Specification |
Electrical terminal Connector |
Trademark |
KUAILI |
|
Origin |
Zhejiang, China (Mainland) |
HS Code |
8736909000 |
Production Equipment
|
Equipment Name |
QTY |
Origin |
|
Injection Molding Machine |
64 |
China |
|
High-speed Stamping Press Machine |
37 |
Taiwan &Japan |
|
Automated Press-Fit Production Line |
103 |
China |
|
SMT Patch Packing Inspection Machine |
128 |
China |
|
Automated Tape-and-Reel Packaging |
20 |
China |
|
Fully Automatic Optical Counting Packing machine |
1 |
China |
|
Y-axis Inspection Machine |
8 |
Germany |
|
Sodick EDM Machine |
3 |
China |
|
Sodick Wire EDM Machine |
3 |
China |
