HOME / PRODUCT / Wire-to-Board Connector / 2.5mm Pitch Wire-to-Board / JST-Style 2.5mm 2- 16P IP65 White Barrier Crimp Terminal Strip Wire to Wire Connector

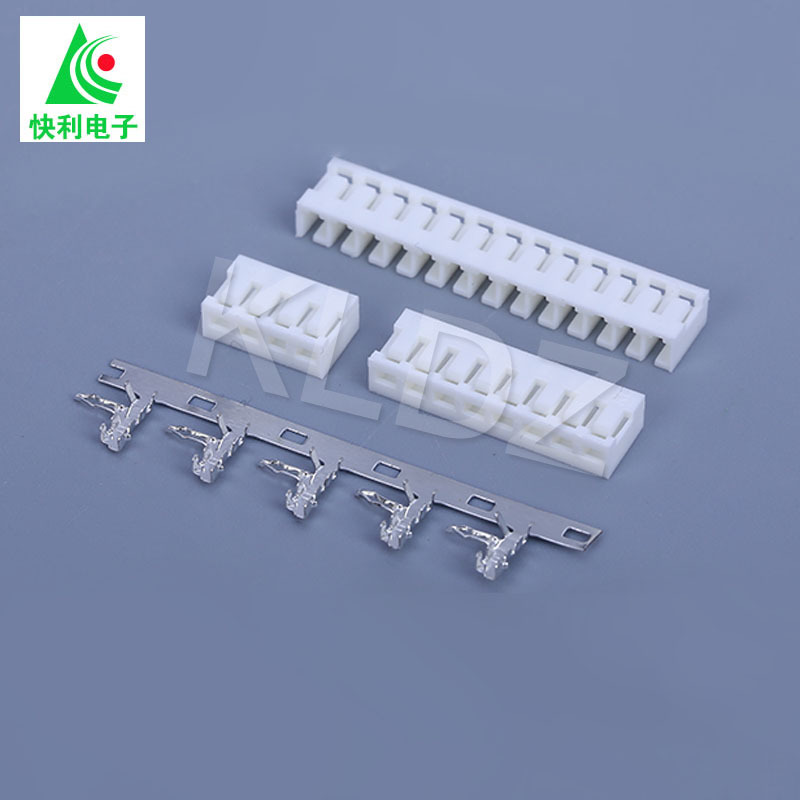

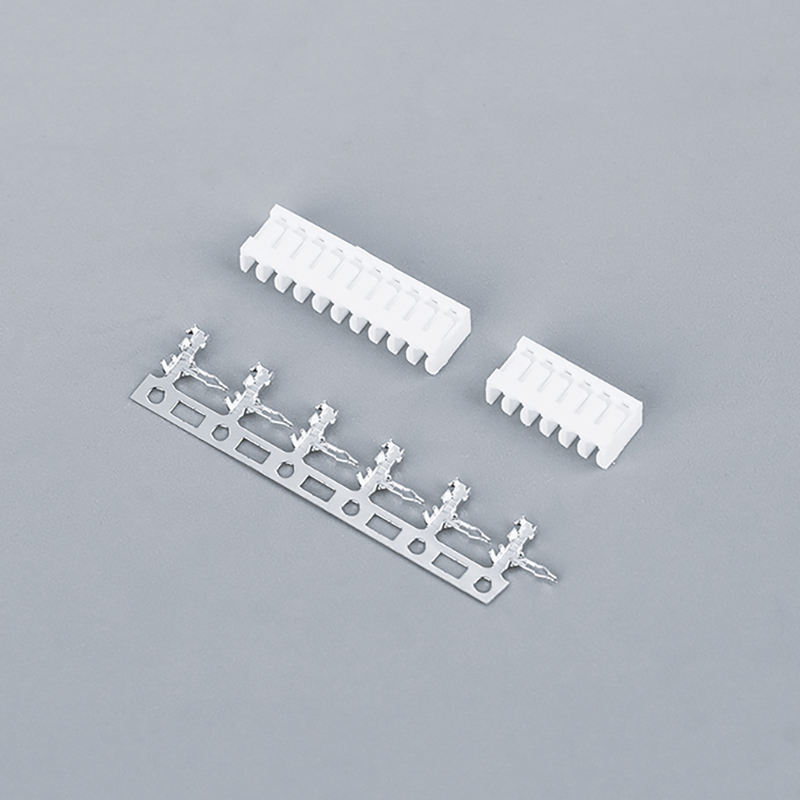

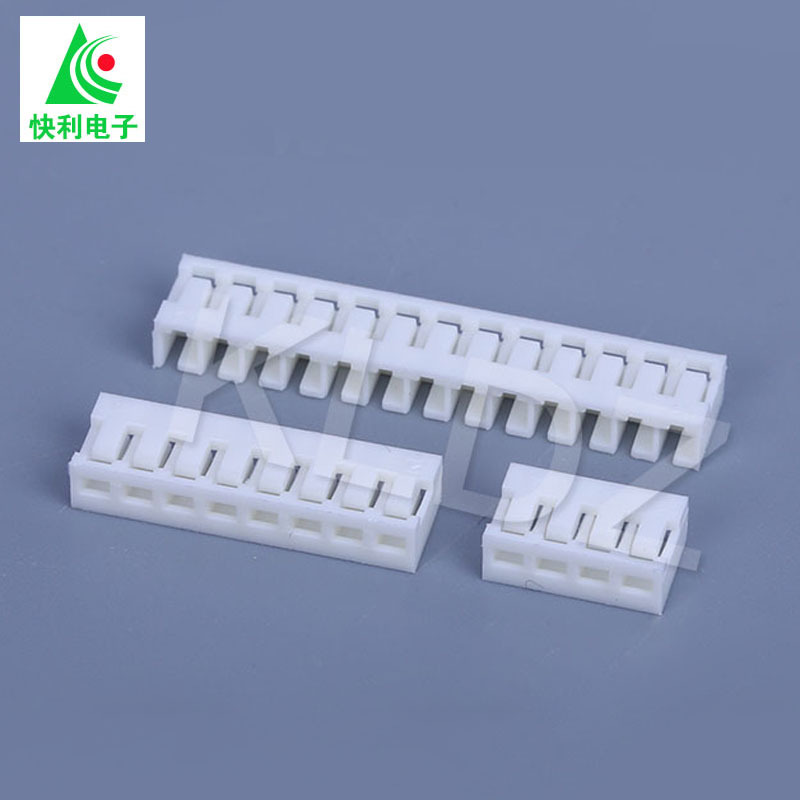

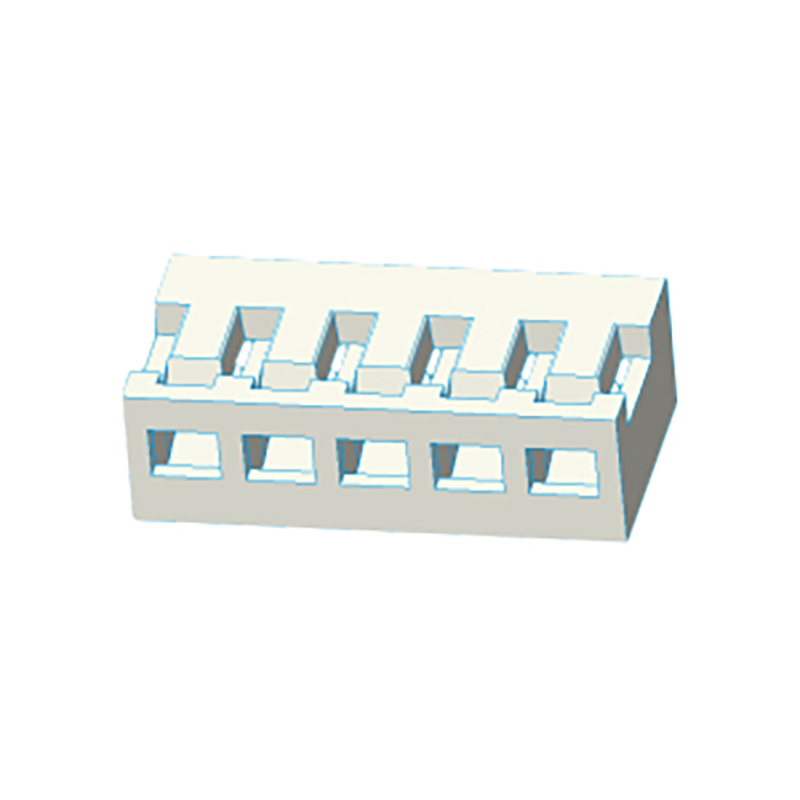

The JC25 Series 2.5mm pitch crimp terminal strip offers a robust wire-to-wire connection solution designed for critical environments. Featuring 2-16P configurations in a compact white housing, this JST-style barrier strip meets IP65 standards, ensuring protection against dust and water ingress.
Key Features:
Precision Contacts: 2.5mm spacing accommodates high-density wiring while preventing short circuits

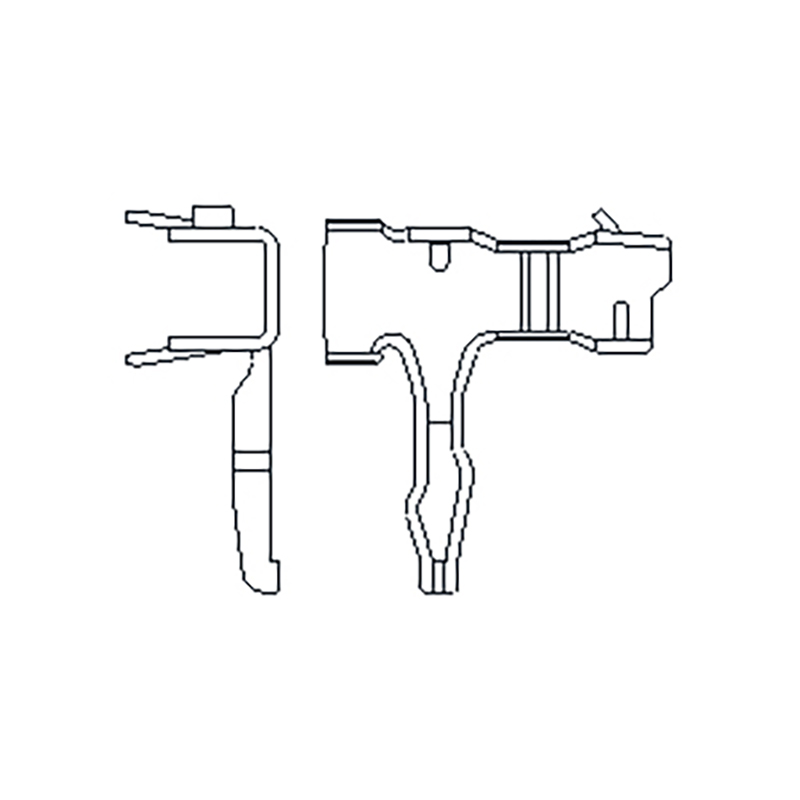

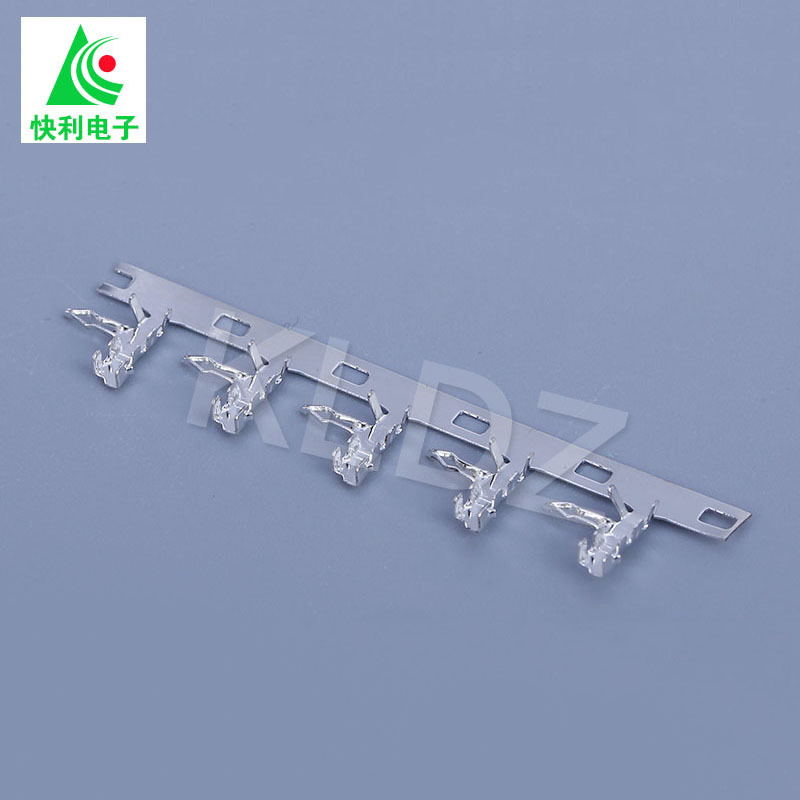

Secure Crimping: Brass terminals with tin plating ensure stable conductivity and corrosion resistance
Environmental Resilience: IP65 rating safeguards connections in humid or dusty conditions
Industry Compliance: Suitable for medical equipment and clean energy systems requiring reliable power/signal transmission
Typical Applications:
• Patient monitoring devices
• Solar power junction boxes
• Laboratory instrumentation
• Wind turbine control systems
The connector's polarized design prevents misalignment during assembly, while the flame-retardant housing (UL94 V-0) enhances safety in sensitive installations. Its combination of durability and precision makes it ideal for applications where connection integrity cannot be compromised.
Specifications:
|
Product Category |
PCB |
|
Pitch (mm) |
2.5 |
|
Pin |
2-16P |
|
Current Rating |
3.0A |
|
Voltage Rating |
250V AC,DC |
|
Withstanding Voltage |
1000V AC 1 Min |
|
Contact Resistance |
1000mΩ Min |
|
Operating Temperature |
- 25°C ~ 85 °C |
|
Pin Material |
Bronze (Tin Plating) |
|
Housing Material |
PA or PBT UL94V-0 |
Basic Info.
|
Model NO. |
JC25-NY |
Application |
PCB |
|
Certification |
CE,ISO9001 ,ROHS Reach,CQC, PAHS,TSCA,PAES |
Terminal Material |
Phosphor Bronze with Tin Plating |
|
Services |
ODM/OEM |
Color |
White/Beige |
|
Market |
Asia, America, Europe, Mid-East, Africa |
Main Products |
Connector, Terminal, PCB Connector |
|
Package |
Tape Reel |
Sample |
Free |
|
Delivery Time |
Stock goods within 1 day, Customized 7 days |
Terms of Trade |
EXW, FOB, CIF, CPT |
|
Specification |
Electrical terminal Connector |
Trademark |
KUAILI |
|
Origin |
Zhejiang, China (Mainland) |
HS Code |
8736909000 |
Production Equipment
|
Equipment Name |
QTY |
Origin |
|
Injection Molding Machine |
64 |
China |
|
High-speed Stamping Press Machine |
37 |
Taiwan &Japan |
|
Automated Press-Fit Production Line |
103 |
China |
|
SMT Patch Packing Inspection Machine |
128 |
China |
|
Automated Tape-and-Reel Packaging |
20 |
China |
|
Fully Automatic Optical Counting Packing machine |
1 |
China |
|
Y-axis Inspection Machine |
8 |
Germany |
|
Sodick EDM Machine |
3 |
China |
|
Sodick Wire EDM Machine |
3 |
China |

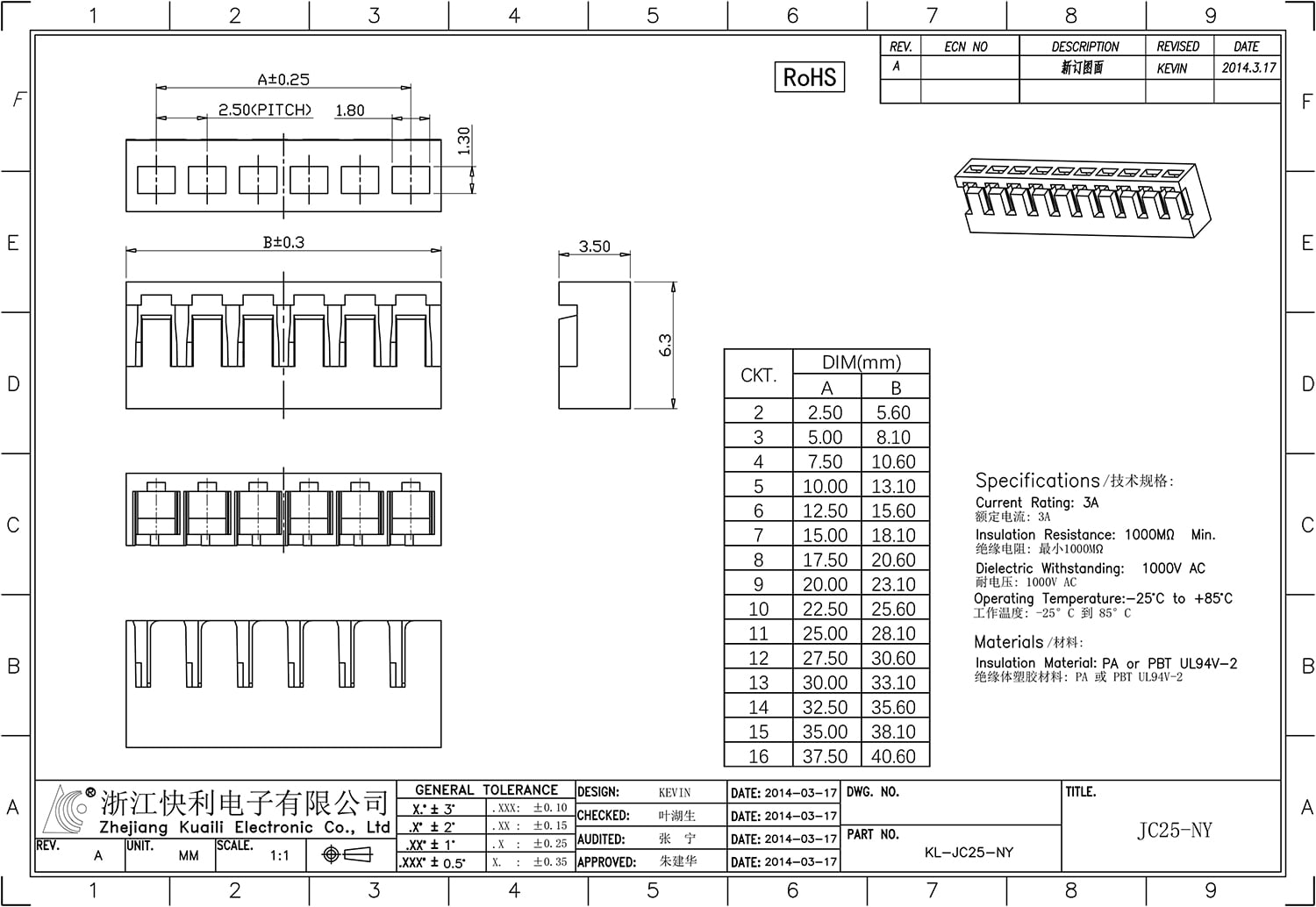

Specification:
