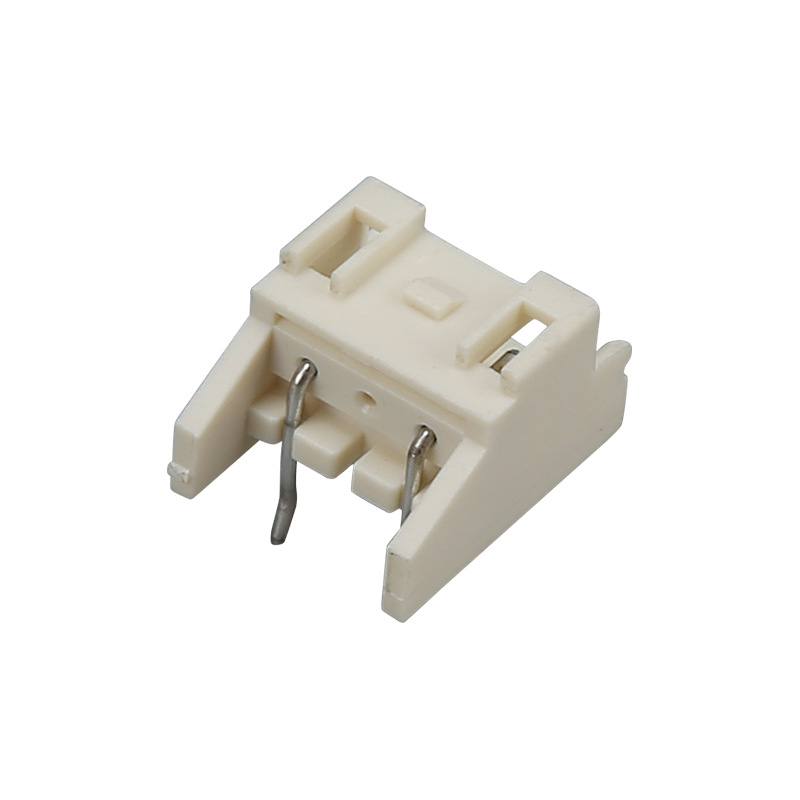

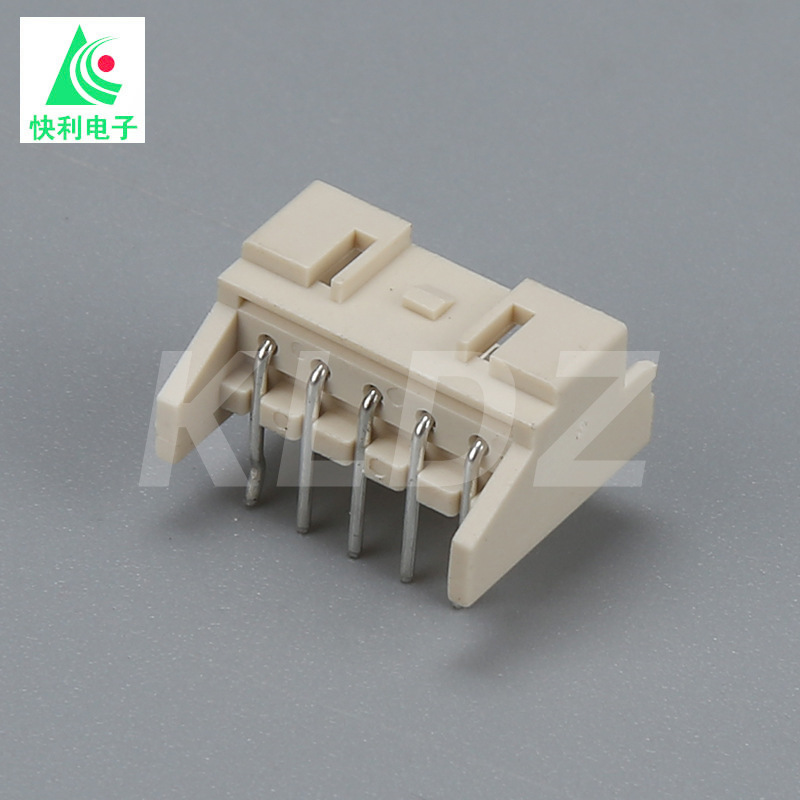

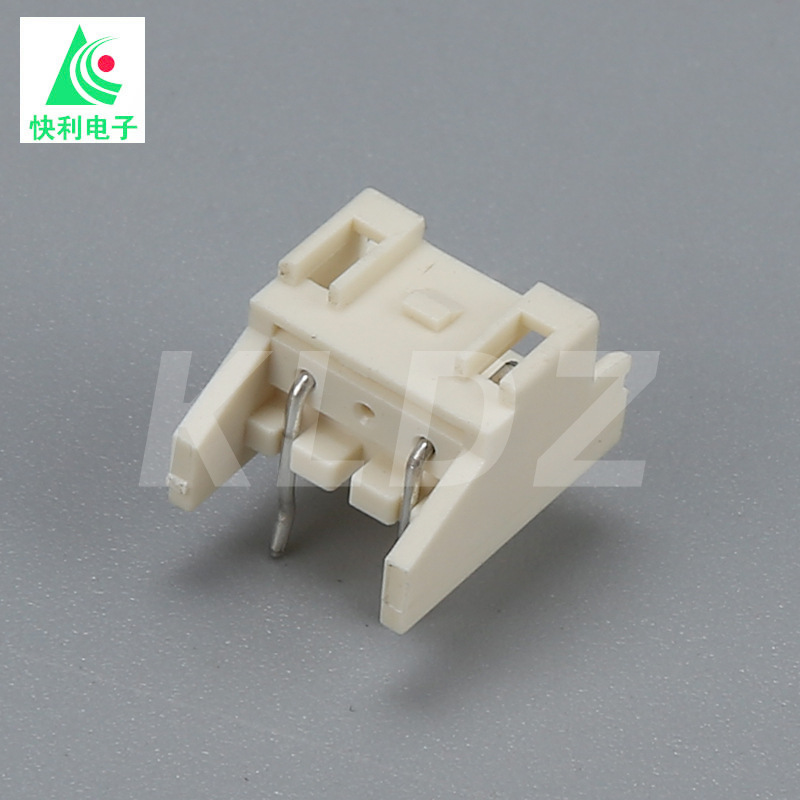

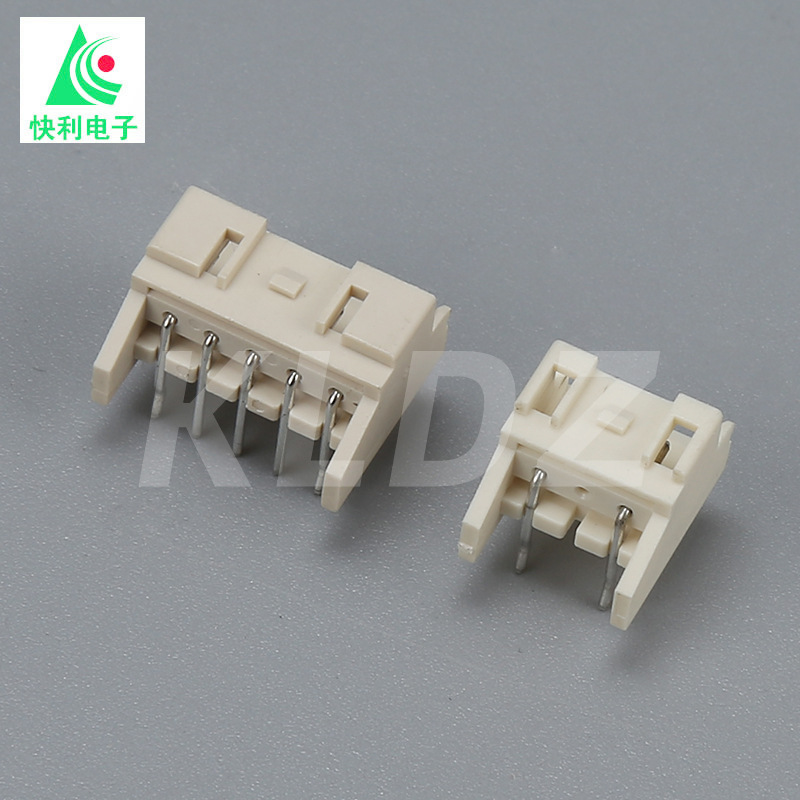

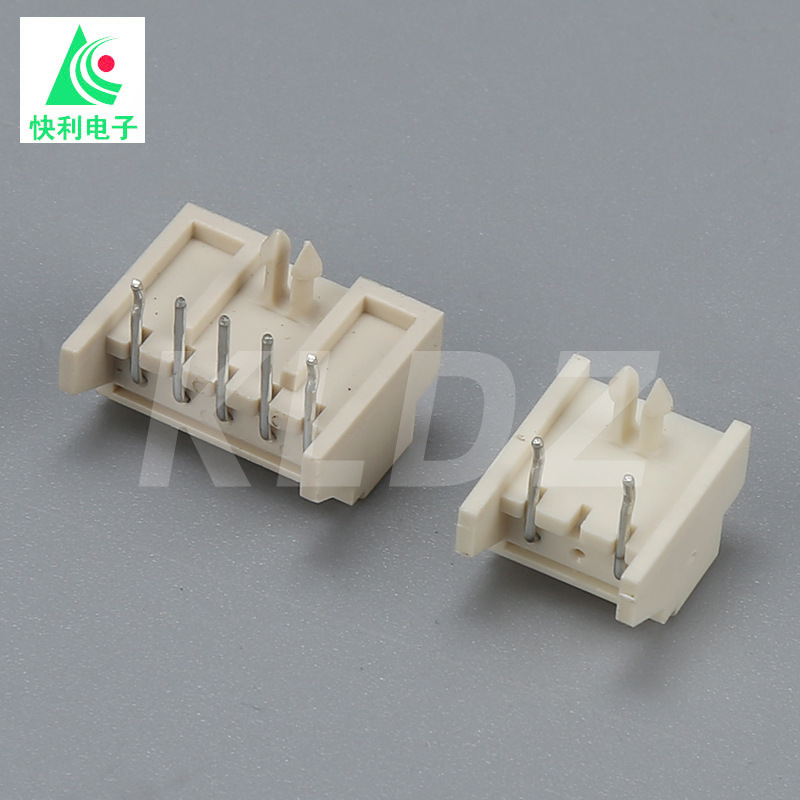

The XA-NAD series wire connector provides a reliable JST-equivalent solution for applications requiring precision interconnections. This 2.5mm pitch polarized socket features a positive-locking latching clip mechanism that ensures vibration-resistant connections in dynamic environments.
Technical Highlights:
Foolproof Design: Polarized housing prevents reverse mating
Audible Engagement: Tactile click confirms secure latch engagement
Optimized Contacts: Phosphor bronze terminals with gold plating (0.5μm min) ensure <10mΩ contact resistance
Durability: Rated for 30+ mating cycles without performance degradation
Environmental Performance:
• Operating temperature: -25°C to +85°C
• Moisture resistance: 85% RH non-condensing
• Withstands 5-15G vibration (frequency-dependent)
Typical Applications:
Robotics joint wiring harnesses
Automotive sensor arrays
Portable medical diagnostic devices
Industrial IoT edge nodes
The connector's compact footprint (12.5mm height) accommodates space-constrained designs while maintaining 250V AC/DC voltage rating. Pre-loaded terminal versions available for automated assembly processes.

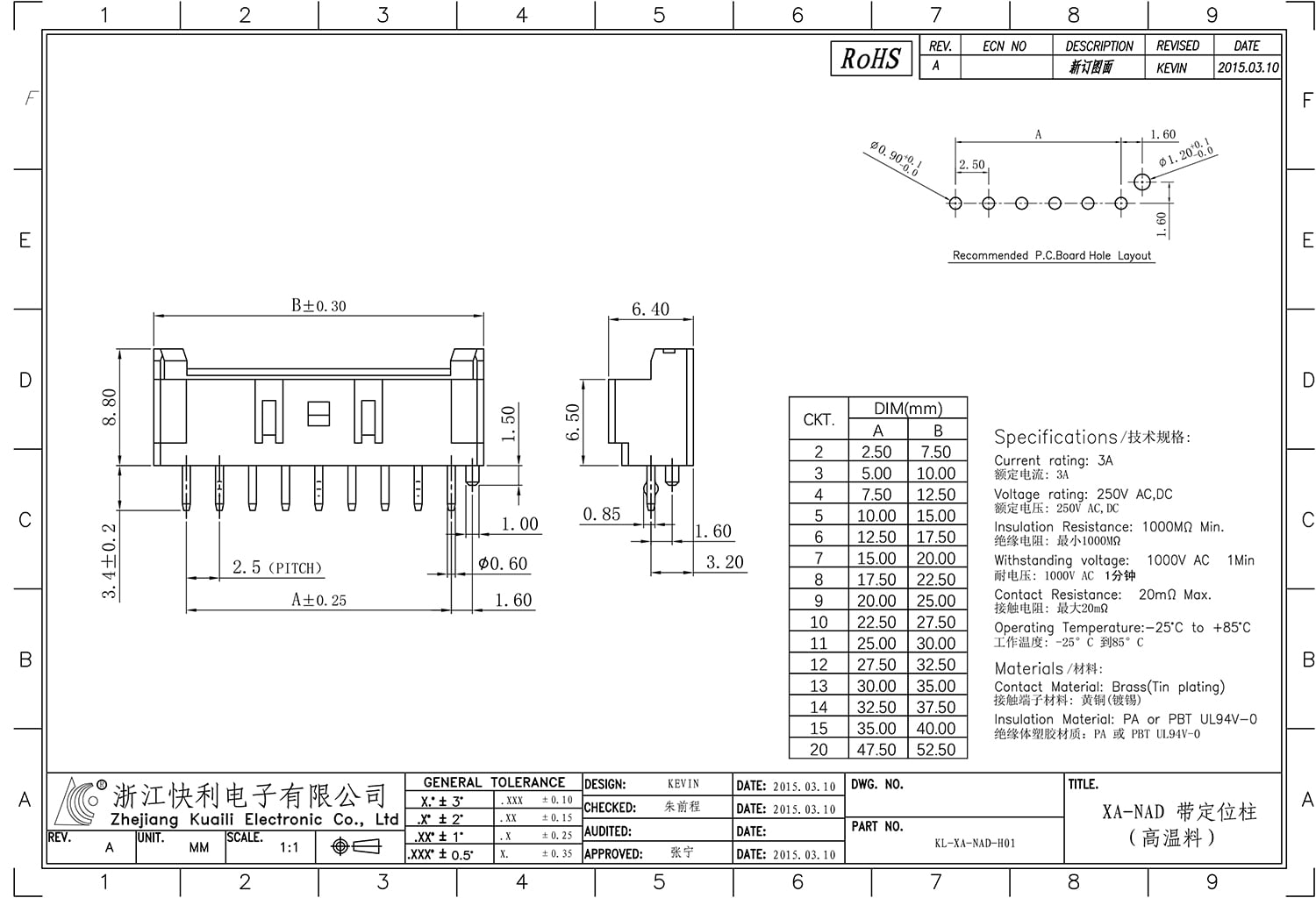

Specifications:
|
Product Category |
PCB |
|
Pitch (mm) |
2.5 |
|
Pin |
2-20P |
|
Current Rating |
3.0A |
|
Voltage Rating |
250V AC,DC |
|
Withstanding Voltage |
1000V AC 1 Min |
|
Contact Resistance |
20mΩ Max |
|
Operating Temperature |
- 25°C ~ 85 °C |
|
Pin Material |
Bronze (Tin Plating) |
|
Housing Material |
PA or PBT UL94V-0 |
Basic Info.
|
Model NO. |
XA-NAD |
Application |
PCB |
|
Certification |
CE,ISO9001 ,ROHS Reach,CQC, PAHS,TSCA,PAES |
Terminal Material |
Phosphor Bronze with Tin Plating |
|
Services |
ODM/OEM |
Color |
White/Beige |
|
Market |
Asia, America, Europe, Mid-East, Africa |
Main Products |
Connector, Terminal, PCB Connector |
|
Package |
Tape Reel |
Sample |
Free |
|
Delivery Time |
Stock goods within 1 day, Customized 7 days |
Terms of Trade |
EXW, FOB, CIF, CPT |
|
Specification |
Electrical terminal Connector |
Trademark |
KUAILI |
|
Origin |
Zhejiang, China (Mainland) |
HS Code |
8736909000 |
Production Equipment
|
Equipment Name |
QTY |
Origin |
|
Injection Molding Machine |
64 |
China |
|
High-speed Stamping Press Machine |
37 |
Taiwan &Japan |
|
Automated Press-Fit Production Line |
103 |
China |
|
SMT Patch Packing Inspection Machine |
128 |
China |
|
Automated Tape-and-Reel Packaging |
20 |
China |
|
Fully Automatic Optical Counting Packing machine |
1 |
China |
|
Y-axis Inspection Machine |
8 |
Germany |
|
Sodick EDM Machine |
3 |
China |
|
Sodick Wire EDM Machine |
3 |
China |
