HOME / PRODUCT / Wire-to-Board Connector / 2.0mm Pitch Wire-to-Board / JST-Style 2.0mm Crimp Terminal Block 2-16P High-Density Barrier Strip

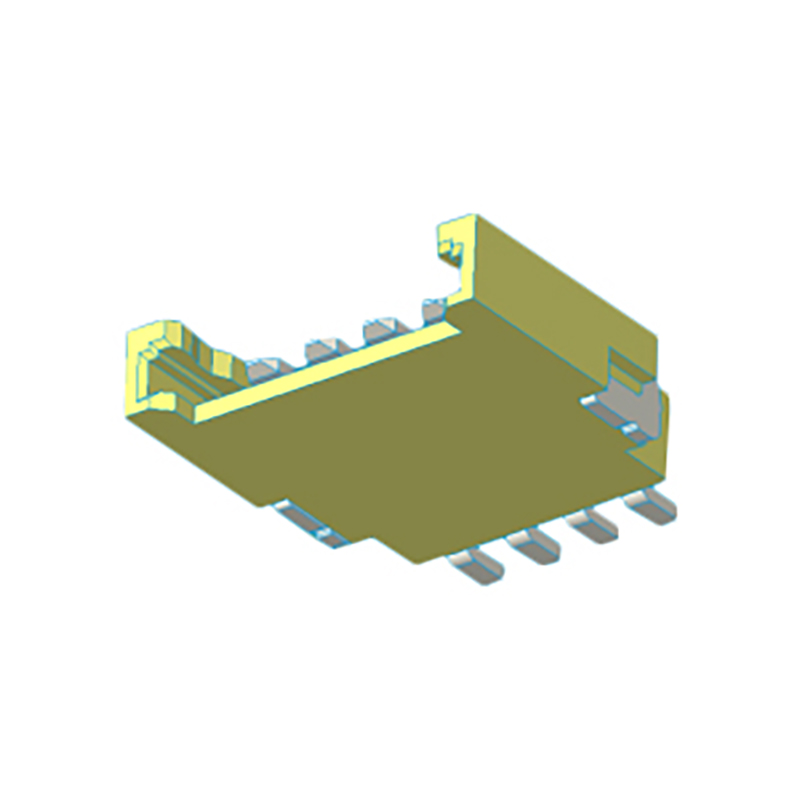

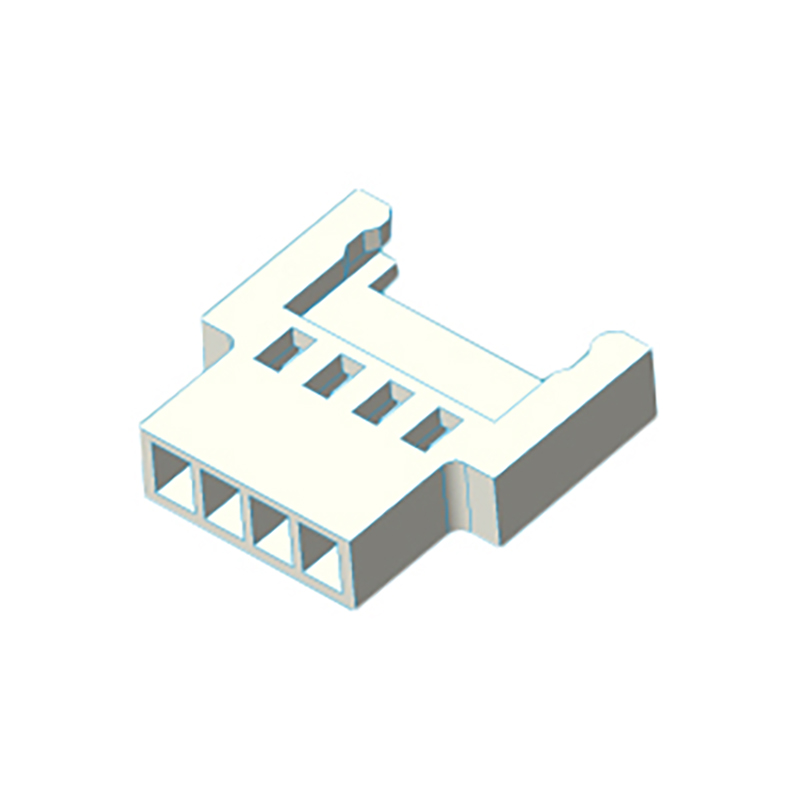

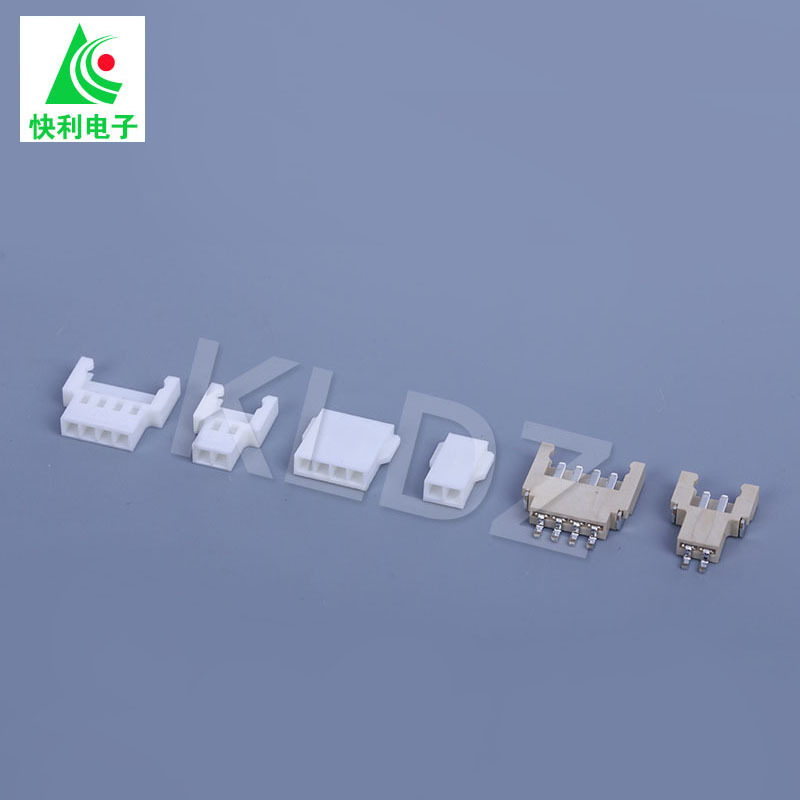

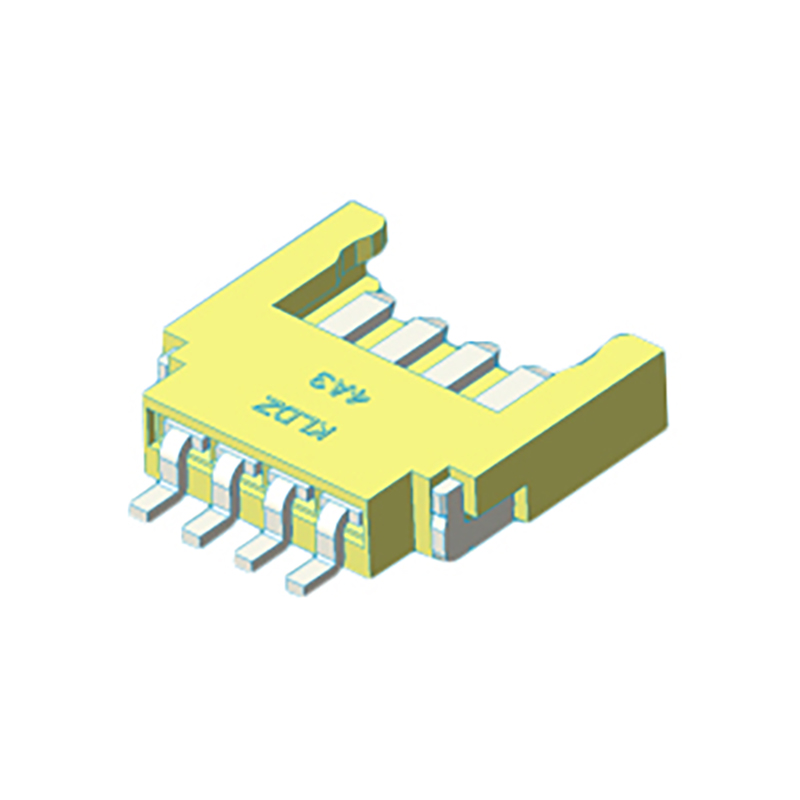

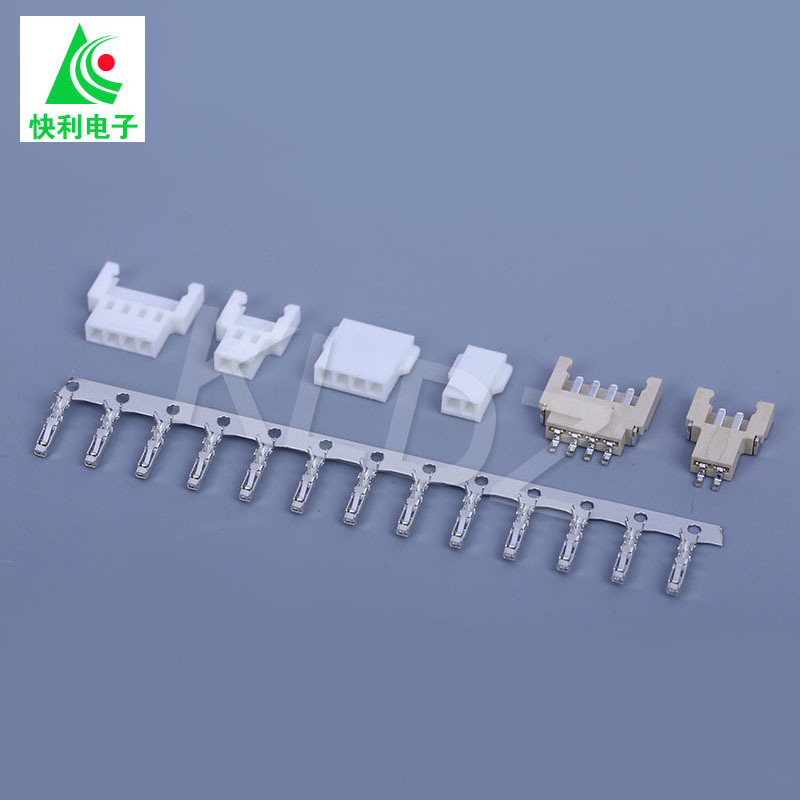

The CB Series 2.0mm Crimp Terminal Block 2-16P High-Density Barrier Strip JST-Style is a versatile and reliable solution for industrial controls and power electronics applications. Designed to provide secure and efficient electrical connections, this terminal block is particularly ideal for environments requiring high-density wiring and space optimization.
Constructed with a durable insulating body, the terminal block features a 2.0mm pitch, allowing it to accommodate a wide range of wire gauges for both signal and power transmission. Its high-density barrier strip design enables multiple connections within a compact space, making it suitable for tight or crowded electrical enclosures. This feature is crucial in industrial control systems and power electronics where small the size of wiring terminals is essential while maintaining the integrity of electrical performance.

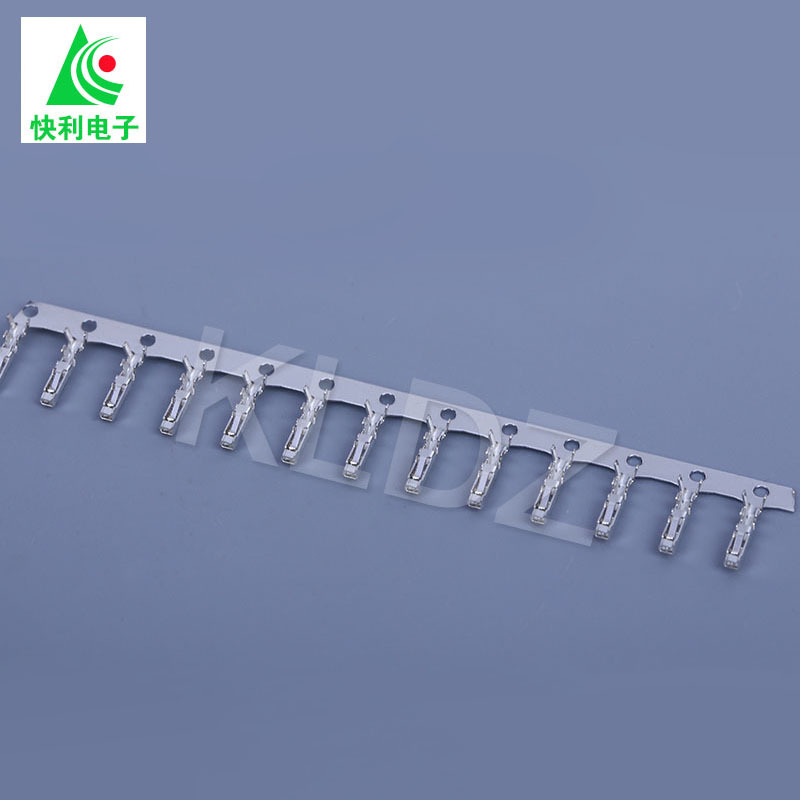

The crimp terminal block is equipped with 2 to 16 positions (2-16P), offering flexibility in configuration to match specific project needs. The JST-style connector ensures compatibility with various crimp terminals, which are designed for ease of installation, reliability, and durability. This connection method smalls the risk of loose connections and enhances overall safety in industrial environments.
Additionally, the CB Series terminal block is designed to meet high-performance standards, making it well-suited for use in power electronics, industrial automation, machinery control systems, and more. Its robust construction guarantees long-lasting performance, even in harsh conditions, while providing a stable connection for electrical circuits in demanding applications.
The CB Series 2.0mm Crimp Terminal Block 2-16P High-Density Barrier Strip JST-Style is an essential component for optimizing wiring systems in industrial and power electronics, offering high-density, secure, and reliable electrical connections.

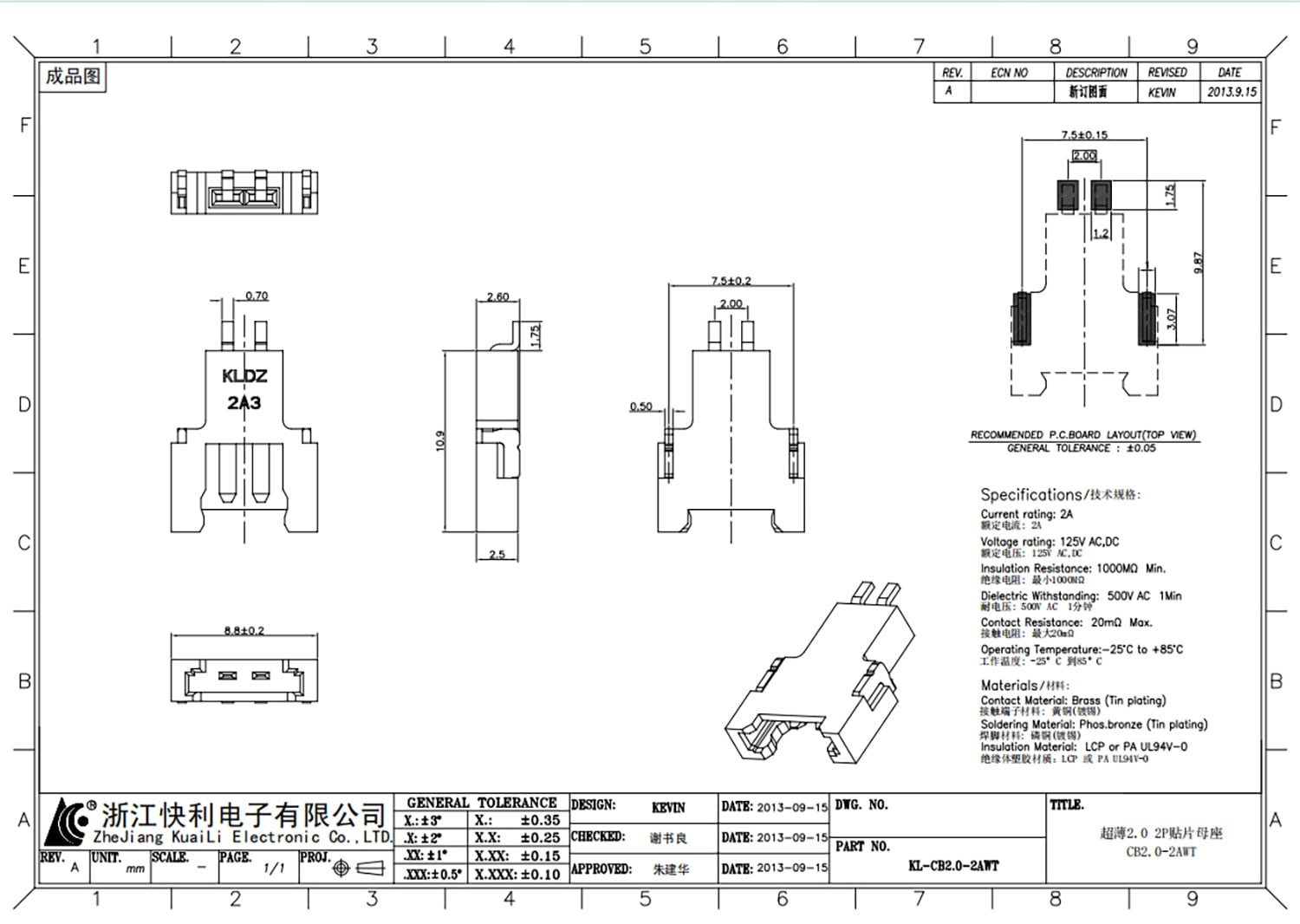

Specifications:
|
Product Category |
PCB |
|
Pitch (mm) |
2.0 |
|
Pin |
2-16P |
|
Current Rating |
2A |
|
Voltage Rating |
125V AC,DC |
|
Withstanding Voltage |
500V AC 1 Min |
|
Contact Resistance |
20mΩ Max |
|
Operating Temperature |
- 25°C ~ 85 °C |
|
Pin Material |
Brass (Tin Plating) |
|
Housing Material |
LCP or PA UL94V-0 |
Basic Info.
|
Model NO. |
CB2.0-NAWT |
Application |
PCB |
|
Certification |
CE,ISO9001 ,ROHS Reach,CQC, PAHS,TSCA,PAES |
Terminal Material |
Phosphor Bronze with Tin or Gold Plating |
|
Services |
ODM/OEM |
Color |
White/Beige |
|
Market |
Asia, America, Europe, Mid-East, Africa |
Main Products |
Connector, Terminal, PCB Connector |
|
Package |
Tape Reel |
Sample |
Free |
|
Delivery Time |
Stock goods within 1 day, Customized 7 days |
Terms of Trade |
EXW, FOB, CIF, CPT |
|
Specification |
Electrical terminal Connector |
Trademark |
KUAILI |
|
Origin |
Zhejiang, China (Mainland) |
HS Code |
8736909000 |
Production Equipment
|
Equipment Name |
QTY |
Origin |
|
Injection Molding Machine |
64 |
China |
|
High-speed Stamping Press Machine |
37 |
Taiwan &Japan |
|
Automated Press-Fit Production Line |
103 |
China |
|
SMT Patch Packing Inspection Machine |
128 |
China |
|
Automated Tape-and-Reel Packaging |
20 |
China |
|
Fully Automatic Optical Counting Packing machine |
1 |
China |
|
Y-axis Inspection Machine |
8 |
Germany |
|
Sodick EDM Machine |
3 |
China |
|
Sodick Wire EDM Machine |
3 |
China |
Specification:
