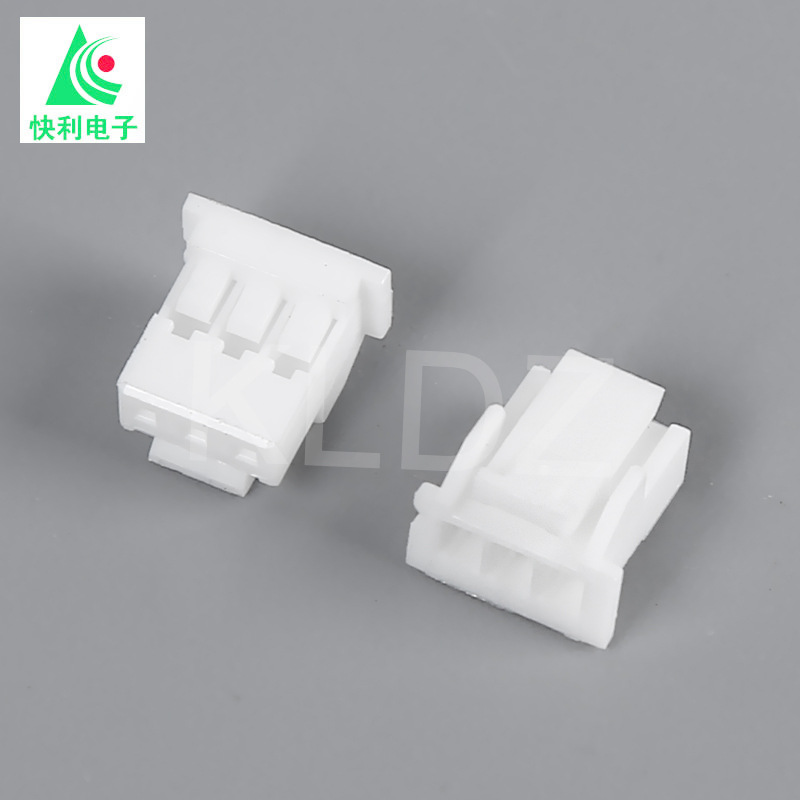

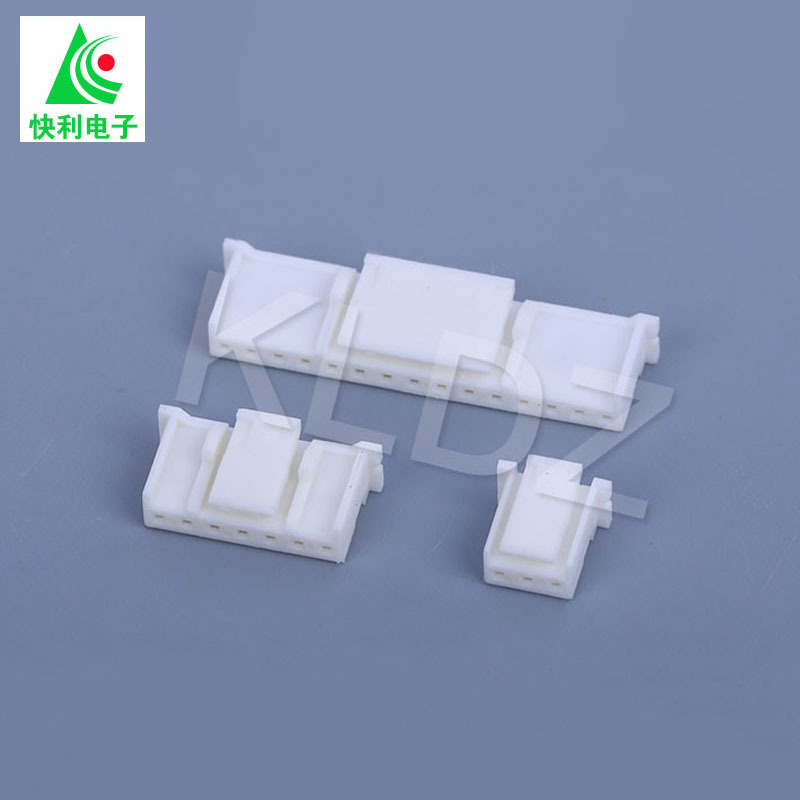

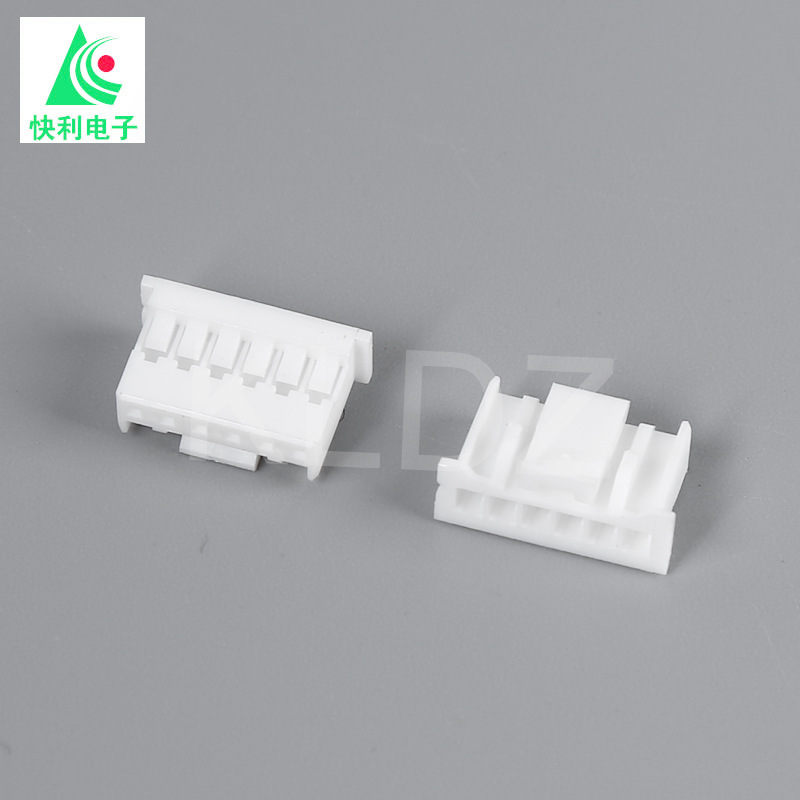

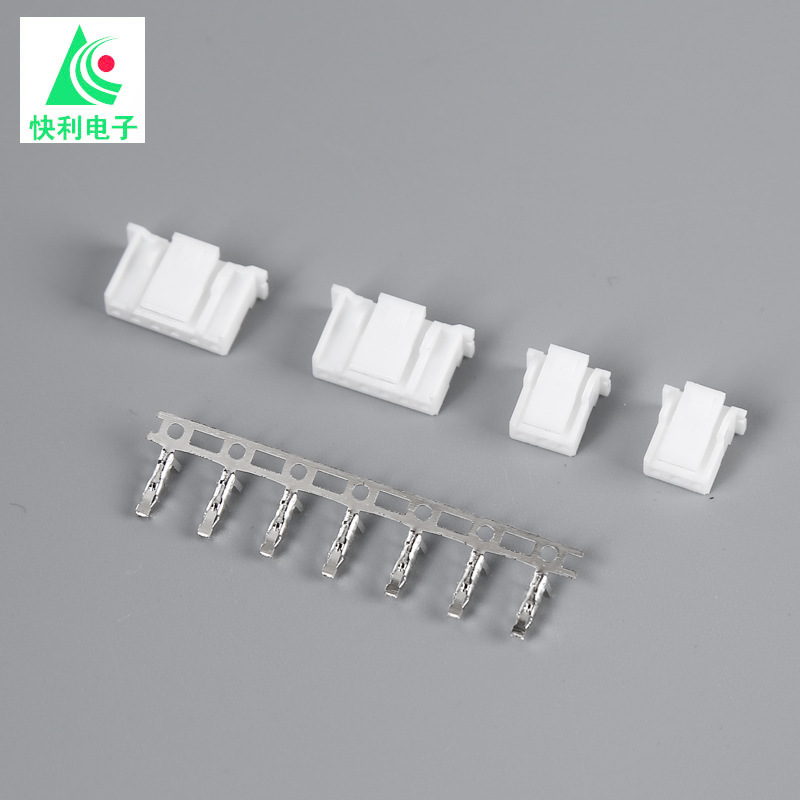

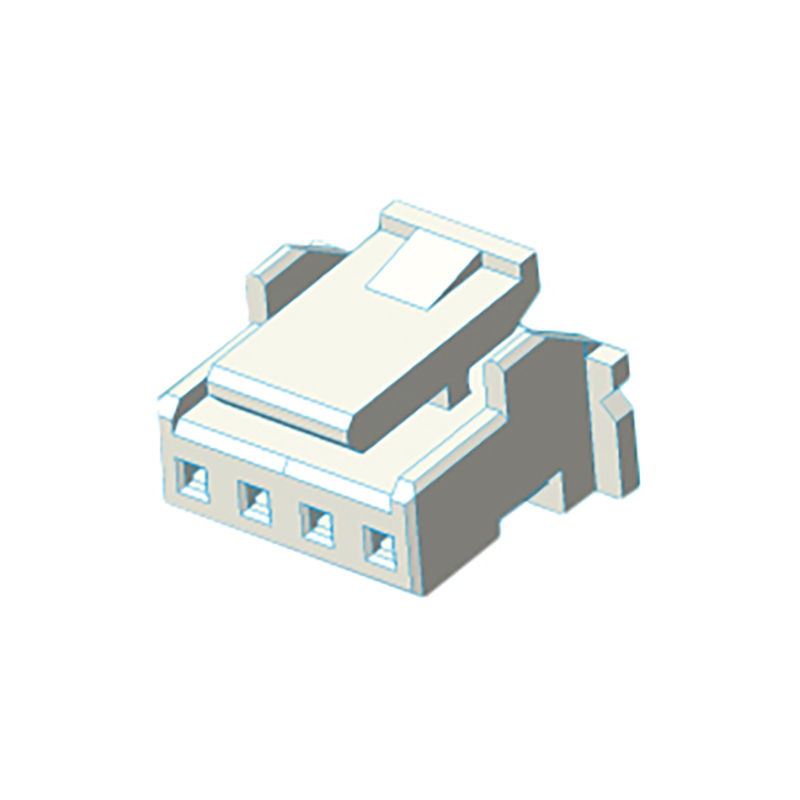

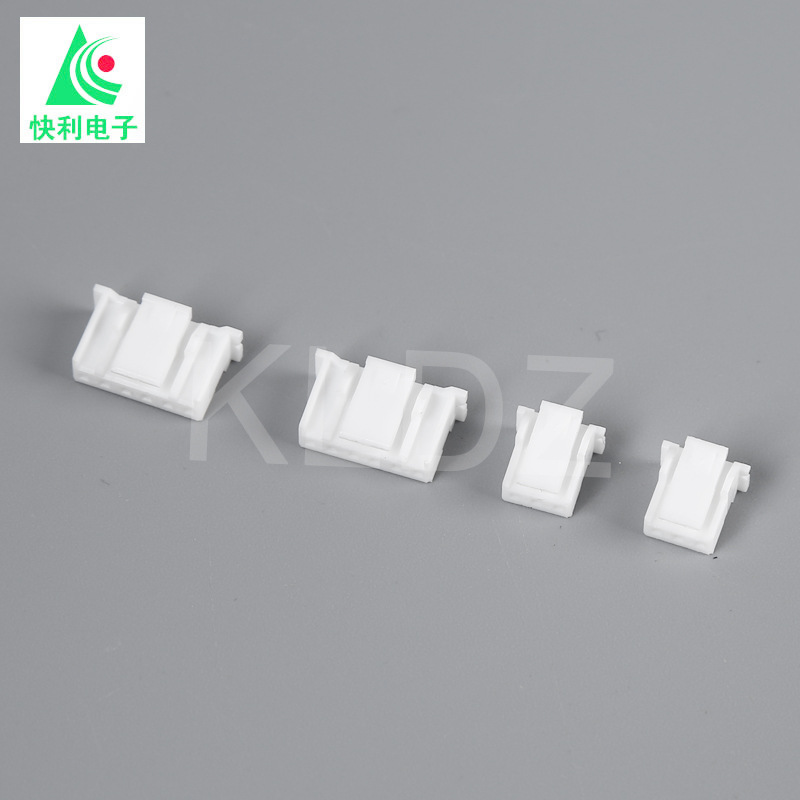

JST Molex Replacement PA Horizontal SMT Crimp Header Terminal Connector

Back List

PA-NAD High-Density Housing IP67 Latch-Type Socket Foolproof SMT Connector

PHB Series Automotive Wire to Board Connector
  • Product Description

+86 190 3206 8396

rainy@yqkl.com

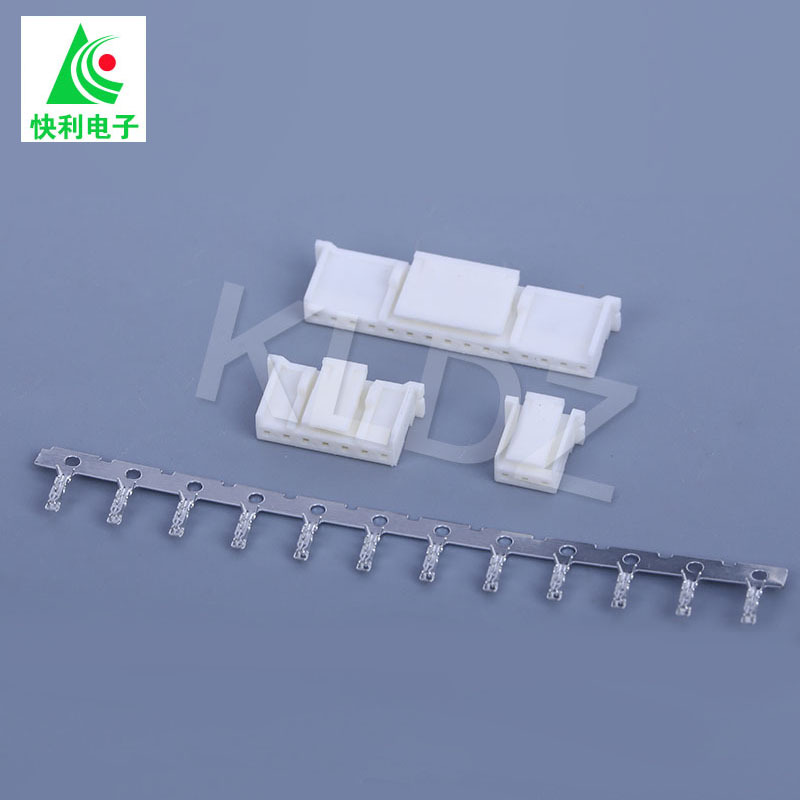

The PAP-02V-S JST Molex replacement PA 2.0mm Horizontal SMT Crimp Header Terminal Connector is an advanced and versatile connector solution designed to meet the needs of modern electronic systems. With a 2.0mm pitch, this connector is ideal for applications where space is limited but secure, reliable, and high-performance connections are essential. Its horizontal SMT (Surface-Mount Technology) design allows for easy integration into compact circuit boards, making it suitable for various industries, including consumer electronics, industrial automation, and telecommunications.

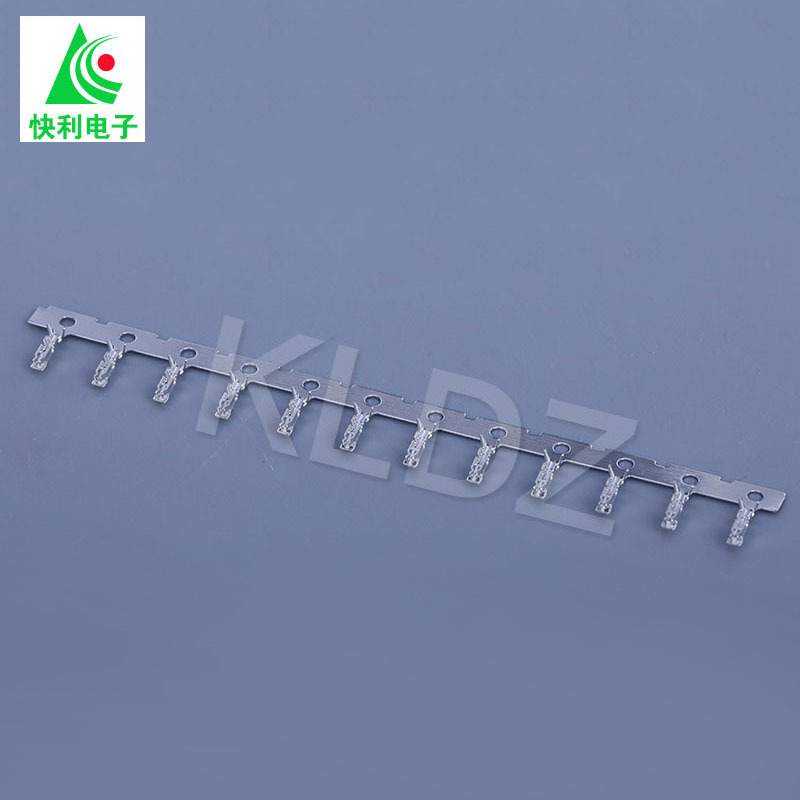

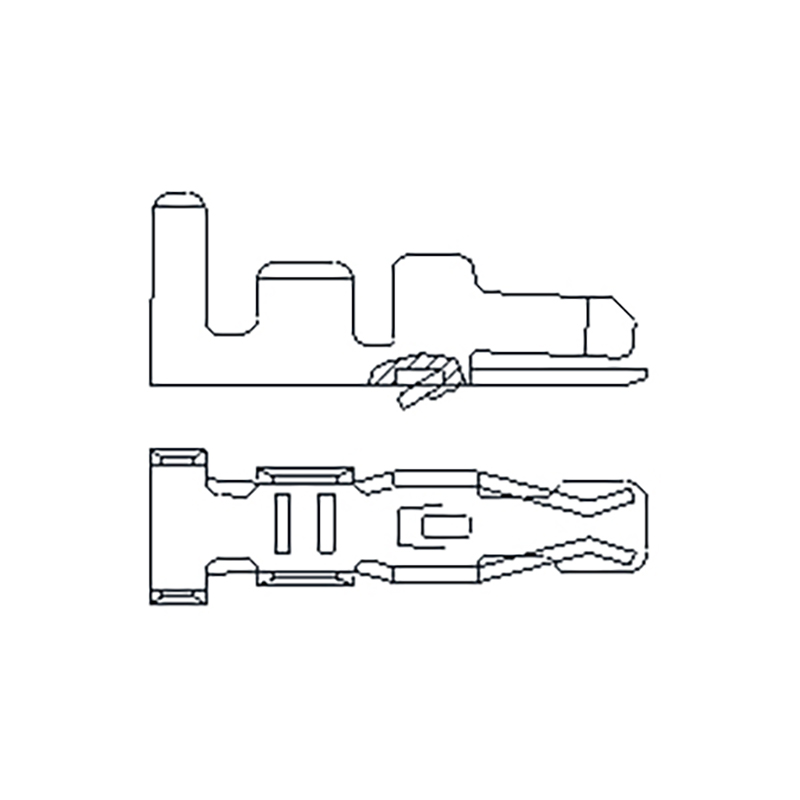

This connector serves as a direct replacement for JST and Molex connectors, offering a seamless transition with improved compatibility and performance. It features crimp terminals, which are known for their reliability and ease of use in creating strong, secure electrical connections. The crimp method ensures a stable and durable connection, the risk of connection failures over time. Additionally, the connector is designed to handle a wide range of wire sizes, further enhancing its versatility.

The PA 2.0mm Horizontal SMT Crimp Header is built to withstand the rigors of everyday electronic applications, offering good durability and resistance to environmental factors such as temperature fluctuations and vibrations. Its design ensures ease of installation, saving time during assembly while providing a robust and long-lasting connection. The compact and high-density layout bigs space efficiency, making it an ideal choice for applications with tight design constraints.

The PAP-02V-S JST Molex replacement PA 2.0mm Horizontal SMT Crimp Header Terminal Connector offers a reliable, high-performance solution for modern electronics. With its compatibility with JST and Molex systems, durable construction, and efficient design, it is a trusted choice for ensuring stable, secure electrical connections in a variety of applications.

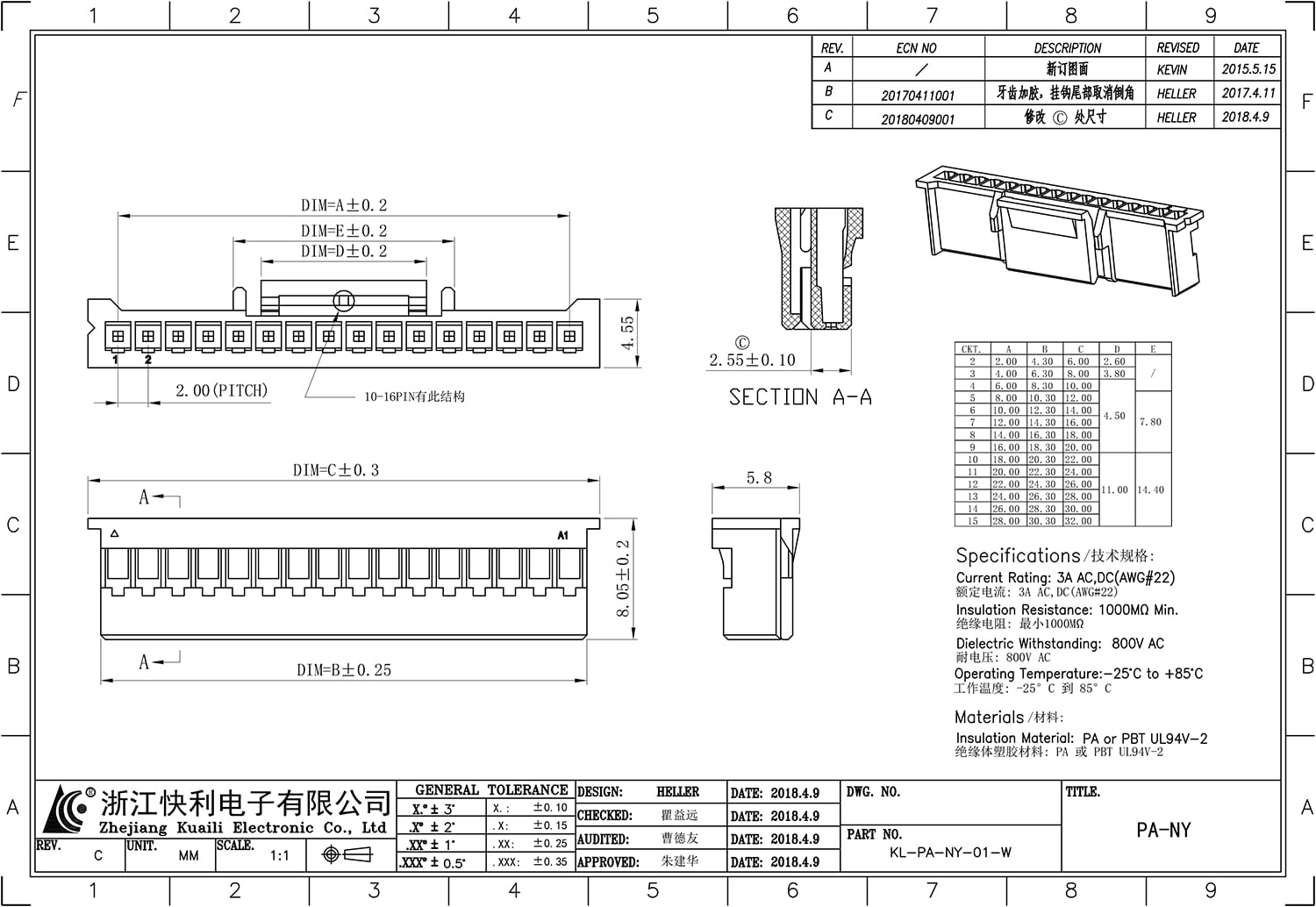

Specifications:



Product Category

PCB

Pitch (mm)

2.0

Pin

2-16P

Current Rating

3A

Voltage Rating

250V AC,DC

Withstanding Voltage

800V AC  1 Min

Contact Resistance

20mΩ Max

Operating Temperature

- 25°C  ~  85 °C

Pin Material

Brass (Tin Plating)

Housing Material

PA or PBT UL94V-0



Basic Info.



Model NO.

PA-NY

Application

PCB

Certification

CE,ISO9001 ,ROHS Reach,CQC, PAHS,TSCA,PAES

Terminal Material

Phosphor Bronze with Tin or Gold Plating

Services

ODM/OEM

Color

White/Beige

Market

Asia, America, Europe, Mid-East, Africa

Main Products

Connector, Terminal, PCB Connector

Package

Tape Reel

Sample

Free

Delivery Time

Stock goods within 1 day, Customized 7 days

Terms of Trade

EXW, FOB, CIF, CPT

Specification

Electrical terminal Connector

Trademark

KUAILI

Origin

Zhejiang, China (Mainland)

HS Code

8736909000



Production Equipment



Equipment Name

QTY

Origin

Injection Molding Machine

64

China

High-speed Stamping Press Machine

37

Taiwan &Japan

Automated Press-Fit Production Line

103

China

SMT Patch Packing Inspection Machine

128

China

Automated Tape-and-Reel Packaging

20

China

Fully Automatic Optical Counting Packing machine

1

China

Y-axis Inspection Machine

8

Germany

Sodick EDM Machine

3

China

Sodick Wire EDM Machine

3

China
