Molex-Alternative ZH 1.5mm Barrier Strip Connector Horizontal Pin Header

The Molex-Alternative ZH 1.5mm Barrier Strip Connector with Horizontal Pin Header and Reverse Polarity Protection is a compact and reliable wire-to-board solution designed for space-sensitive applications that demand secure electrical connections and enhanced safety features. This connector serves as a compatible alternative to the Molex ZH series, providing comparable performance with additional value for OEM and ODM solutions.

With a 1.5mm pitch, this connector is ideal for high-density PCB layouts, offering a balance between compact design and ease of assembly. The horizontal pin header configuration allows for low-profile mounting, optimizing vertical space within the device and ensuring a clean, efficient board layout. This makes the connector well-suited for LED lighting, consumer electronics, battery packs, and portable devices.

A standout feature of this ZH connector is its reverse polarity protection, which helps prevent improper mating and potential electrical damage. The barrier strip design further reinforces connection security by providing physical separation between terminals, reducing the risk of short circuits and improving overall reliability in harsh or high-vibration environments.

The connector is constructed from durable insulating materials and features precision-engineered contact surfaces for stable electrical performance and long-term durability. It supports crimp-style terminals, allowing for strong and consistent connections during both manual and automated wire assembly processes.

The ZH 1.5mm Barrier Strip Connector with Horizontal Pin Header and Reverse Polarity Protection is a practical and dependable Molex alternative. It offers a compact footprint, added safety features, and easy integration into a wide range of electronic products requiring high-density, low-profile interconnects with reliable protection.

Specifications:

Basic Info.

Production Equipment

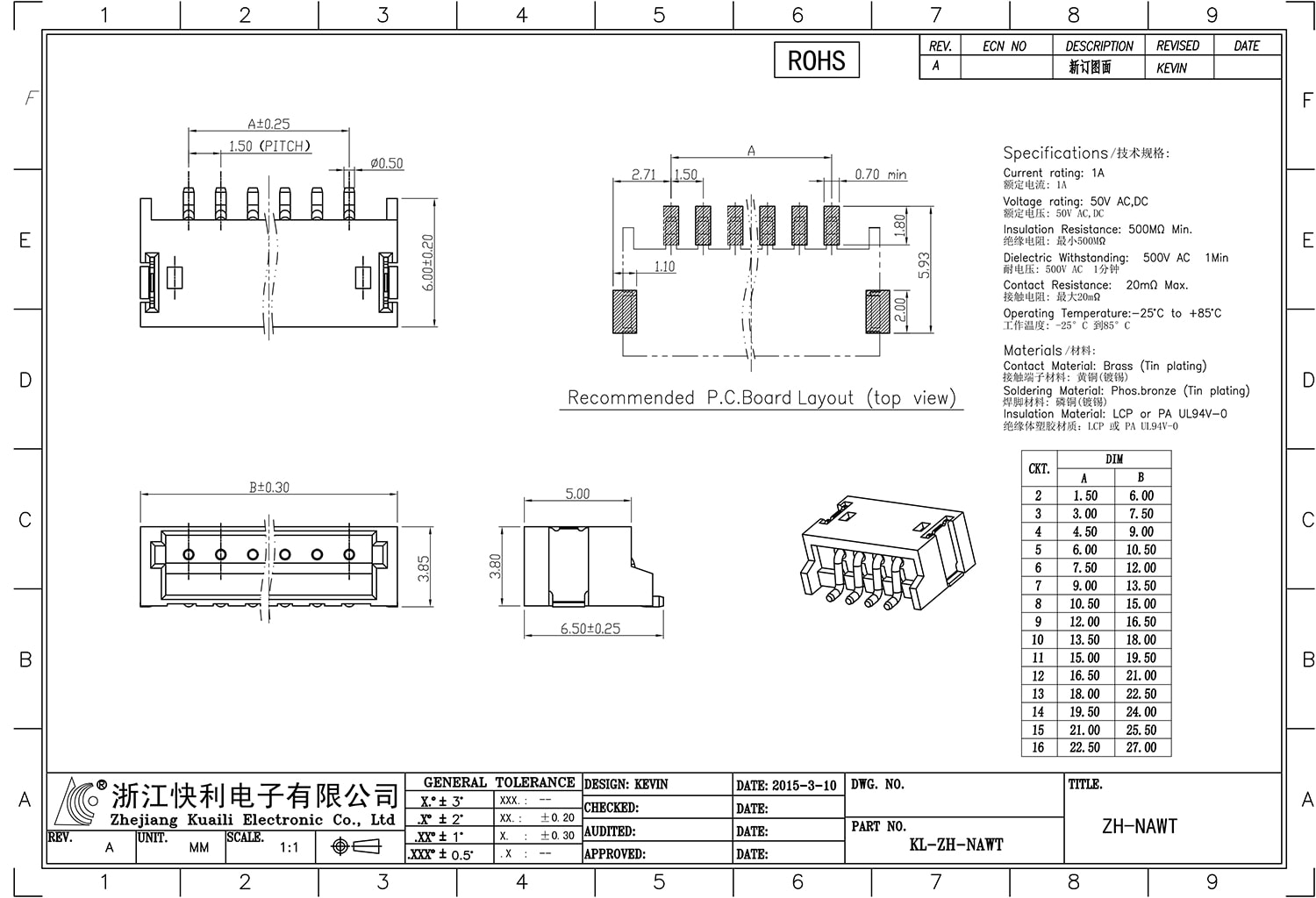

Specification:
