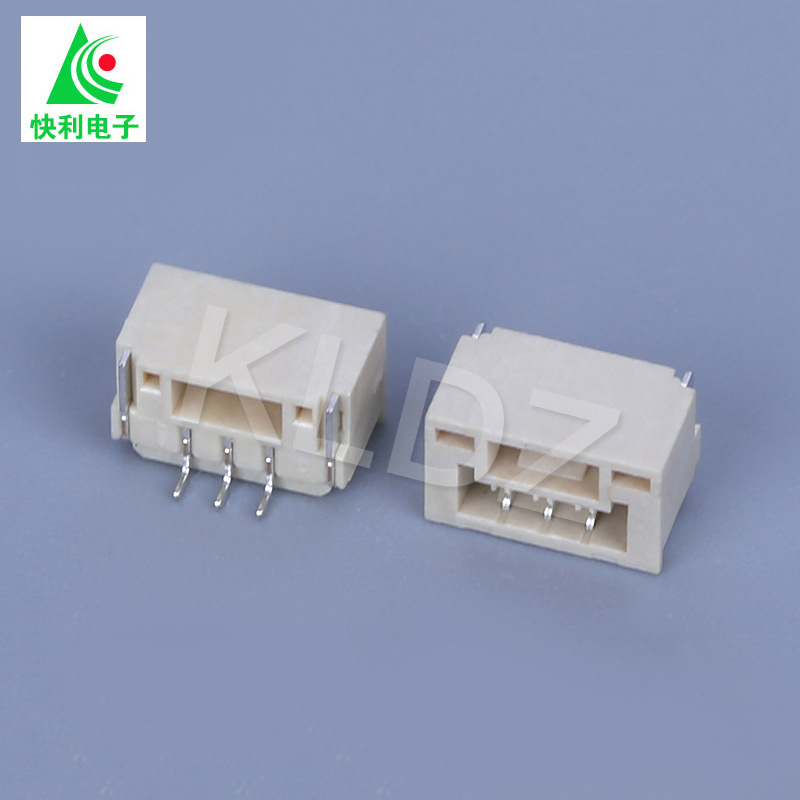

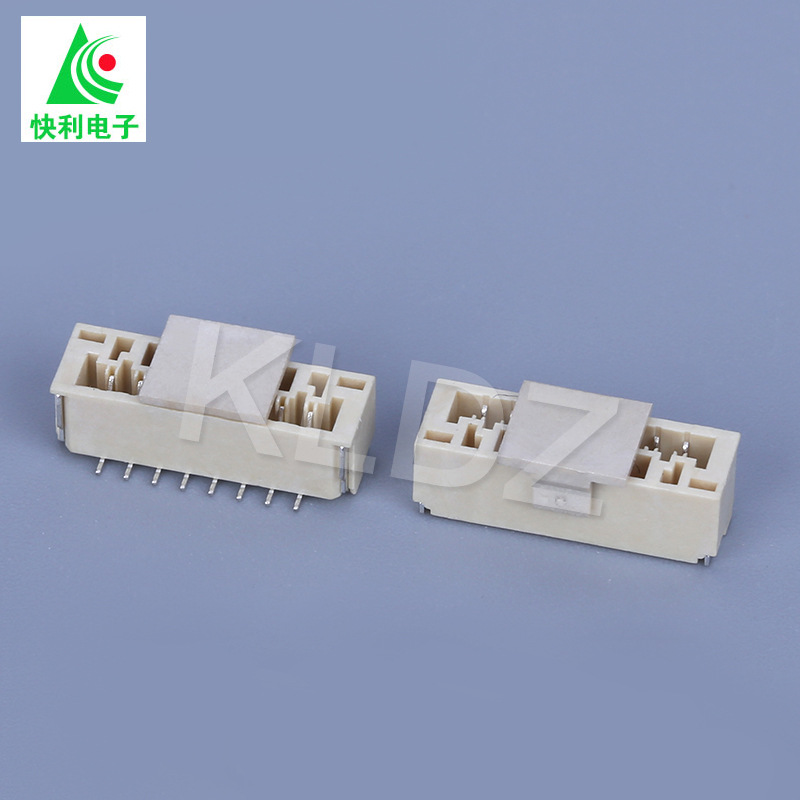

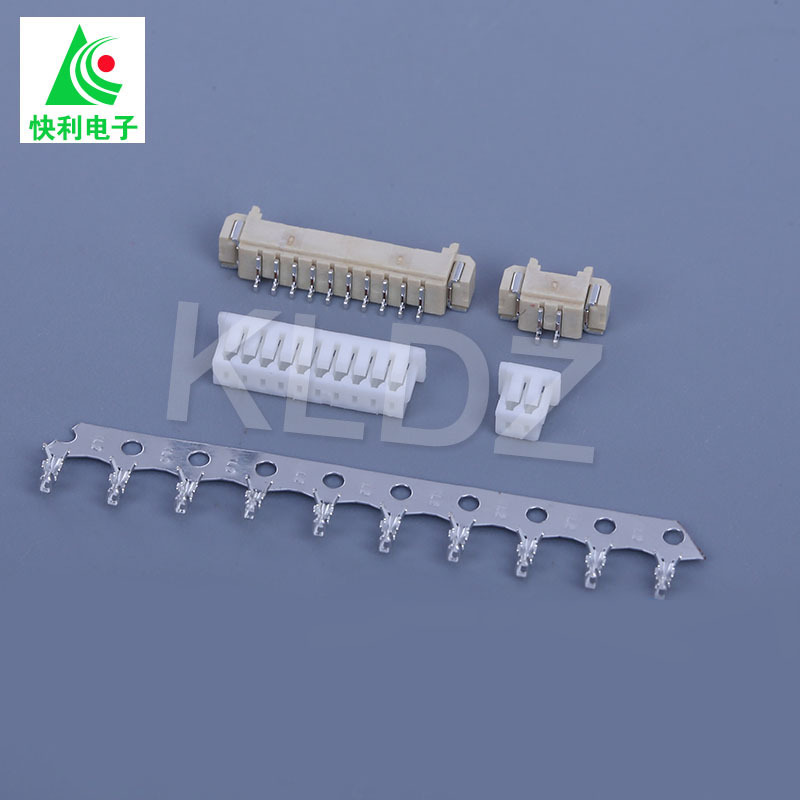

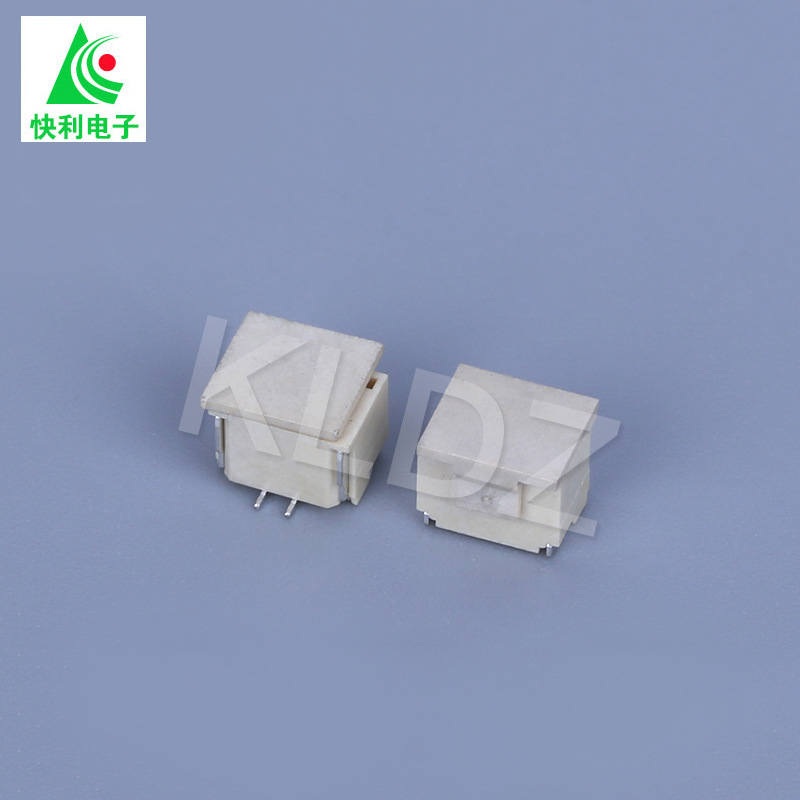

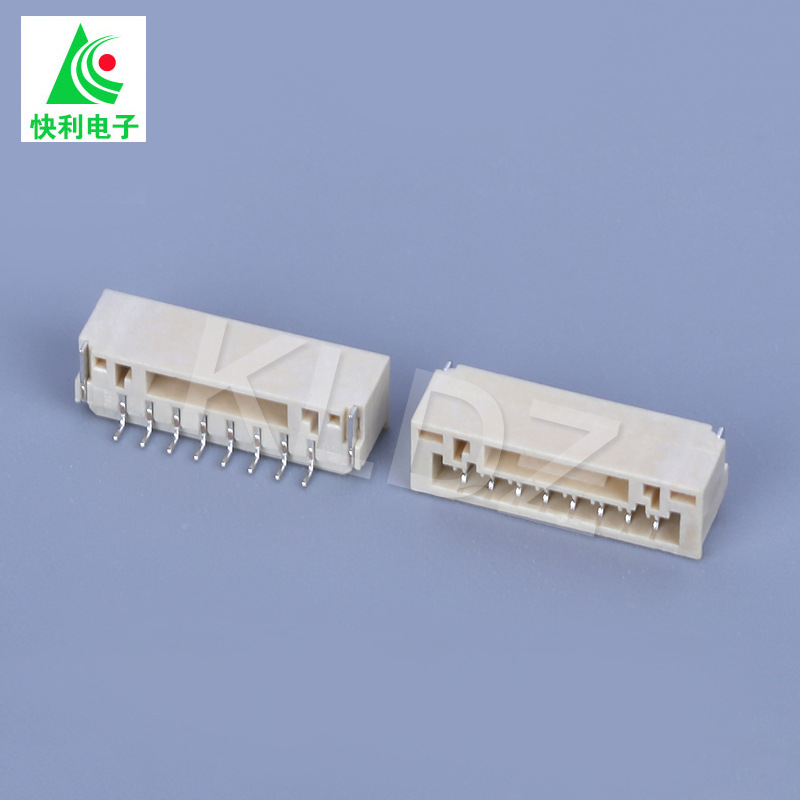

1.25mm Horizontal 2-20P Dual-Row Connector Reverse-Polarity Plastic Housing JST-Style Barrier Strip

The 1.25mm Horizontal 2-20P Dual-Row Connector with Reverse-Polarity Plastic Housing is a high-performance, space-efficient interconnect solution designed for industrial and medical devices. This connector features a dual-row configuration, supporting 2 to 20 positions for secure and organized connections in compact spaces, making it ideal for high-density electronic applications.

With a 1.25mm pitch, this connector offers an ideal balance of compactness and electrical performance, allowing for tight spacing between pins without sacrificing signal integrity. The horizontal orientation ensures low-profile mounting, which is particularly beneficial for designs with height restrictions or in environments where small space is critical.

One of the standout features of this connector is its reverse-polarity protection, which prevents incorrect wiring and potential damage to the device. This safety feature is crucial for medical devices and industrial systems, where proper connections are critical to the reliability and safety of the equipment. The plastic housing is designed to withstand the demands of harsh environments, offering vibration resistance and mechanical stability, which is essential for devices exposed to constant motion or challenging operating conditions.

The JST-style barrier strip design further enhances the connector's reliability, providing clear separation between pins to reduce the risk of short circuits and ensuring a secure connection even in high-vibration applications. This connector is engineered for easy integration into automated assembly processes, reducing labor time and increasing production efficiency.

The 1.25mm Horizontal 2-20P Dual-Row Connector with Reverse-Polarity Plastic Housing is a versatile and reliable choice for industrial and medical devices. Its space-saving design, reverse-polarity protection, and robust construction make it a trusted solution for ensuring secure, long-lasting connections in demanding environments.

Specifications:

Basic Info.

Production Equipment

Specification:
